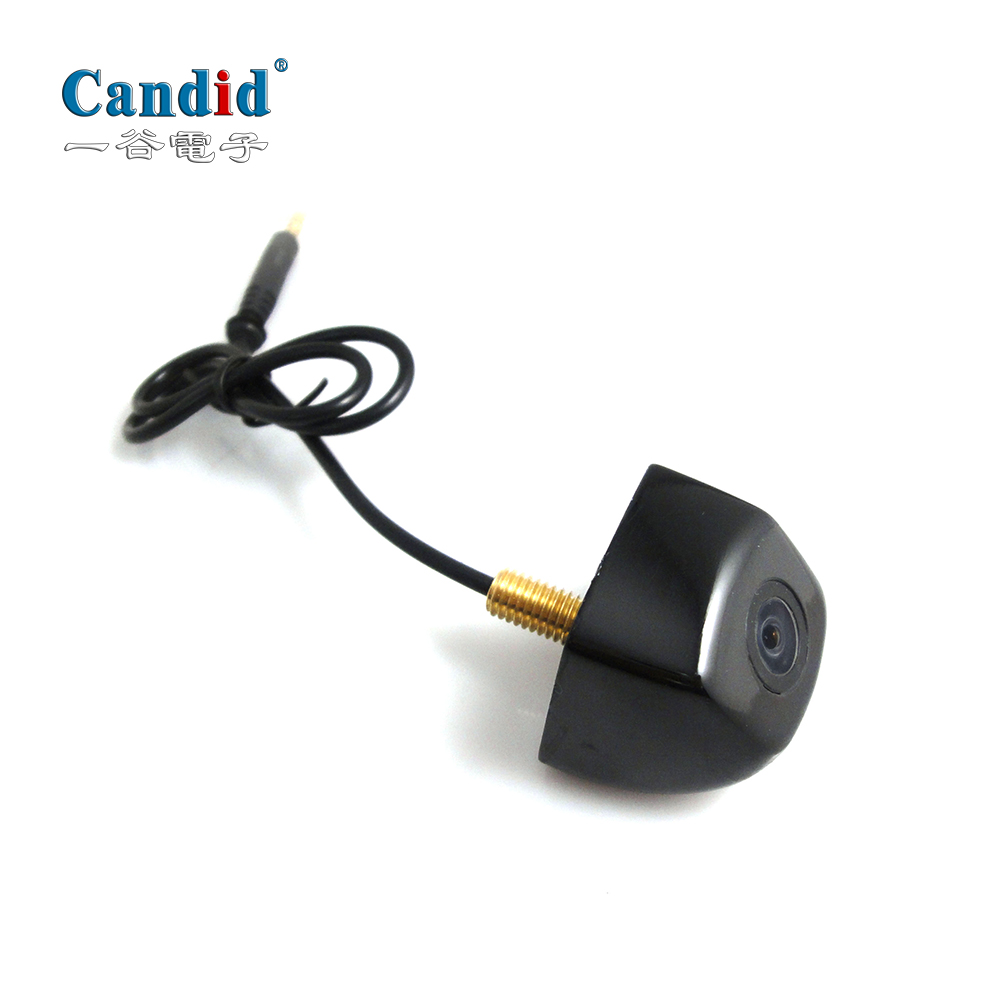

Universal Mini Camera for Passenger Vehicle CA-401
Universal drilling camera for passenger vehicles, designed to enhance driving safety and convenience.
Features

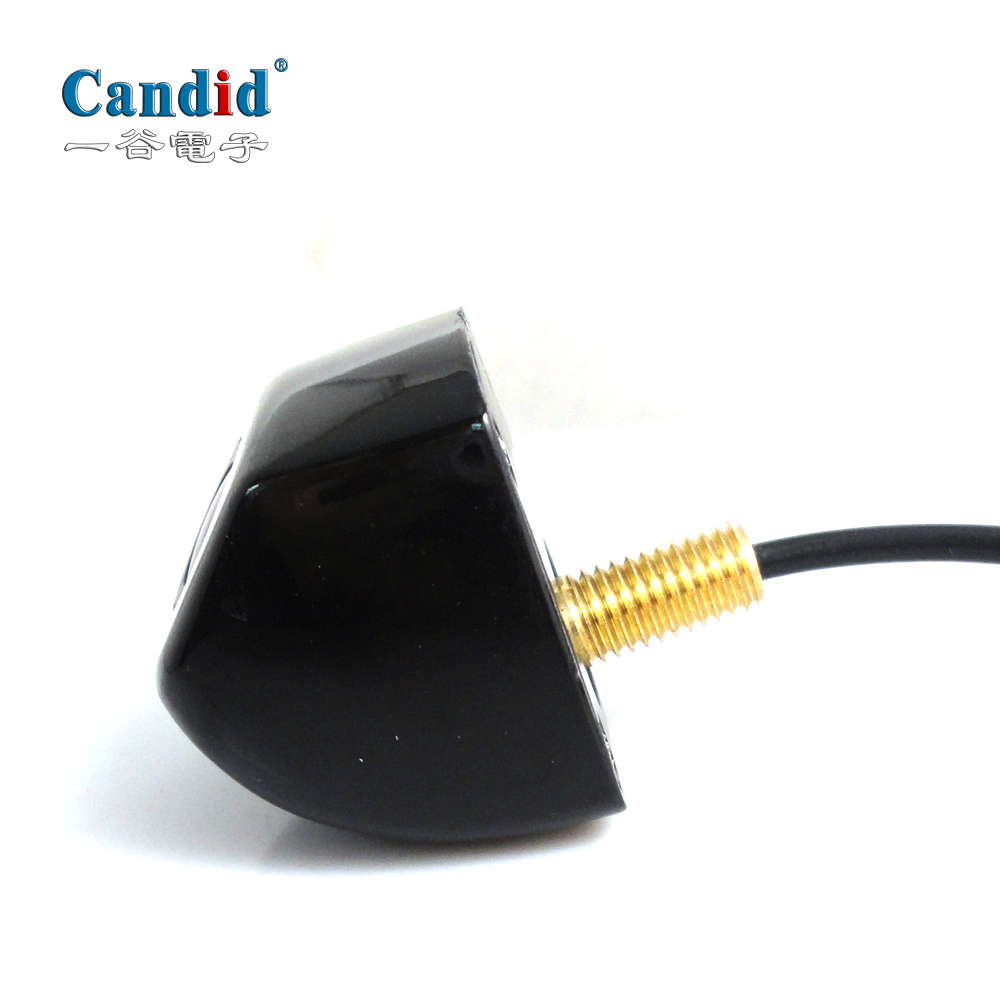

1.Install with drilling holes
2.High definition

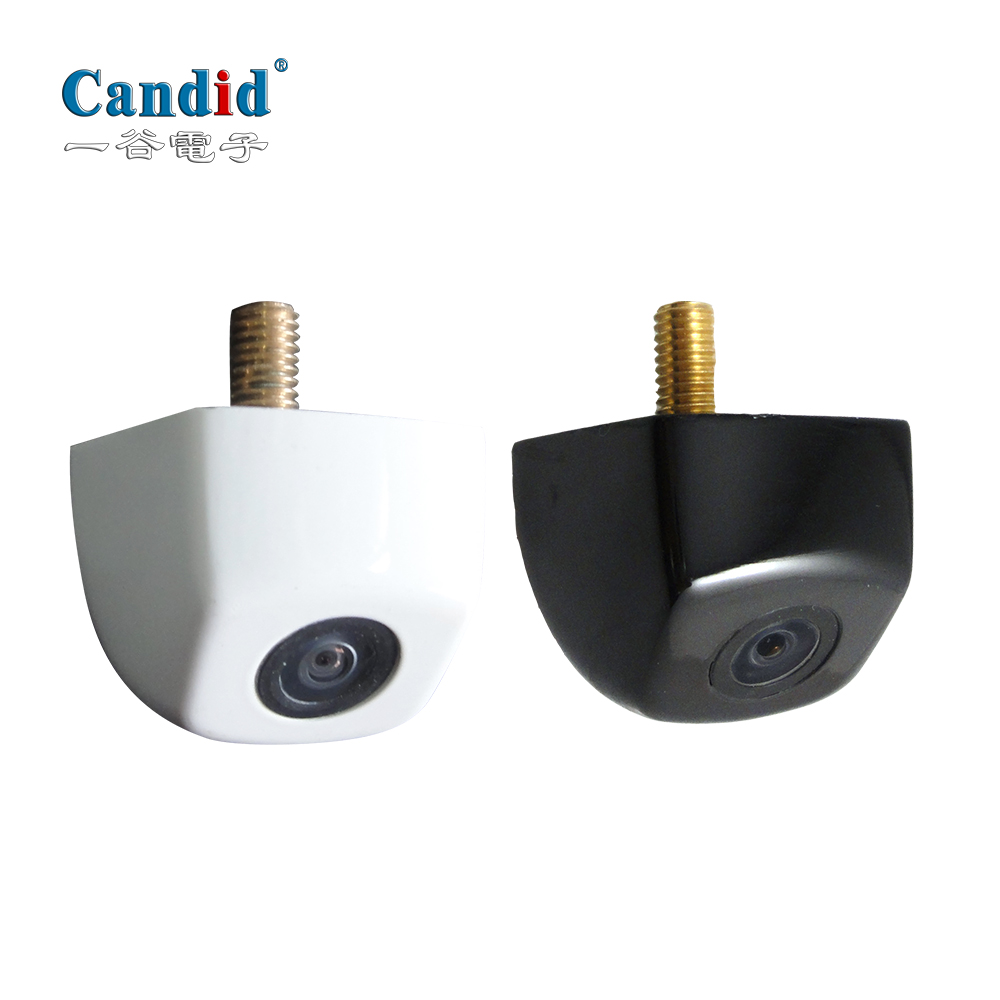

3.Wide angle 120 degrees
4.IP68 waterproof
Specifications
| Signal | CVBS |
| TV Mode | NTSC/PAL |
|
Image Sensor |
1/3 inch |
|
Operation voltage range |
DC12V(6-16V) |
|
Working current |
30.5mA±10mA |
|
Power Consumption |
0.462W@ DC12 V |
|
Video Output |
1±0.2 Vpp 75Ω |
| Pixsls | 756*504 |
|
Useful Pixels |
720*480 |
| Camera Resolution | 340K |
| Angle | 120 |
|
Minimum lllomination |
0.4Lux |
| WDR | 62.9dB |
| Signal to Noise ratio | 47.1dB |
| Gamma value | 0.45 |
| Shutter Speed | Auto |
| White Balance | Auto |
| AGC | Auto |
|
Waterproofing grade |
IP68 |
|
Operation Humidity |
85 RH% |
|
Operation Temperature |
-20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |
