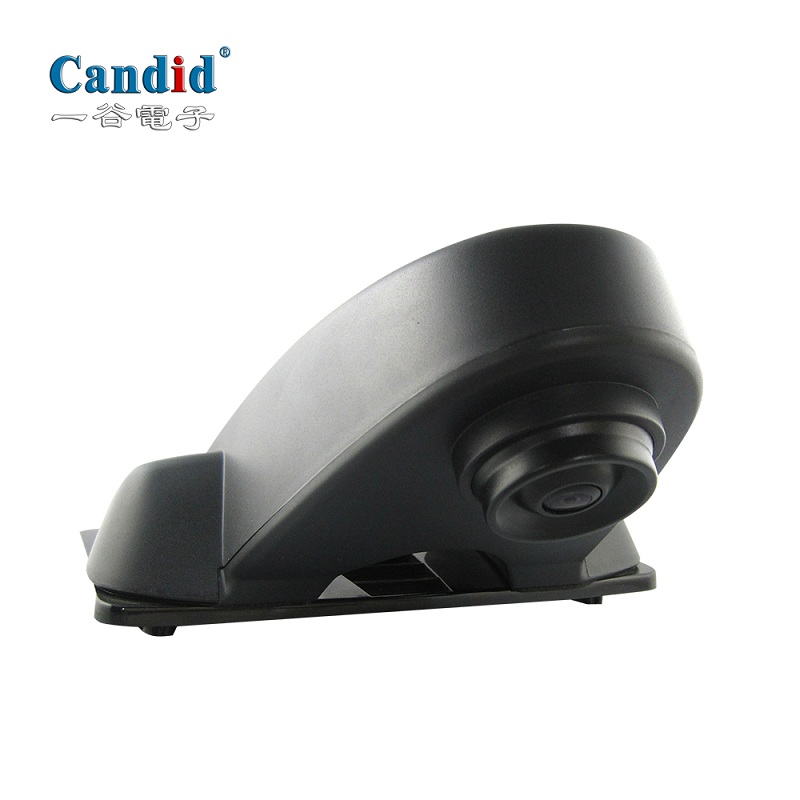

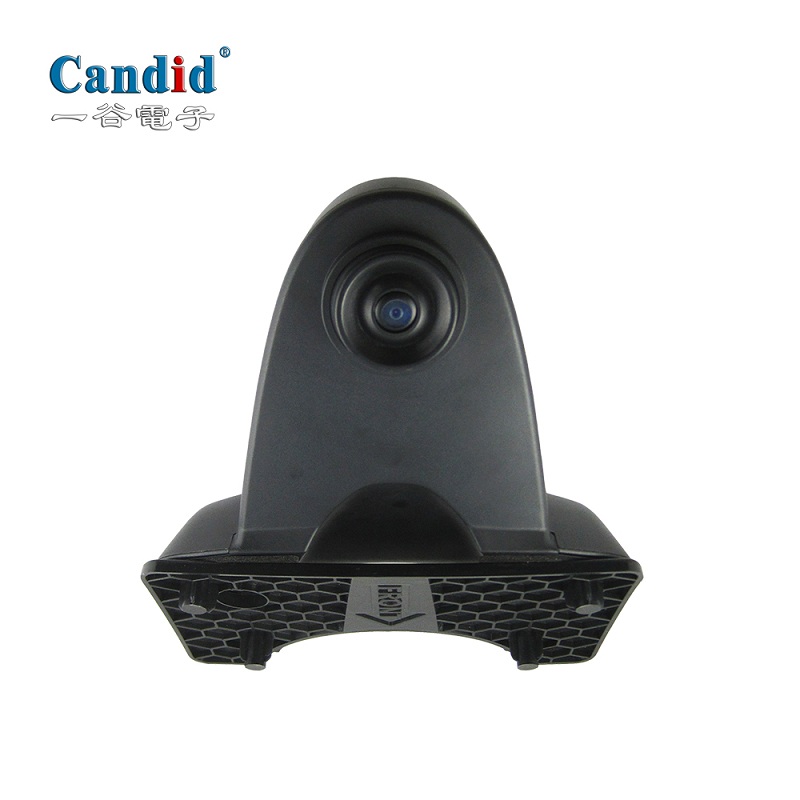

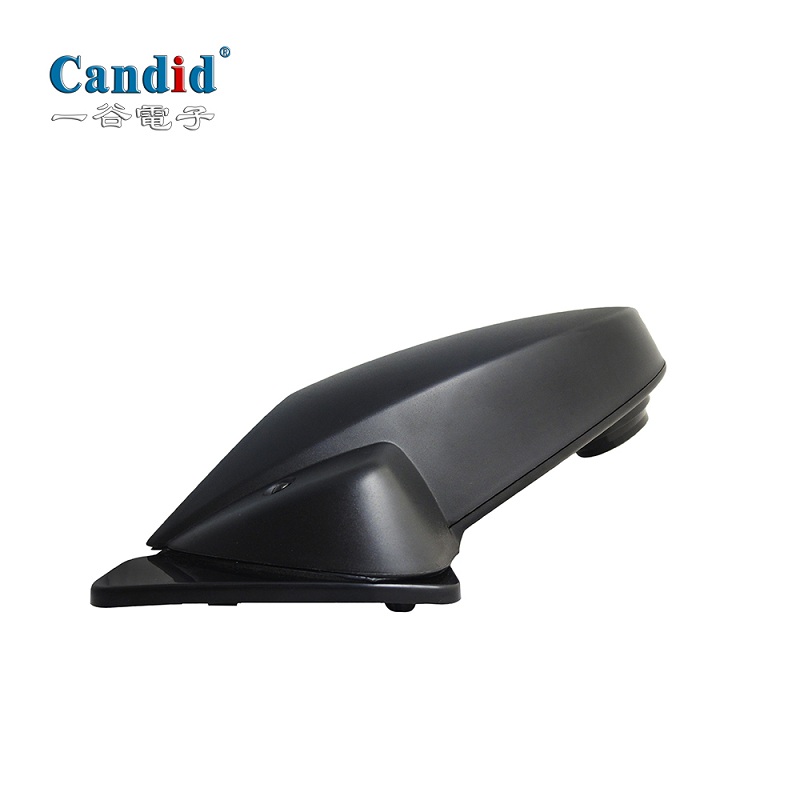

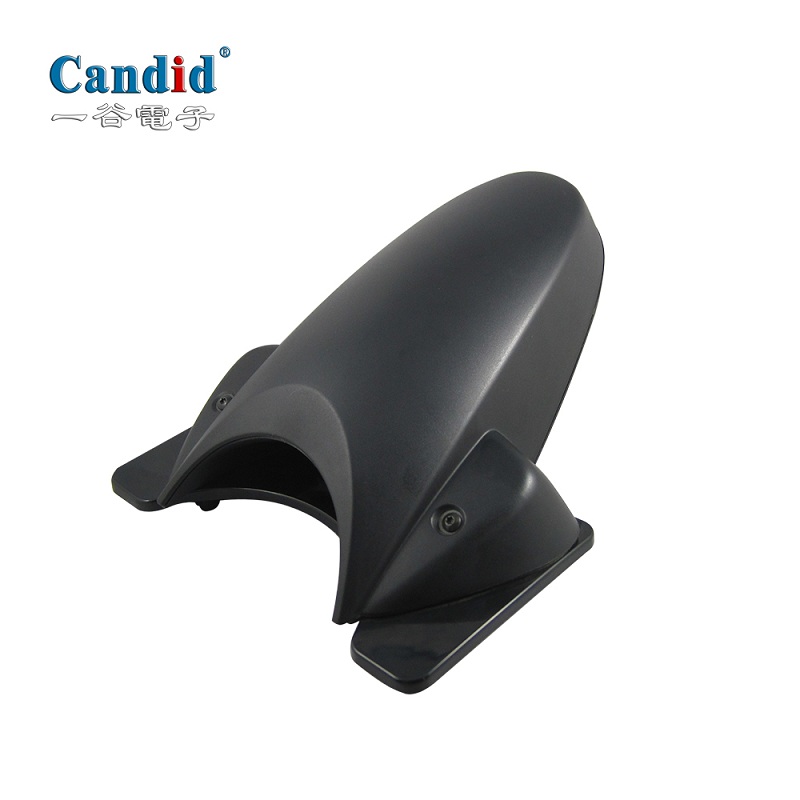

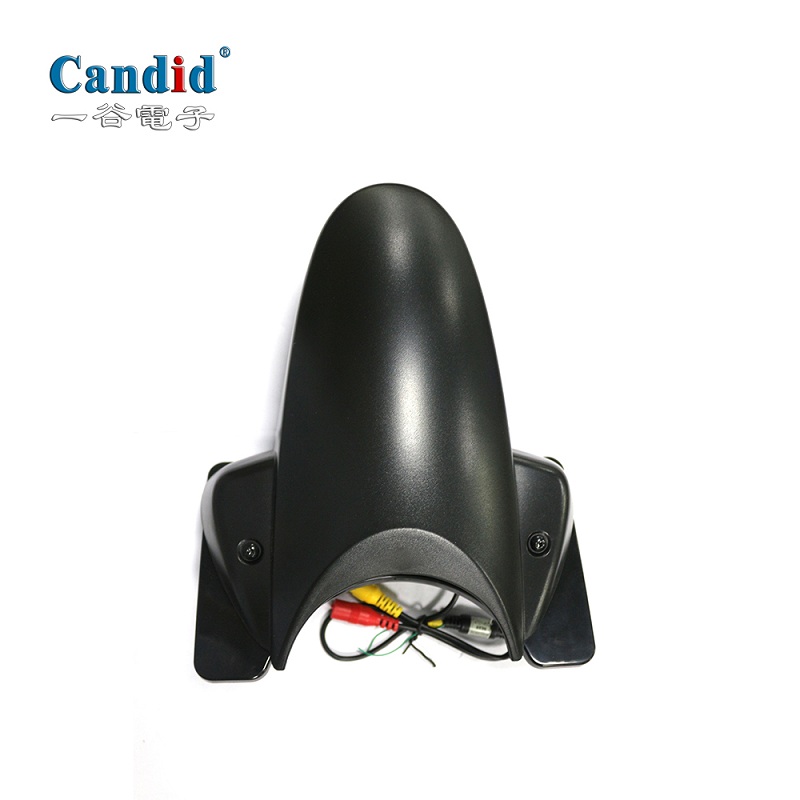

Universal Camera T-008
Features:
This rear view camera features an OE quality standard FHD camera with 1080P high definition image output, with waterproof level of IP69K, and with night vision, this compact camera fits for RV perfectly.
This rear view camera features an OE quality standard FHD camera with 1080P high definition image output, with waterproof level of IP69K, and with night vision, this compact camera fits for RV perfectly.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
Features
1080P high definition image output
6 layors of glass lens materials
1/2.8" super AHD CCD sensor
waterproof level: IP69K
ultra low light performance
wide field of view, different viewing angle optional
customized design for easy installation
Mirror/Normal image switchable
super starry night vision function
commercial vehicle monitoring cameras
6 layors of glass lens materials
1/2.8" super AHD CCD sensor
waterproof level: IP69K
ultra low light performance
wide field of view, different viewing angle optional
customized design for easy installation
Mirror/Normal image switchable
super starry night vision function
commercial vehicle monitoring cameras
Specifications
| Image sensor | SONY IMX307 (AHD) |
| TV Mode | PAL/NTSC |
| Image Sensor | 1/2.8" SONY CCD |
| Operation voltage range | DC12V(7.5-16V) |
| working current | 94mA±10mA |
| Power Consumption | 1.128W@DC12V |
| Video Output | 1.3±0.2Vpp 75Ω |
| Pixels | |
| USEFUL PIXELS | 1920*1080 |
| Minimum lllumination | 0.01 Lux |
| Wide Dynamic | 95dB |
| Signal to Noise ratio | 46dB |
| resolution ratio | 1080P |
| Gamma value | 0.45 |
| Lens angle | 130 degrees |
| Shutter Speed | 1/60~1/100,000（second） |
| IRIS Method | Auto |
| waterproof level | IP69 |
| white balance | Auto |
| AGC | Auto |
| Backlight compensation | Auto |
| Operation Humidity | 85 RH% |
| Operation Temperature | -20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |
Applications
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
