Solutions
12.3'' CMS System For Bus
Electronic Rearview Mirror
![](//v4-upload.goalsites.com/625/1717492527_12_3CMS-R46.jpg)
Certified by ECE R46
Meet the ECE R46 certification standard, and motor vehicle rearview mirrors can be exported to the markets of member countries of the Economic Commission for Europe.
![](//v4-upload.goalsites.com/625/1717492648_12_3CMS-Product(1).jpg)
01 Specification
02 Driving Safety
The 12.3-inch electronic rearview mirror is installed in the car, effectively preventing rain and mud from outside the car and replacing the physical rearview mirror.
![](//v4-upload.goalsites.com/625/1717493012_12_3CMS-night.jpg)
![](//v4-upload.goalsites.com/625/1717493104_12_3CMS-IP68.jpg)
03 Diversified installation solutions
There are many installation methods and can be applied to different solutions.
Solution A
![](//v4-upload.goalsites.com/625/1717493723_12_3CMS-solution A.jpg)

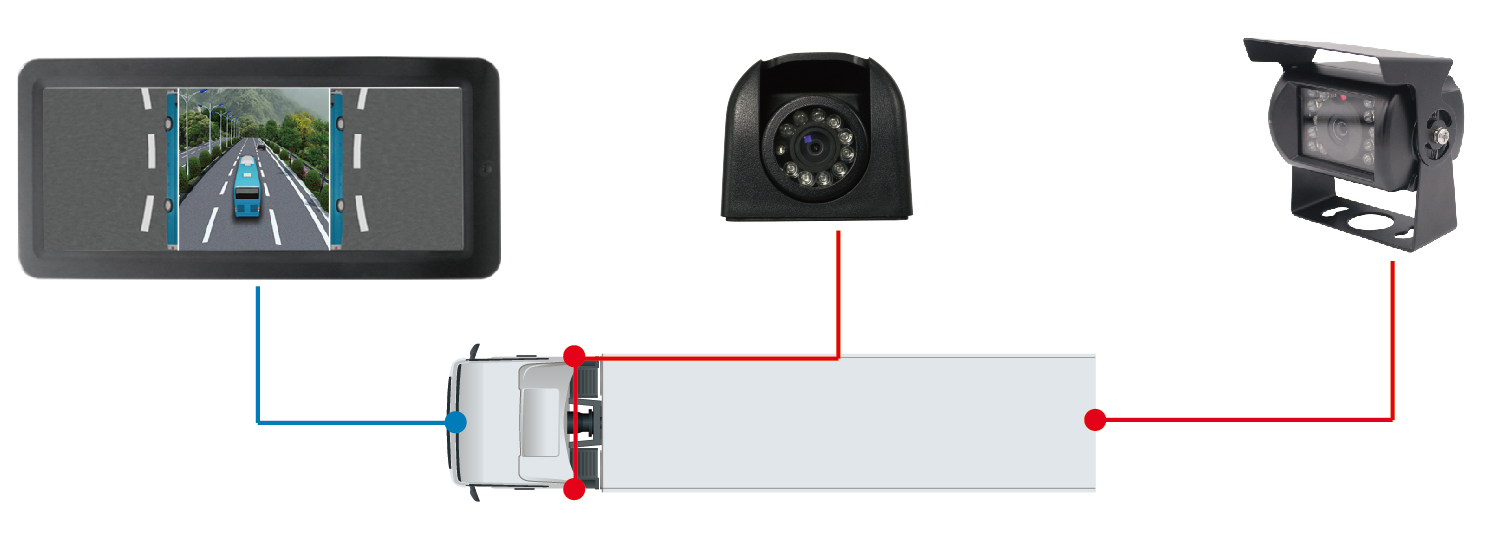

Solution B
![](http://v4-upload.goalsites.com/625/1717492527_12_3CMS-R46.jpg)

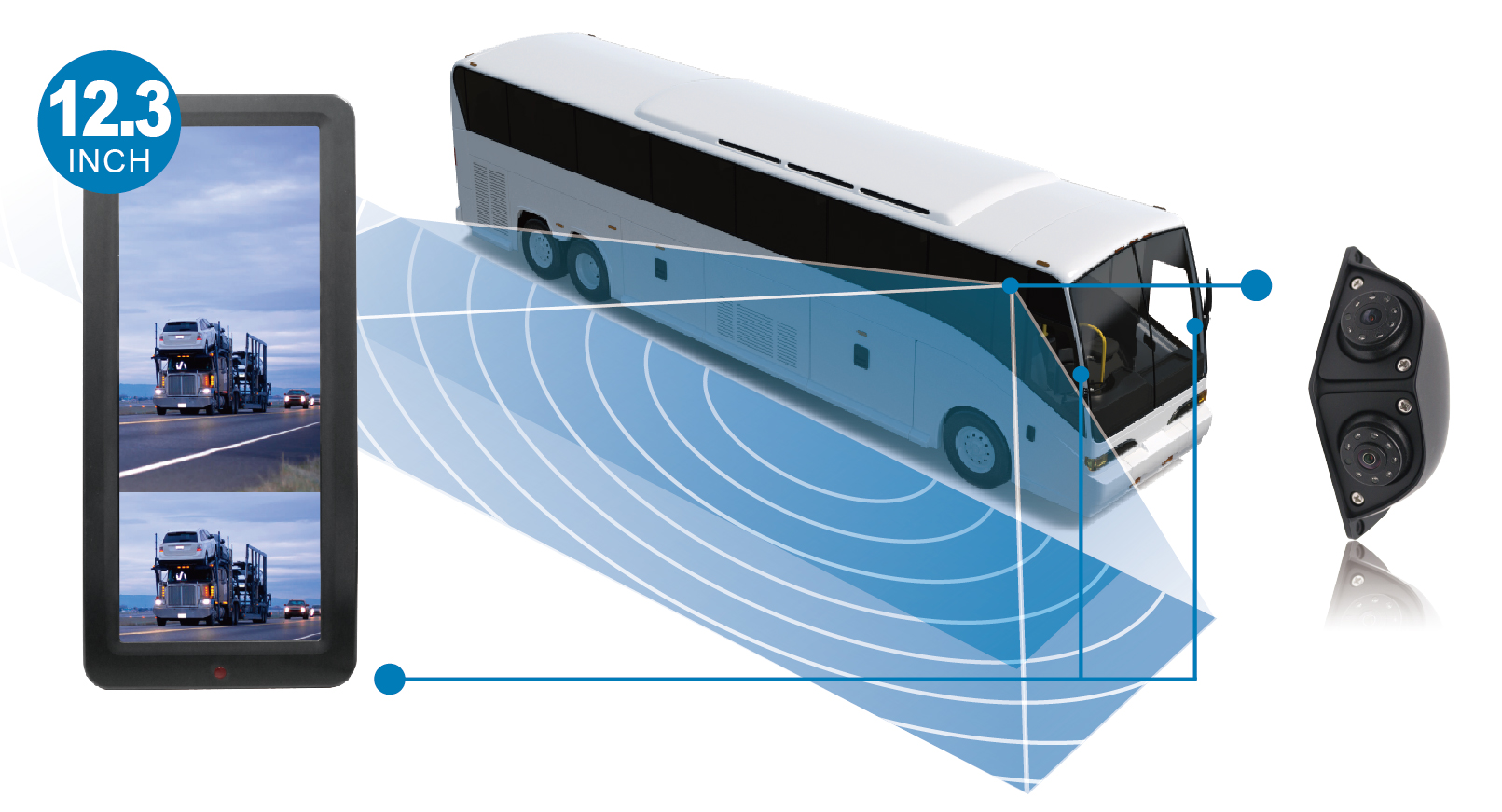

Certified by ECE R46
Meet the ECE R46 certification standard, and motor vehicle rearview mirrors can be exported to the markets of member countries of the Economic Commission for Europe.
![](http://v4-upload.goalsites.com/625/1717492648_12_3CMS-Product(1).jpg)

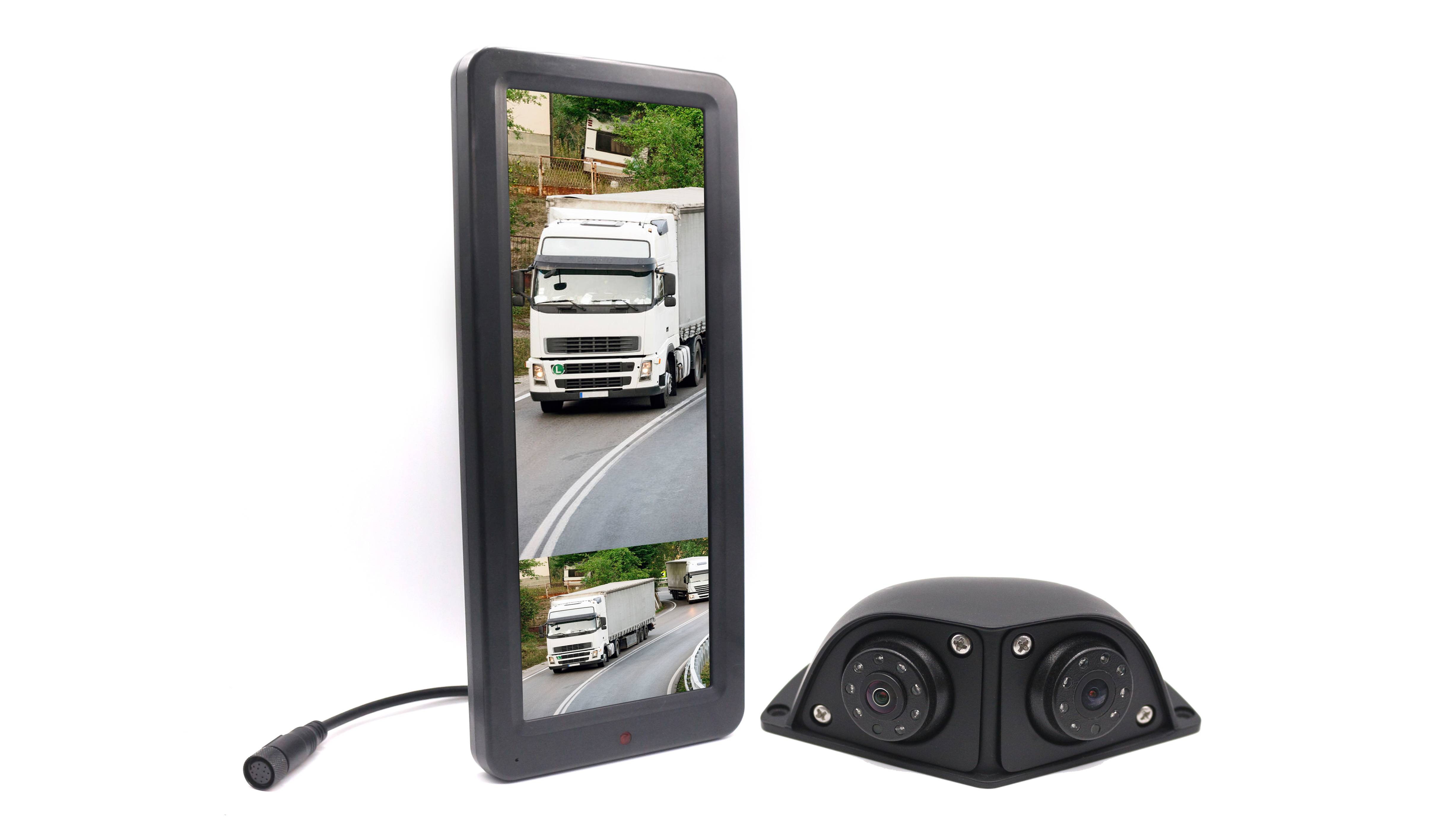

01 Specification
Mirror Item | Mirror specification | |
Display screen | Type | TFT |
Screensize | 12.3inch(8:3) | |
Resolution ratio | 1920RGB(H)×720(V) | |
Luminance | 700cd/m2 | |
Contrast ratio | 1000:01:00 | |
Visible range | 292.032(H)X109.512(V)[mm] | |
Viewing angle | U/D/L/R85/85/85/85 | |
Video and video recording system |
Video input | 2ways 1080P、960P、720P、960H、D1(CVBS) |
Compatible with hybrid input of CVBS / AHD signals | ||
Compatible with PAL and NTSC input | ||
Audio frequency | Audio input | Supports 1 channel audio input, CH1 lock connector (optional) |
Audio output | None | |
Compressed format | G.726 compressed format | |
Power supply and power consumption |
Input voltage | DC: +12V ~ +30V (working with camera requires above 12V input voltage) |
Work environment | Temperature | -30℃ ~ +70℃ |
Humidity | 20% ~ 80% | |
System language | Chinese, English, others (customizable) |

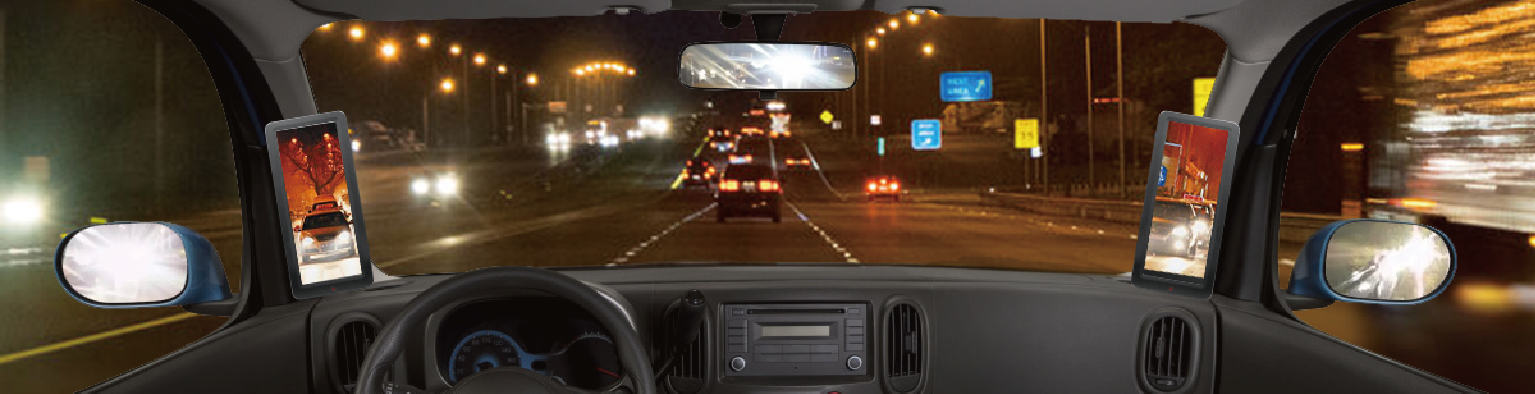

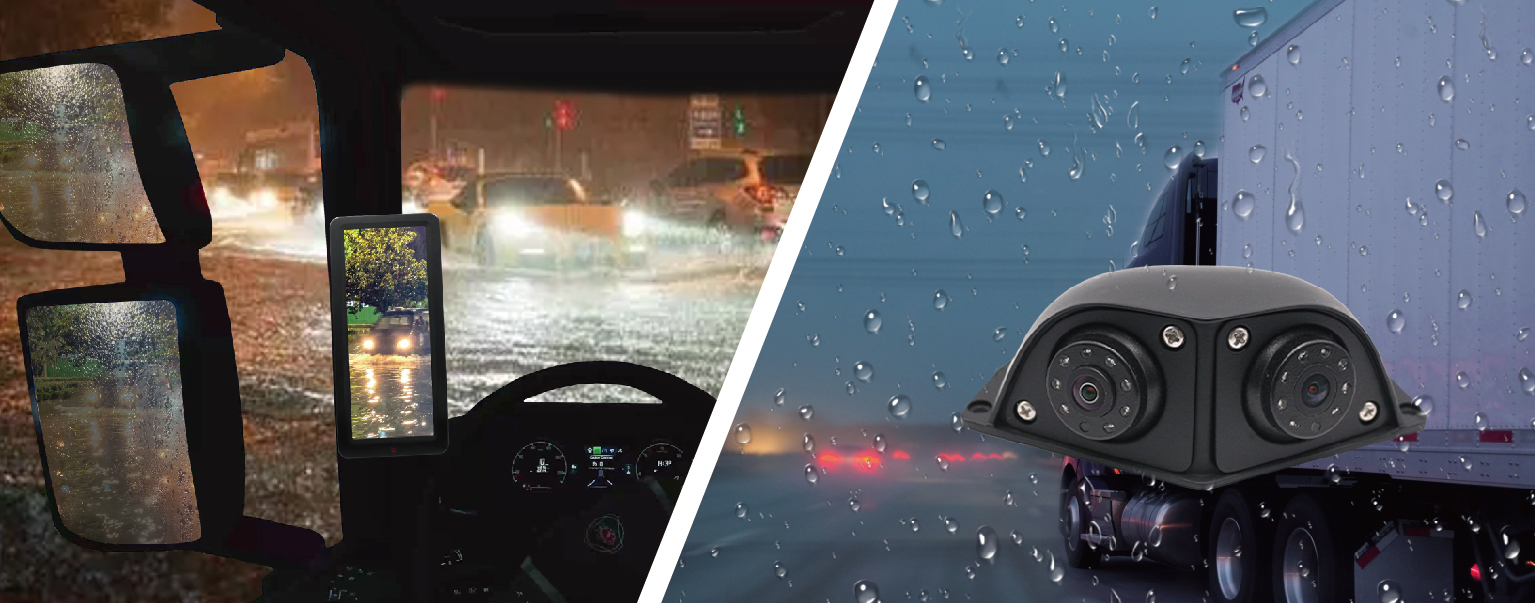

02 Driving Safety
The 12.3-inch electronic rearview mirror is installed in the car, effectively preventing rain and mud from outside the car and replacing the physical rearview mirror.
![](http://v4-upload.goalsites.com/625/1717493012_12_3CMS-night.jpg)
![](http://v4-upload.goalsites.com/625/1717493104_12_3CMS-IP68.jpg)
03 Diversified installation solutions
There are many installation methods and can be applied to different solutions.

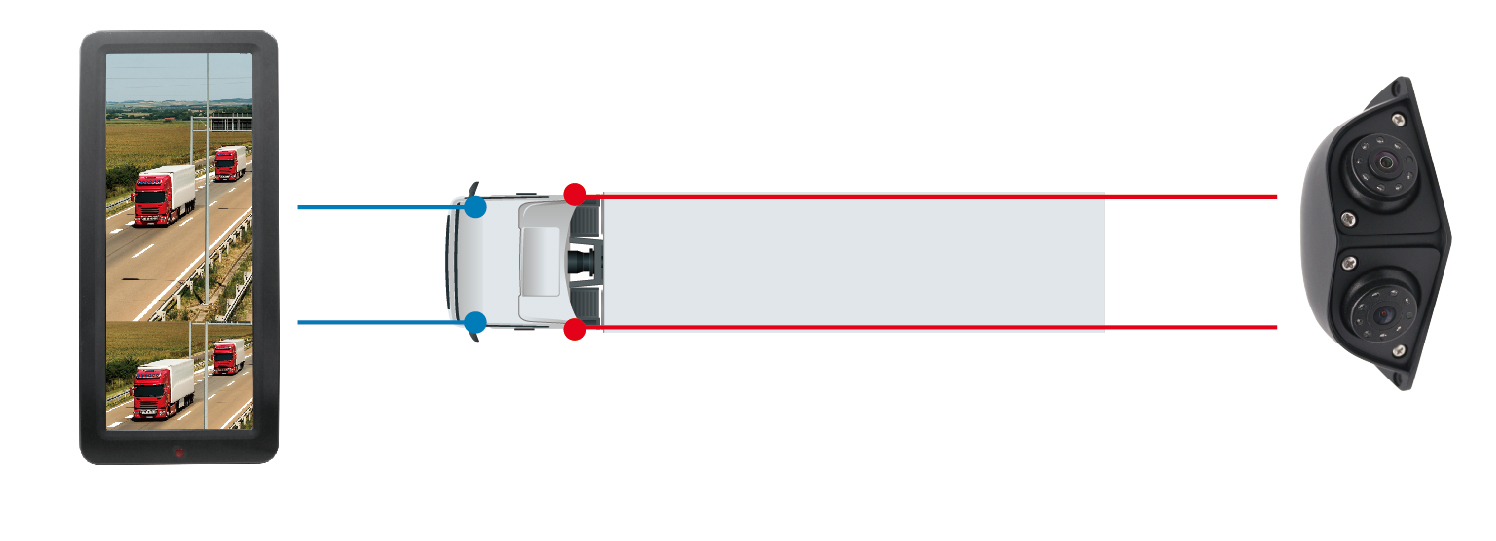

Solution A
![](http://v4-upload.goalsites.com/625/1717493723_12_3CMS-solution A.jpg)
Solution B
![](http://v4-upload.goalsites.com/625/1717493760_12_3CMS-solution B.jpg)
