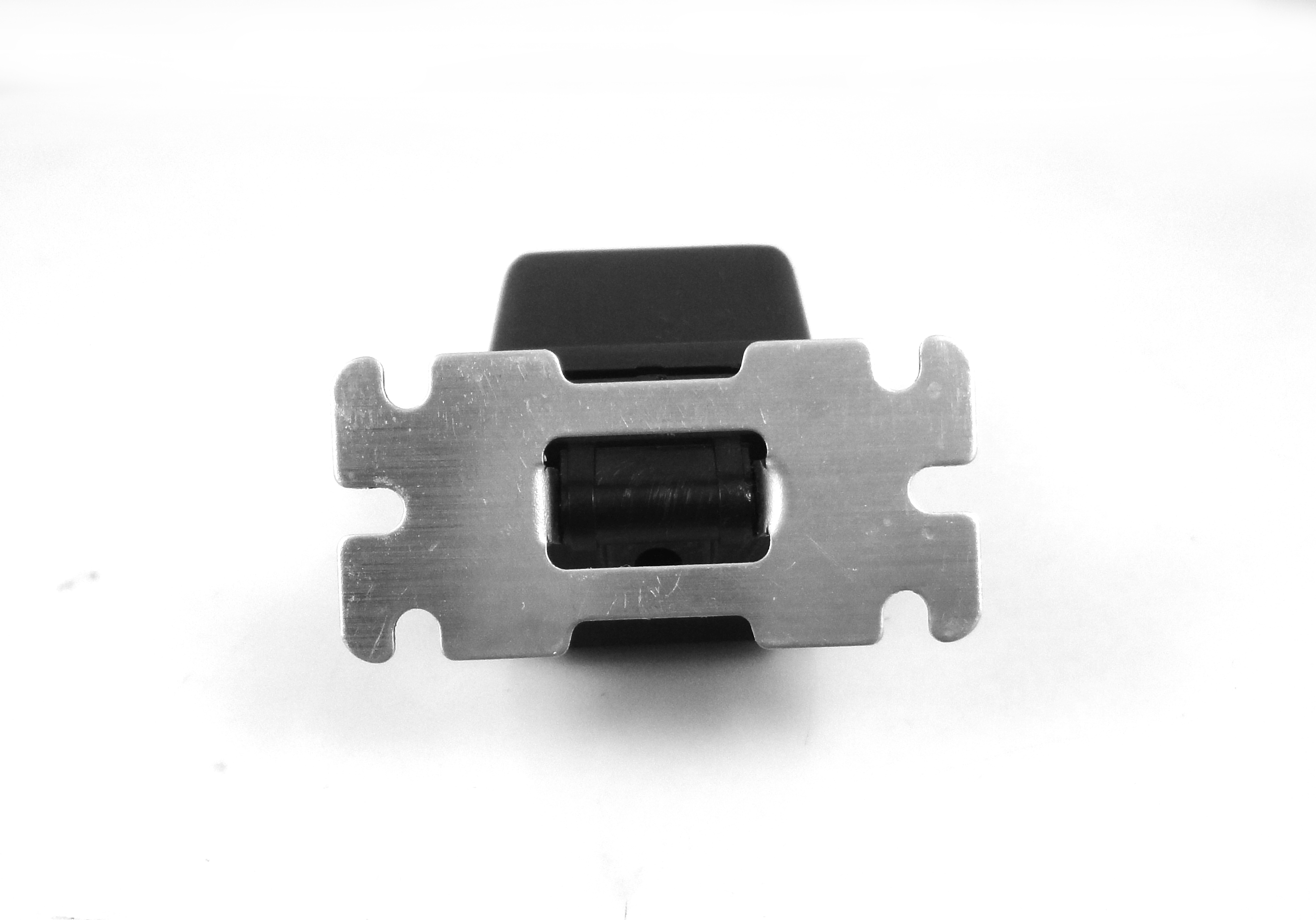

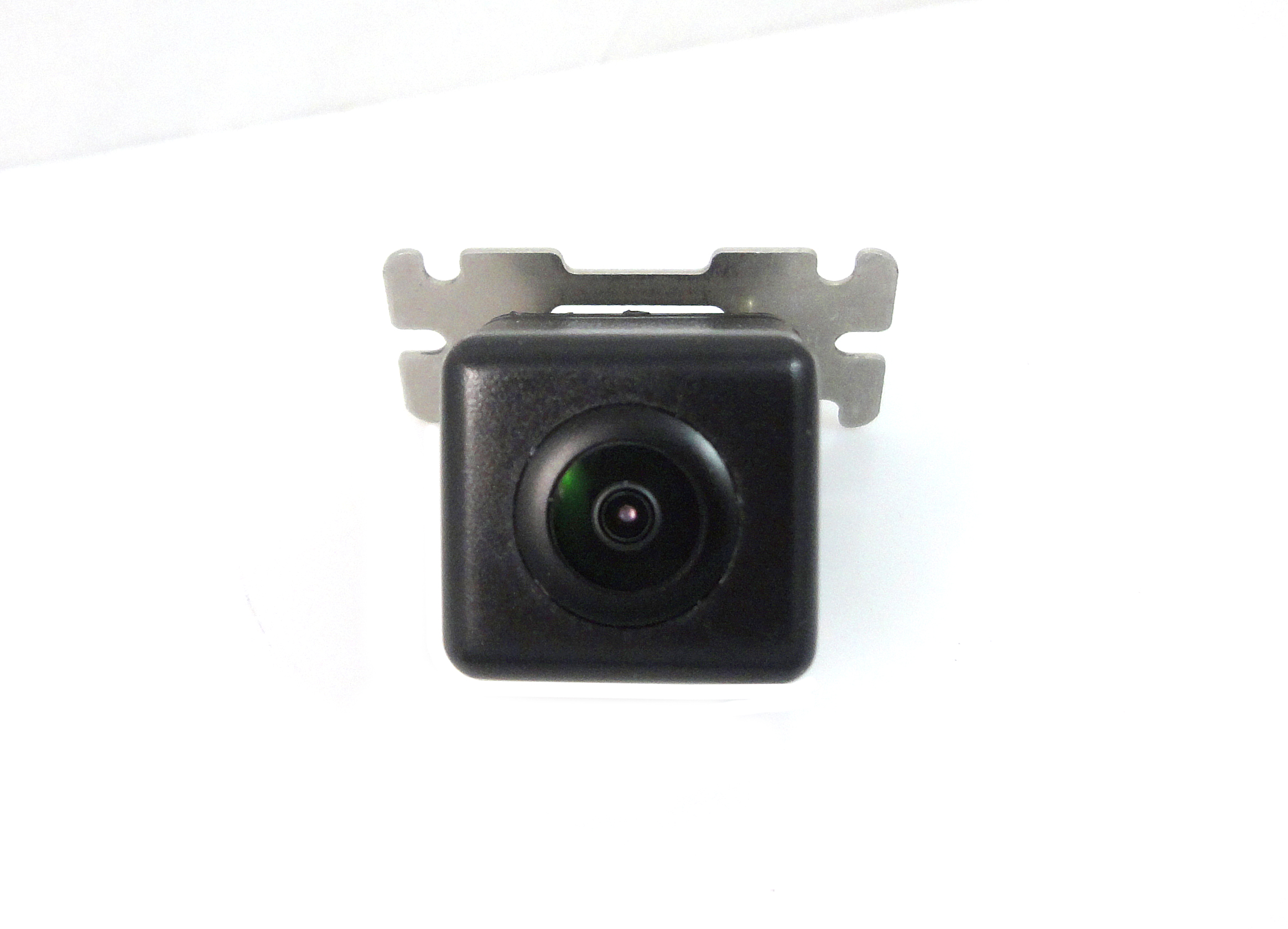

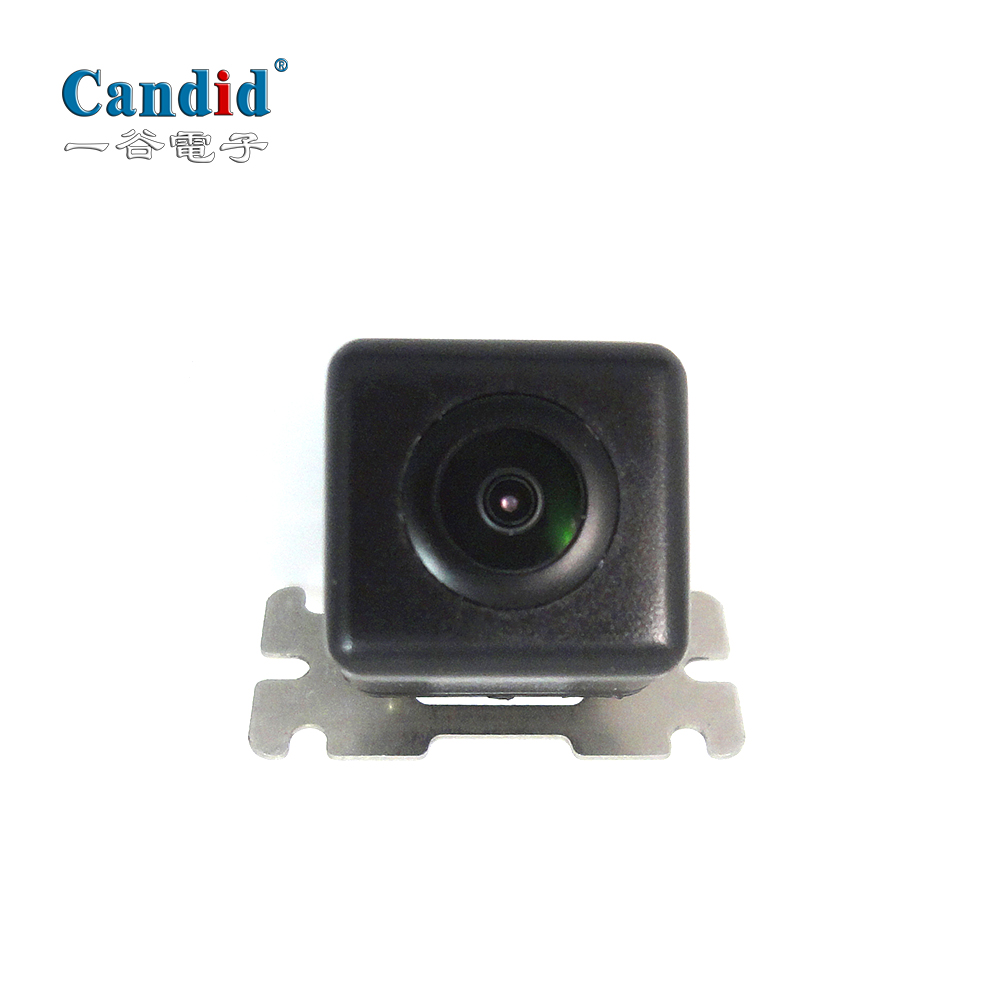

camera CA-303
.jpg)
.JPG)
.JPG)
.jpg?imageView2/1/w/116/w/74)
.JPG?imageView2/1/w/116/w/74)
.JPG?imageView2/1/w/116/w/74)
Features
Features:
rear view cameras suppliers for the car camera CA303
MINI Size camera
Provide the OEM or ODM design service
rear view cameras suppliers for the car camera CA303
MINI Size camera
Provide the OEM or ODM design service
Specifications
rear view cameras suppliers of CA303
Waterproof super mini backup camera is small eought to install in the car rear area, it is good for parking which can help the driver see parking viewing in real time.
.png)
.png)
Waterproof super mini backup camera is small eought to install in the car rear area, it is good for parking which can help the driver see parking viewing in real time.
| Image sensor | COMS |
| TV Mode | PAL/NTSC |
| Image Sensor | 1/3 inch |
| Operation voltage range | DC12V(6-16V) |
| working current | 38.5mA±10mA |
| Power Consumption | 0.462W@ DC12 V |
| Connector | 4pin lock connector |
| Video Output | 1±0.2 Vpp 75Ω |
| UsefulPixels | 720*480 |
| Minimum lllomination | 0.4Lux |
| Wide Dynamic | 62.9dB |
| resolution ratio | 340,000 Pixsls |
| camera angle | Max 140 |
| waterproofing grade | IP67 |
| Operation Humidity | 85 RH% |
| Operation Temperature | -20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |
.png)
.png)

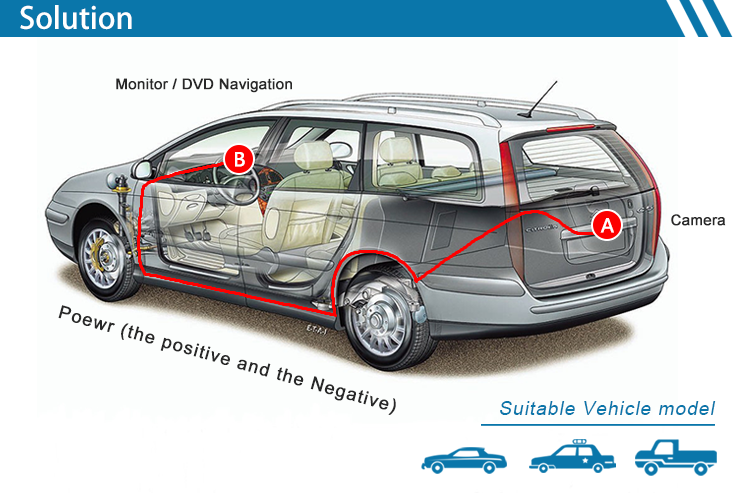

Applications
.png)
Candid have the high standard of camera quality control process, believe Candid can provide the satisfied product according to your inquiry.
.png)
.png)
.png)
