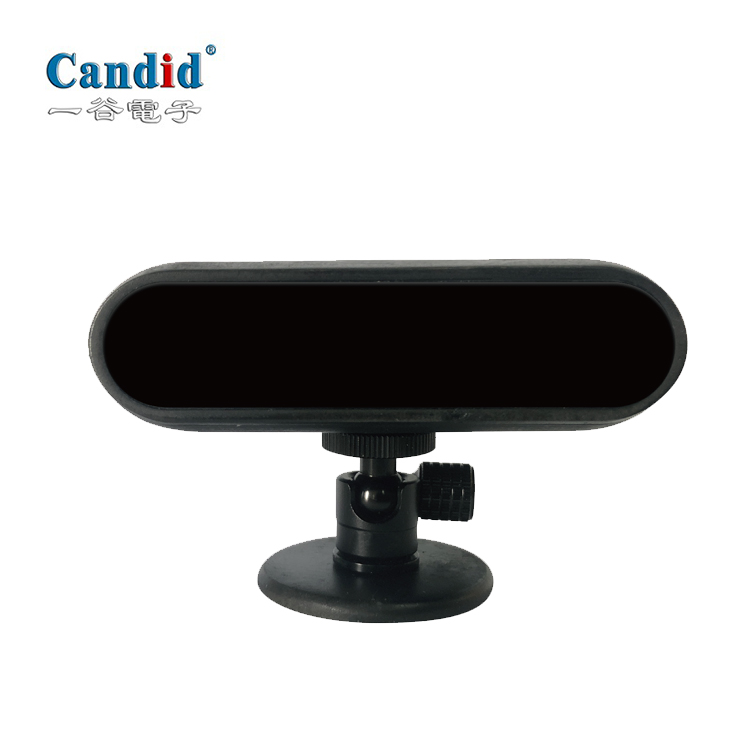

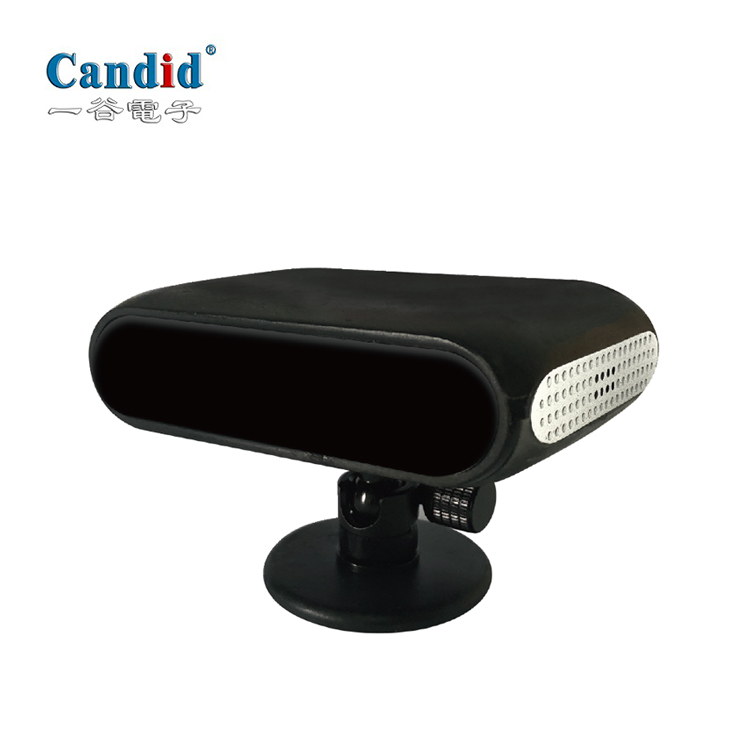

DMS camera system

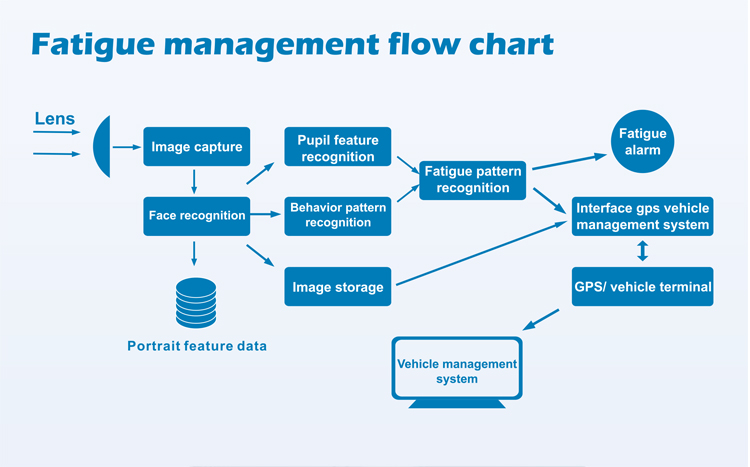

This DMS camera system is used for the judgement based on the characteristics of the driver's human face image. Thus manage the driver's behavior correctly to prevent driving risks.
Features
HD face detection camera with night vision;
Wide dynamic ADAS camera;
With built-in speaker and microphone;
With built-in WIFI module;
Works in day & night;

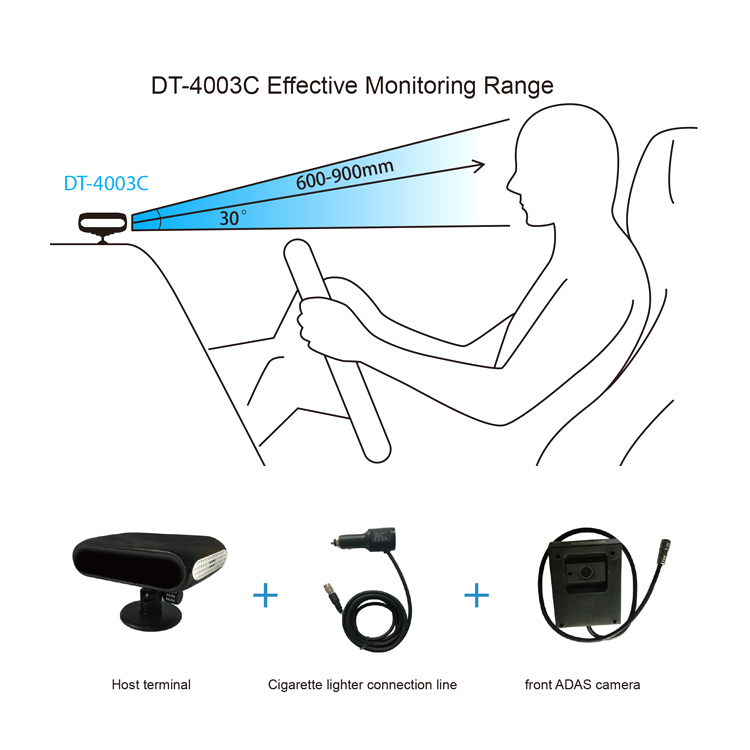

Working distance: 50-100cm;
Wide dynamic ADAS camera;
With built-in speaker and microphone;
With built-in WIFI module;
Works in day & night;
Working distance: 50-100cm;
Specifications
| 4G Communication | Operator | Mobile, Unicom, Telecom |
| SIM Card Format | Patch type, Card type | |
| Antenna | Built-in | |
| Position | Mode | GPS, TOPGNSS |
| Antenna | Built-in | |
| WIFI | WIFI Hotspot | Supports up to 6 client links |
| USB | USB Test Post | For test |
| Video | Face Detection Camera | Professional Grade Infrared HD Camera |
| Face Detection Make-up Light | Japanese Infrared Supplementary Light, Certified by Human Eye Safety | |
| ADAS Camera | Professional Wide Dynamic ADAS Camera | |
| Audio | Speaker | Built-in |
| Microphone | Built-in | |
| Sensor | Acceleration Sensor | 3 Axis Acceleration Chip |
| Vehicle Bus | OBD-II | Supports 11939 and OBD-II Vehicle Interfaces |
| Working Distance | 50-100cm | |
| Working Condition | All Day | Day, Night |
| Power | Voltage Range | 12~24V |
| Supply current | Working Current | <2A@12V |
| Environment | Working Temperature | -30℃~+70℃ |
| Waterproof | IP54 | |

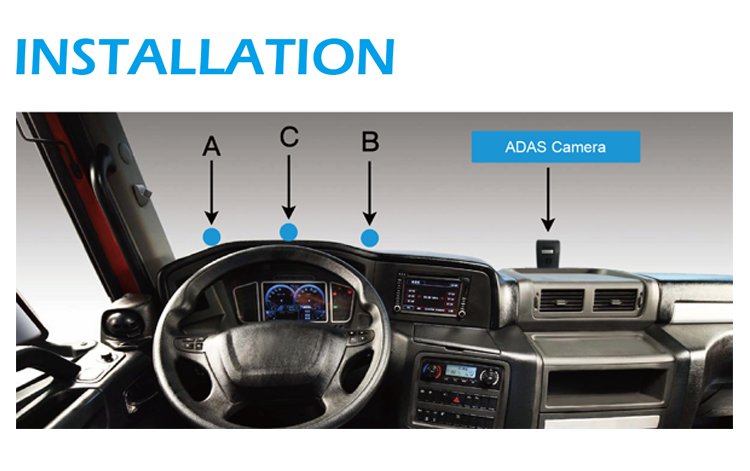

| Installation | Fixed Bracket Installation | Screw or Double Sided Tape |
Applications
