Commercial vehicle Motorized Shutter Twin View camera CA-9110

High performance Motorized Shutter Twin View Camera24V,with OE high quality standard, and waterproof level of IP69K,  this compact camera works under all kinds of weather condition.

Features

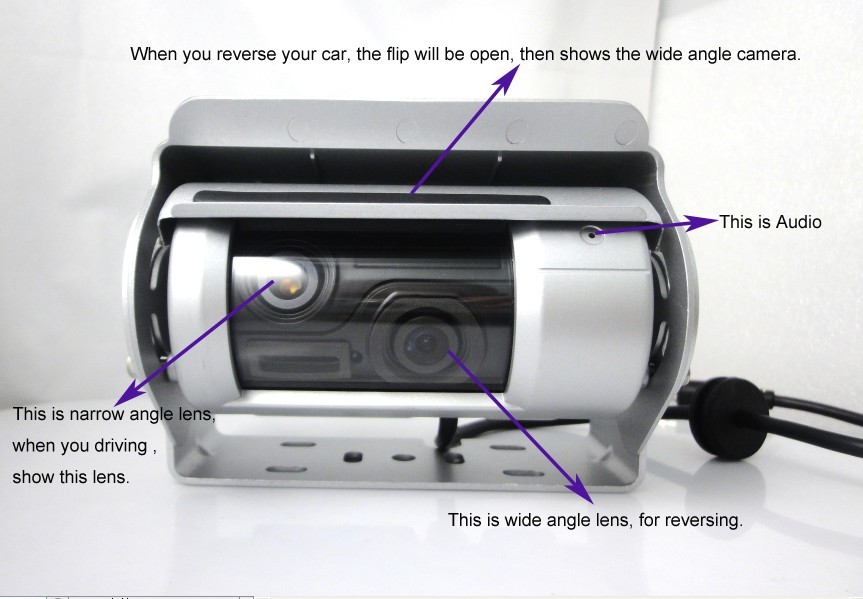

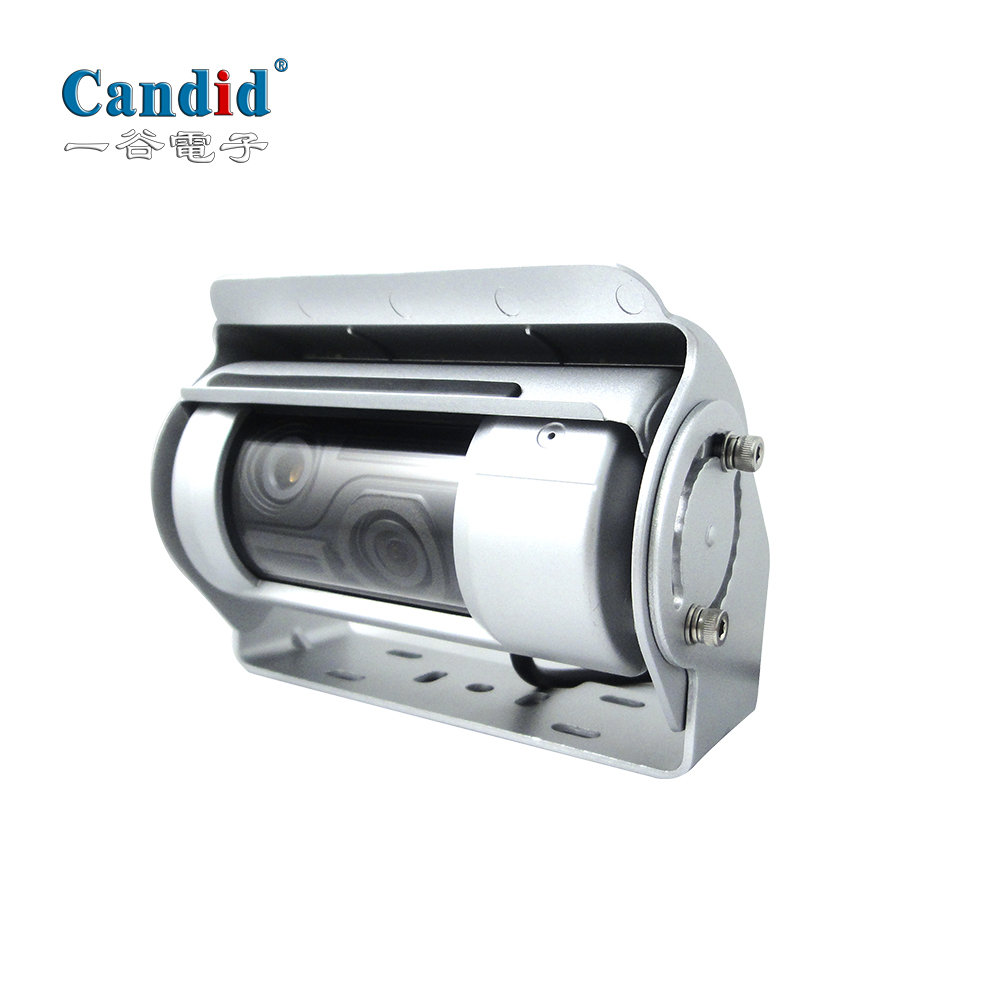

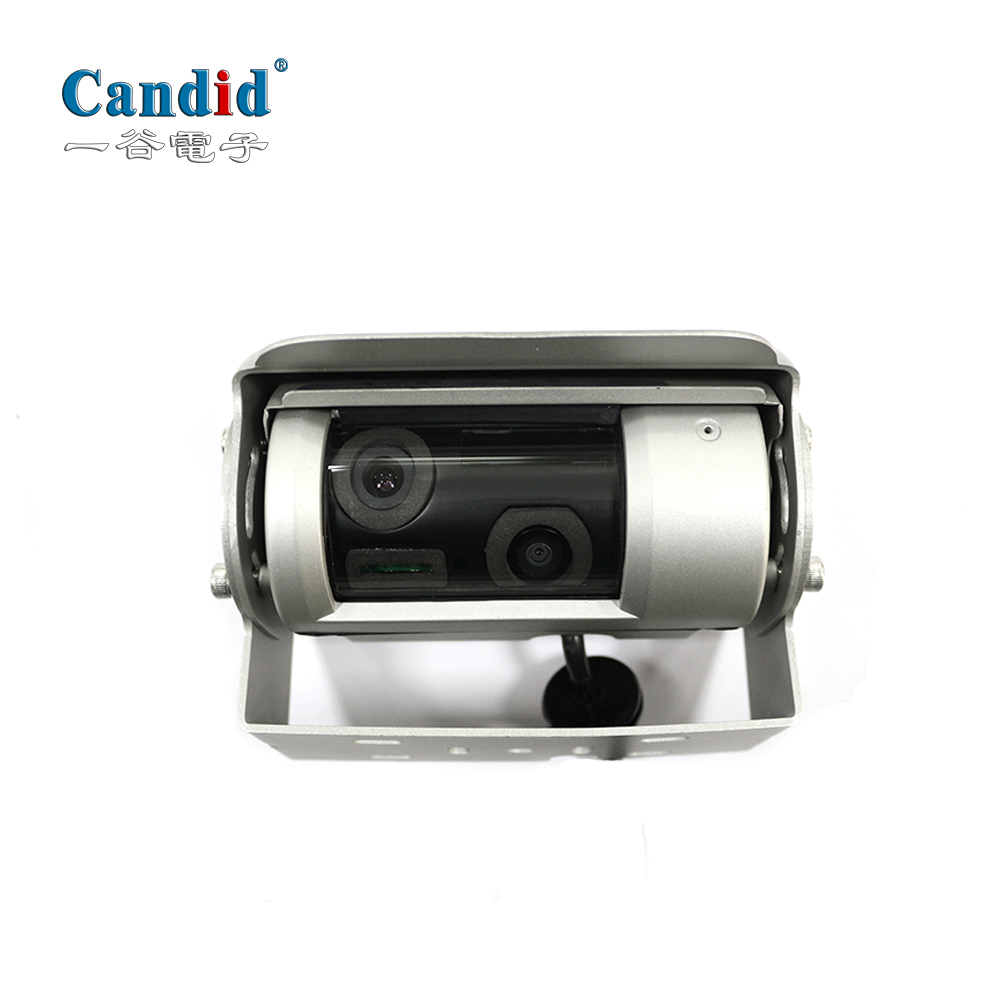

Motorized shutter twin view camera with dual lens

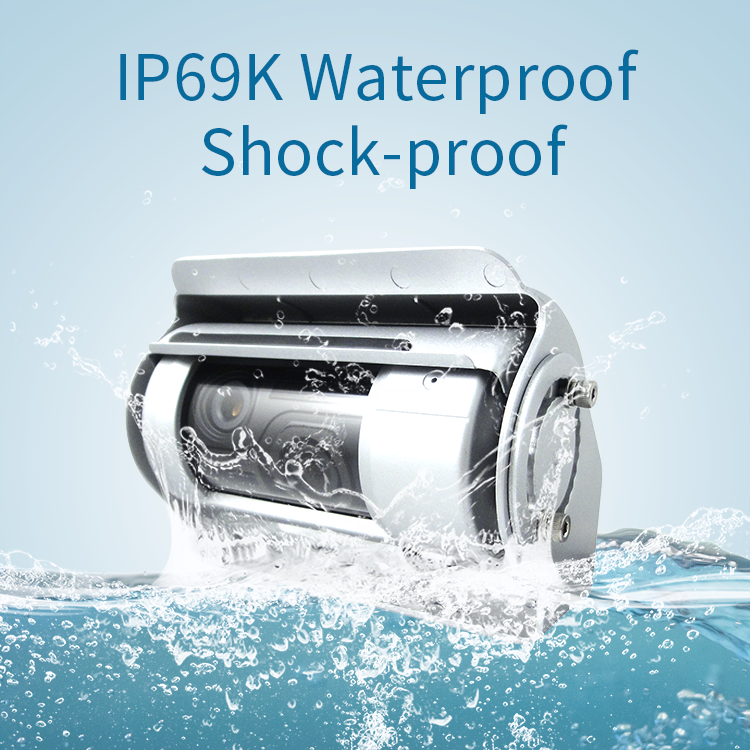

Waterproof level: IP69K
1/3" super AHD CCD sensor
Automatic electronic iris
ultra low light performance

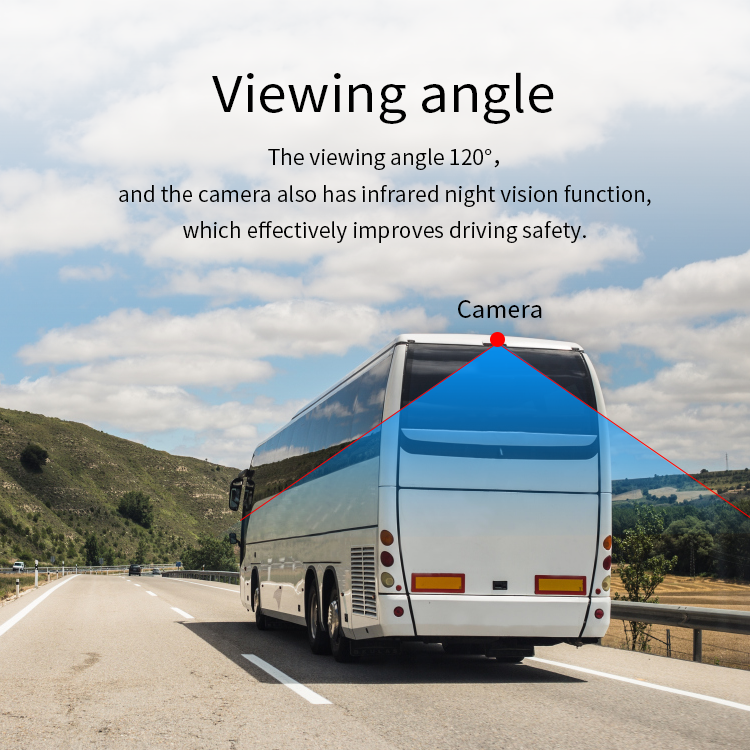

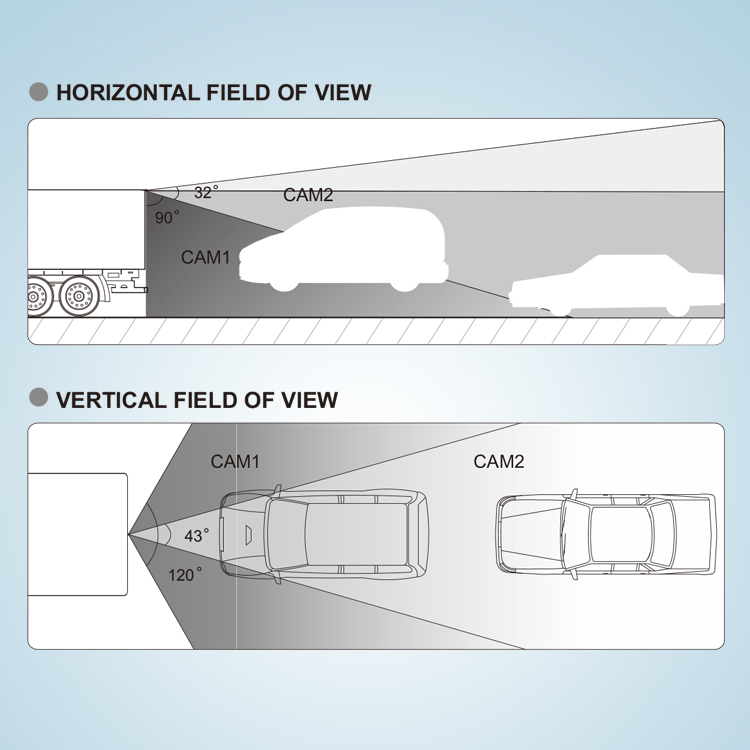

extra wide field of view, dual viewing angle: 120/43 degrees

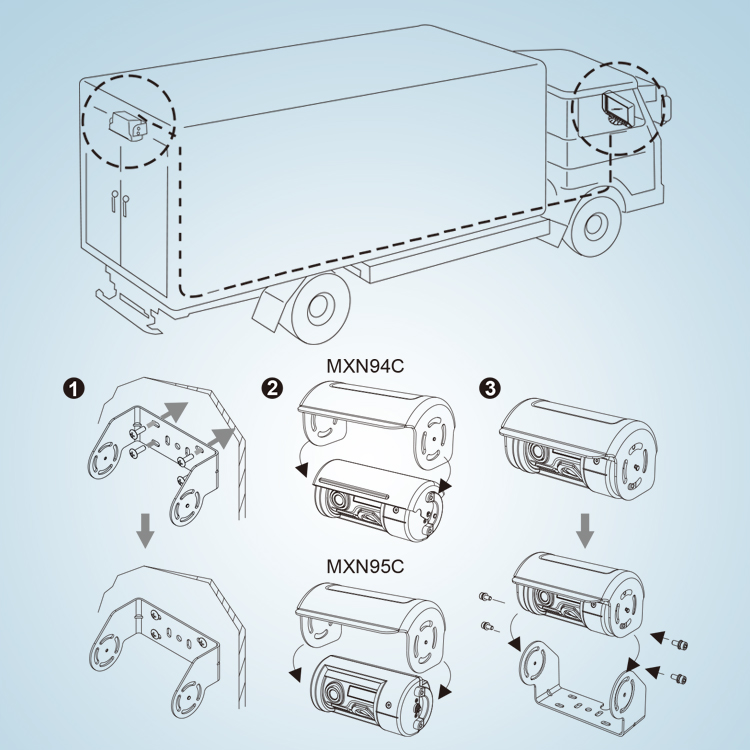

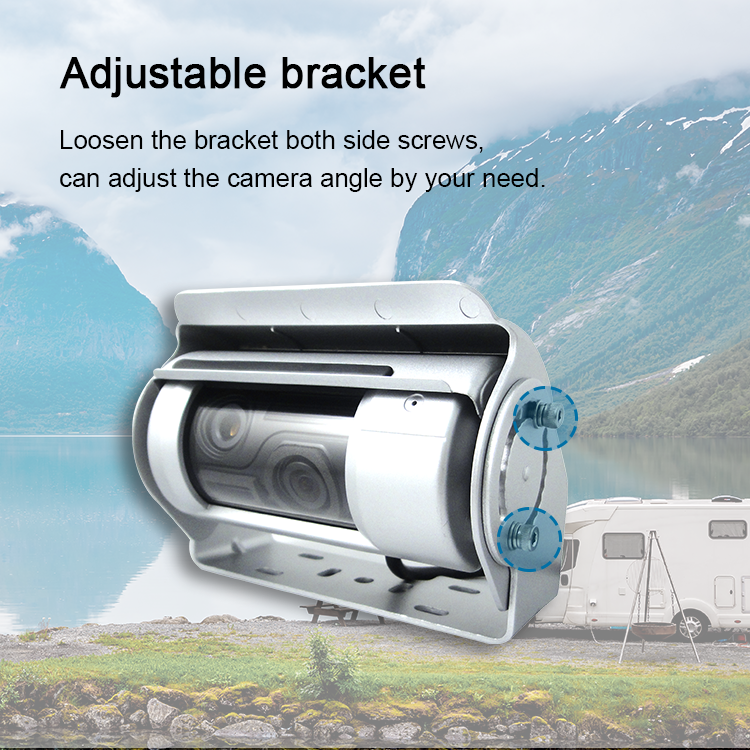

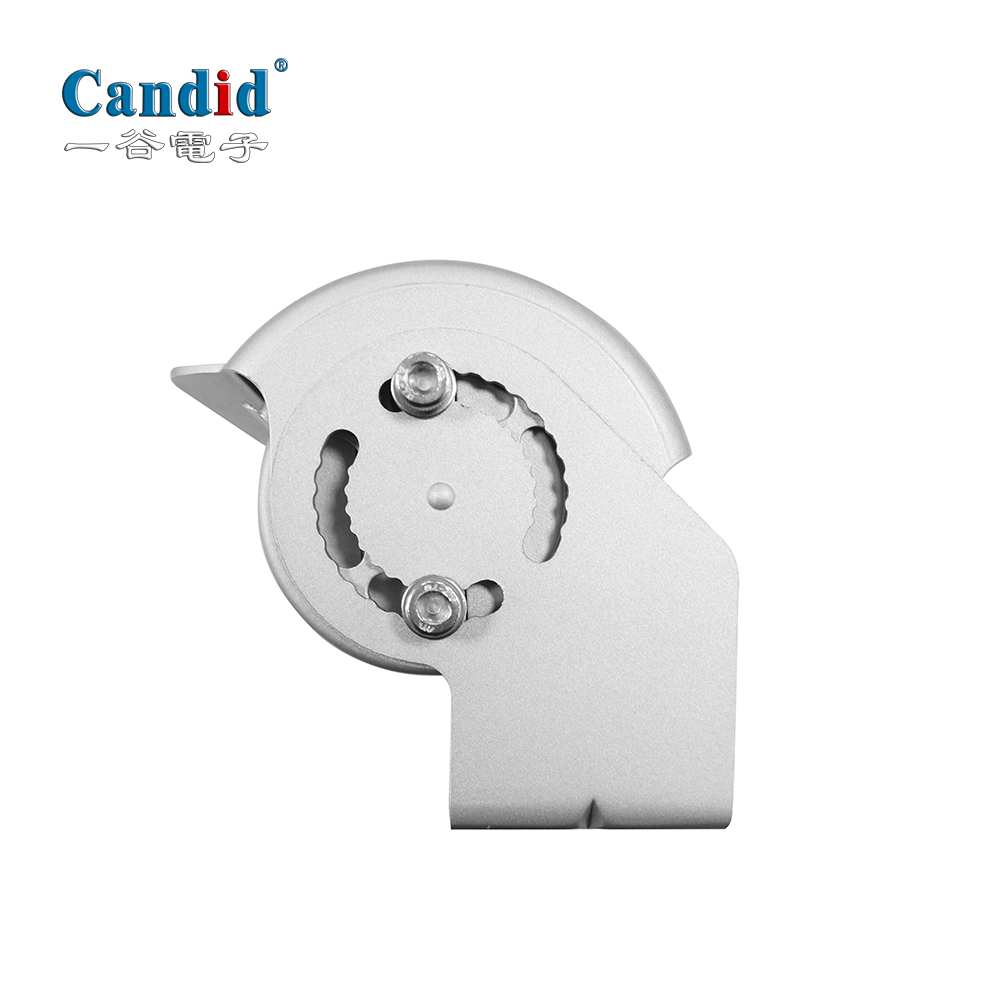

with bracket for easy installation

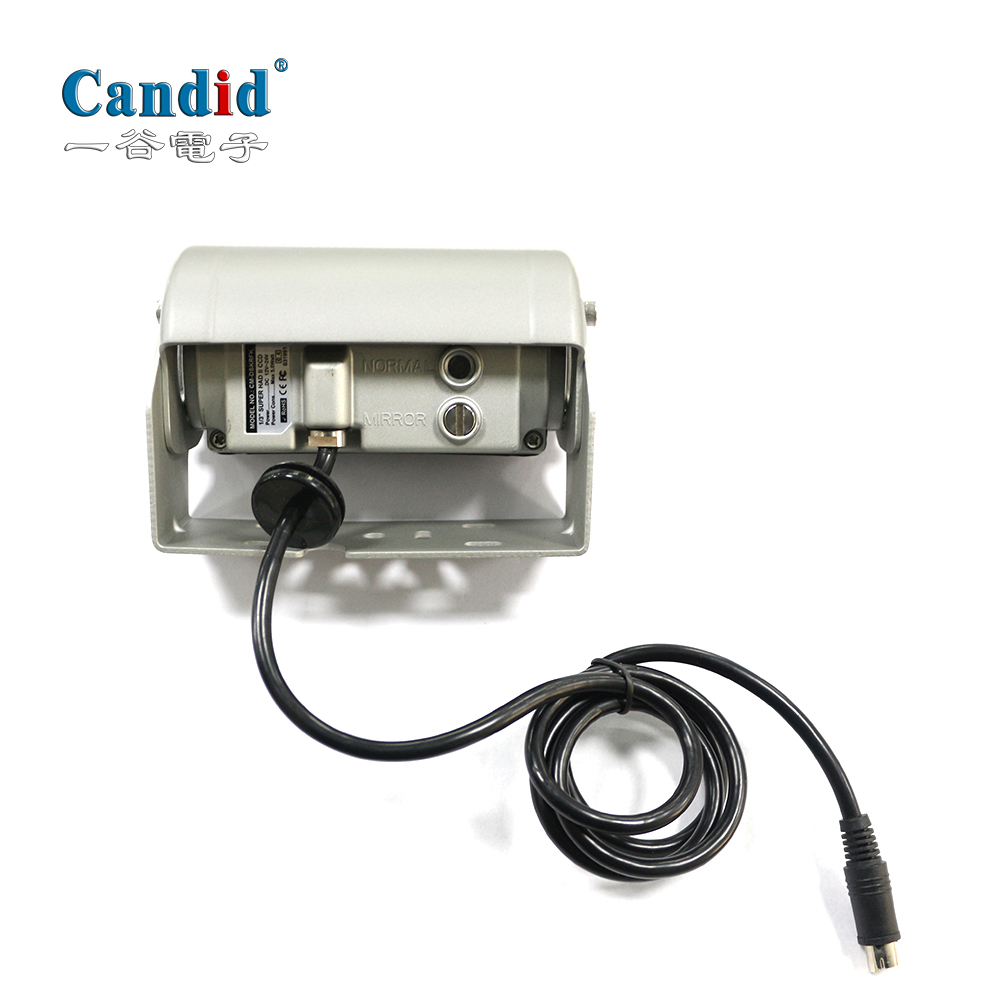

Mirror/Normal image switchable

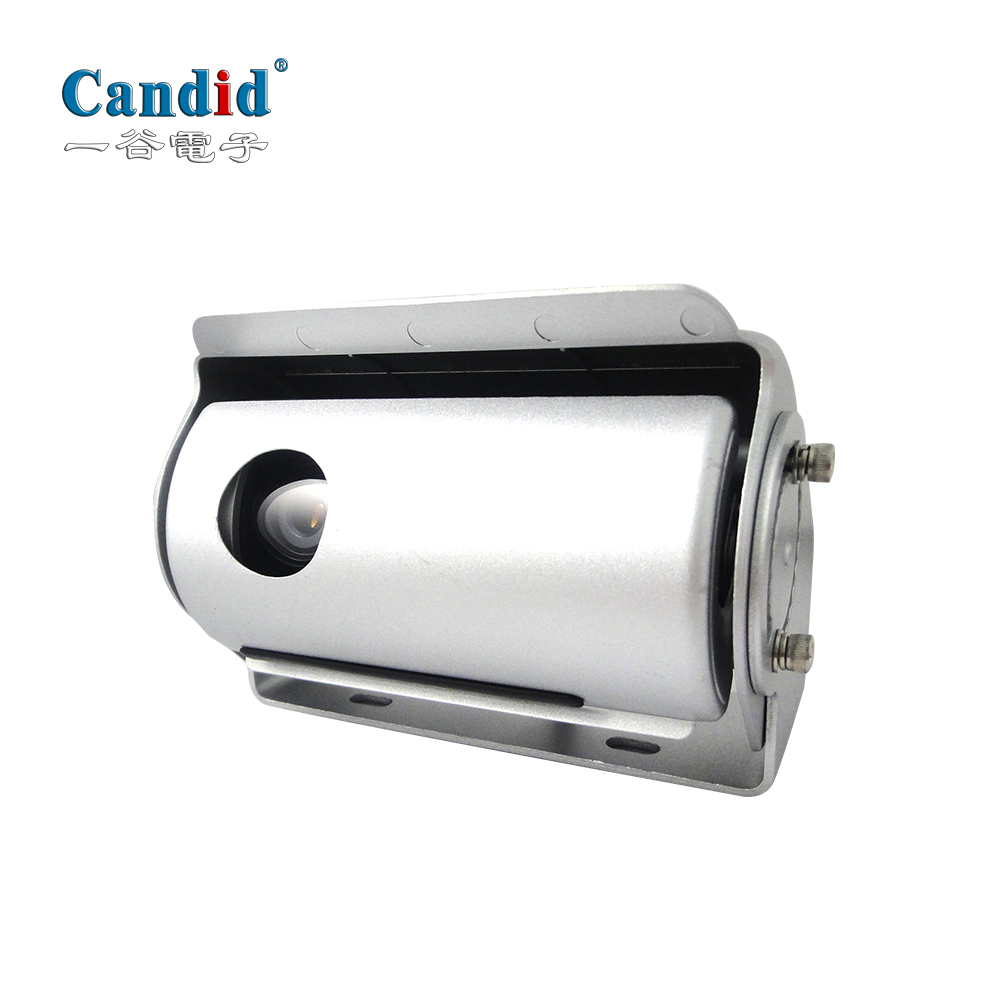

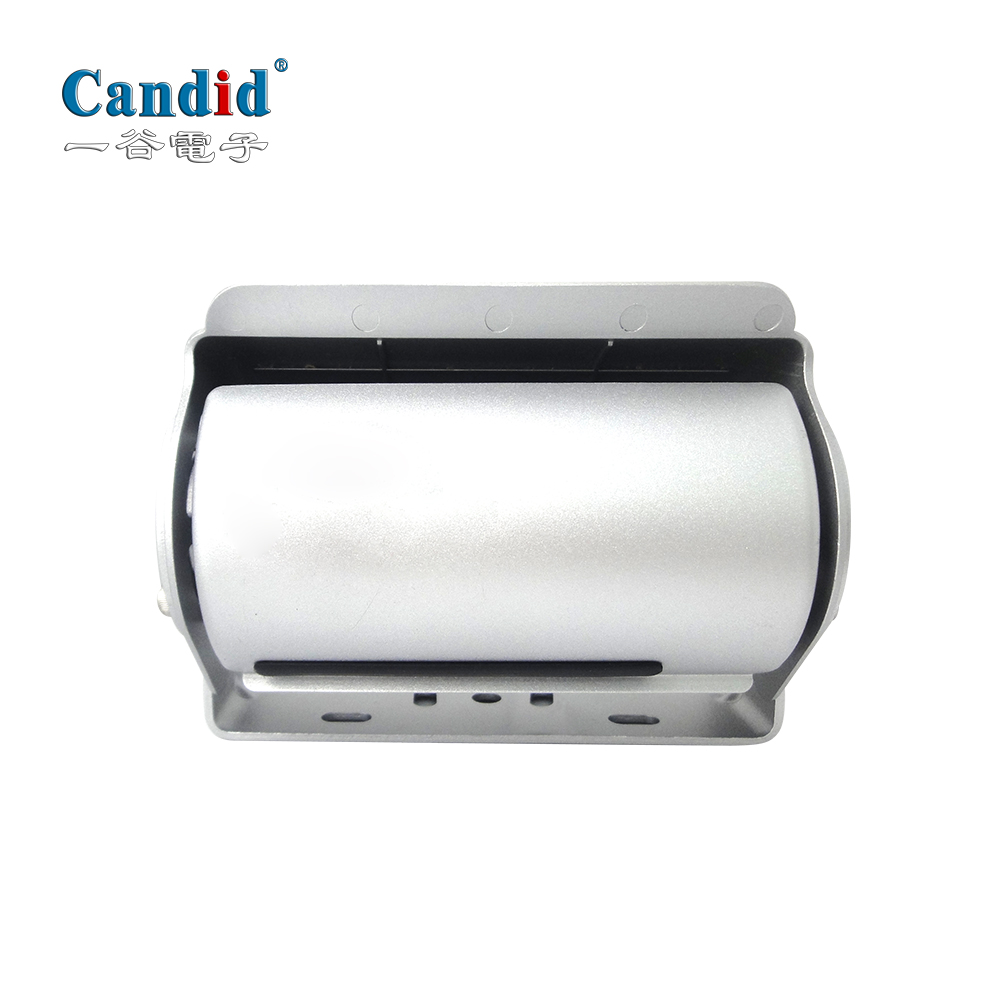

automatic shutter/cleaning function
vandal resistant
automatic heating function

Specifications

Image sensor SONY CCD
TV  Mode   PAL/NTSC
Image Sensor 1/3" SONY CCD
Operation voltage range DC12V(10-16V)
working current 63mA±10mA
Power Consumption 0.72W@DC12V
Video Output 1±0.2 Vpp 75Ω
Pixels
USEFUL PIXELS 768*494
Minimum lllumination 0.3 Lux
Wide Dynamic 80dB
Signal to Noise ratio 52dB
resolution ratio 3,700,000 Pixsls
Gamma value 0.45
Lens angle dual lens: 120/43 degrees
Shutter Speed 1/60~1/100,000(second)
IRIS Method Auto
waterproof level IP69
white balance Auto
AGC Auto
Backlight compensation Auto
Operation Humidity 85 RH%
Operation Temperature -20℃~ +70℃
Storage Temperature -40℃~+85℃

Applications
