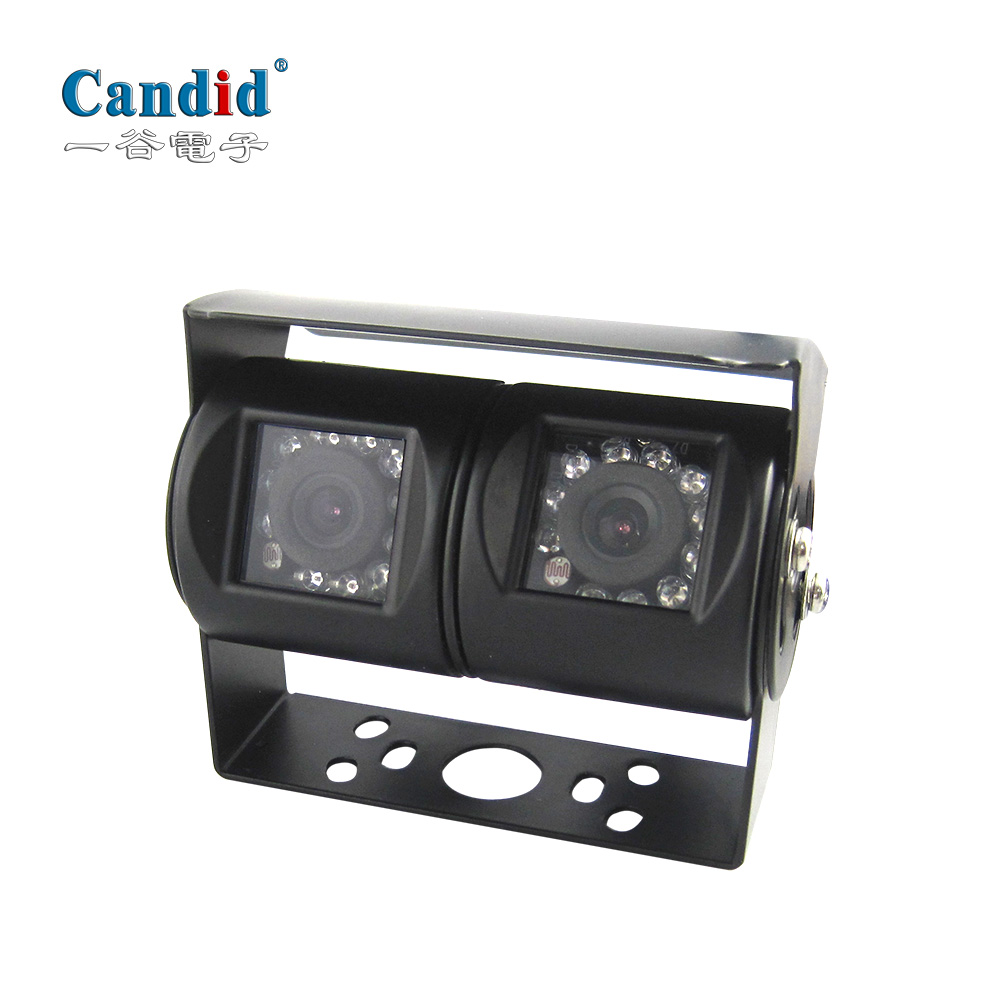

Camera CA-9770

The dual lens camera show us to see the reversing image when the car is parking and also the second camera show us the approaching traffic from behind while driving. Suitable for Motorhome, Caravan, bus, truck,Fleet, etc.

Features

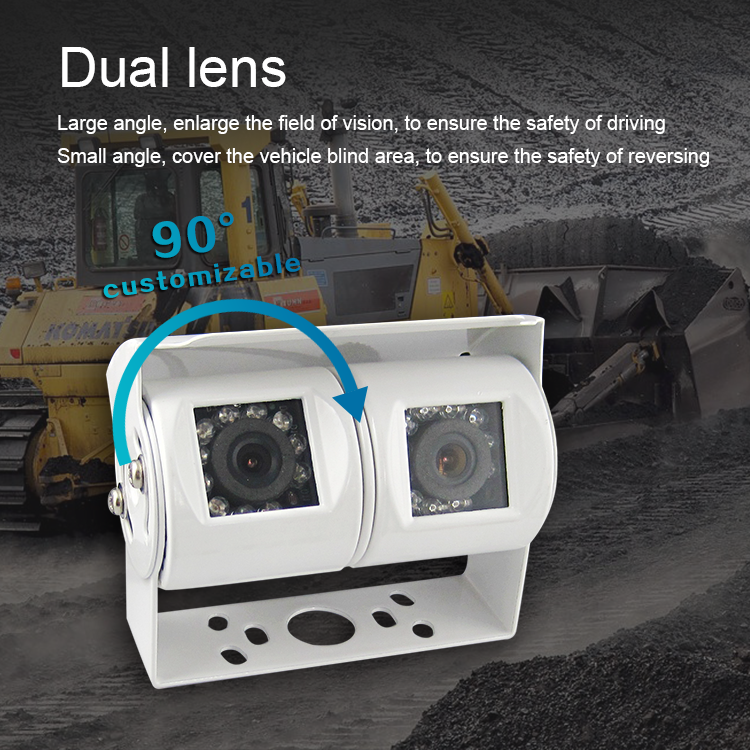

-Dual Lens one for parking the other for rear view.
-Heavy duty metal housing.

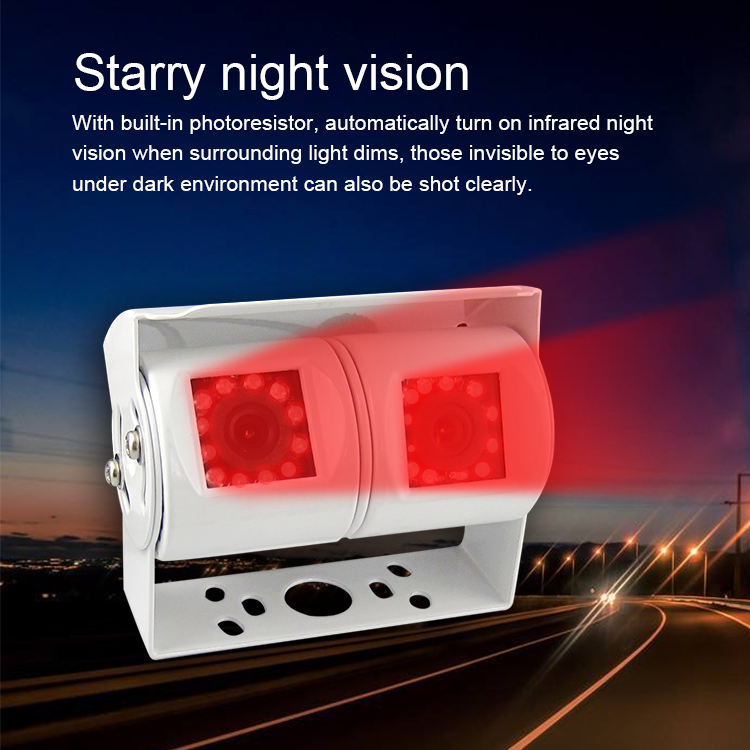

-24 Infra-red Lights for super night vision.
-Wide angle lens 120°/95°.

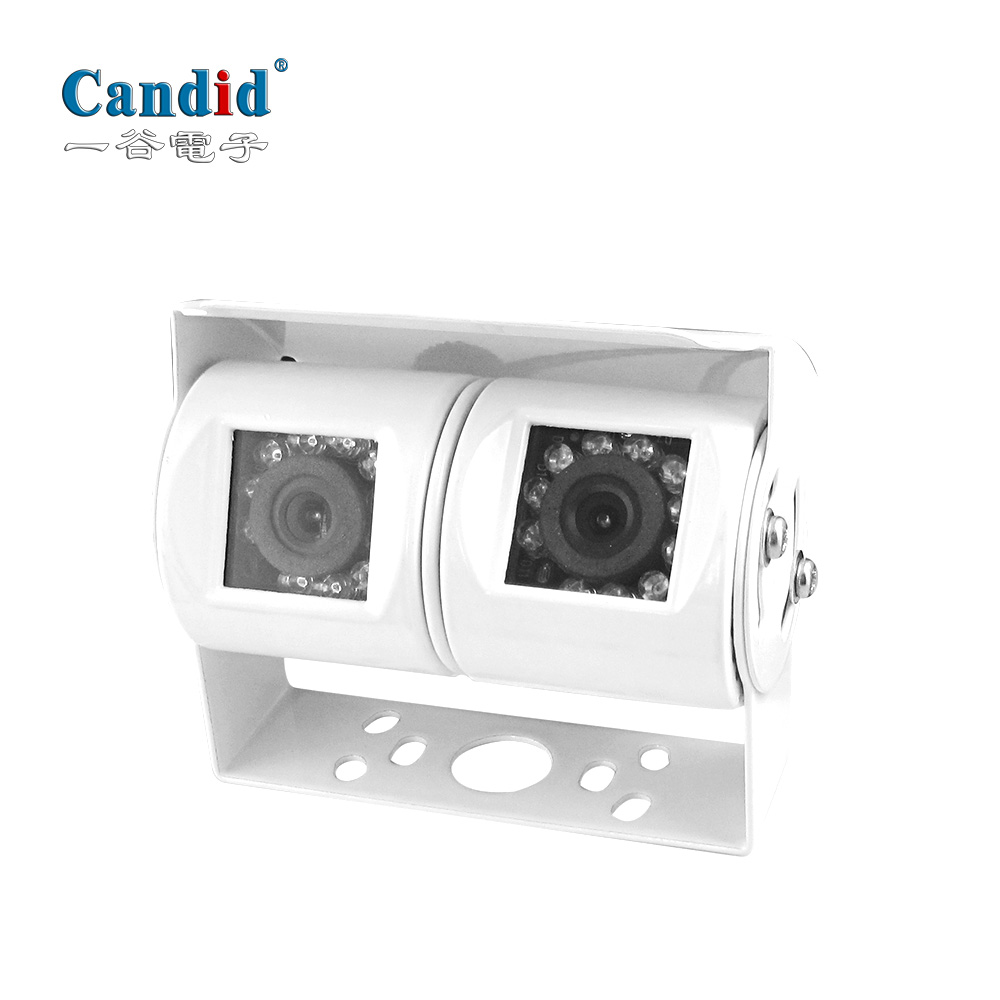

-Two housing color for you to choose (black&white).
-Different sensor chip to choose (720P/SHARP CCD)

Specifications

Image Sensor 1/2.9 inch
Power Consumption        0.684W@ DC12 V
Video Output 1±0.2 Vpp 75Ω
USEFUL PIXELS 1280*720
minimum illumination            0.1Lux
Wide Dynamic 91dB
Resolution ratio 720P
Gamma value 0.45
Lens angle 120 degree

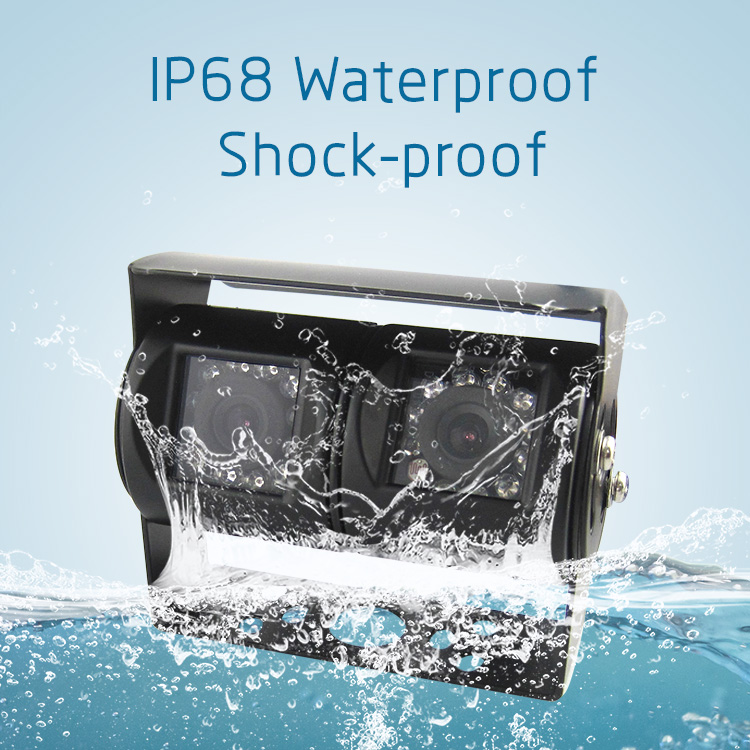

Waterproofing grade IP68
white balance auto
backlight compensation auto
Operation Humidity       85 RH%
Operation Temperature           -20~ +70
Storage Temperature              -40~+85
