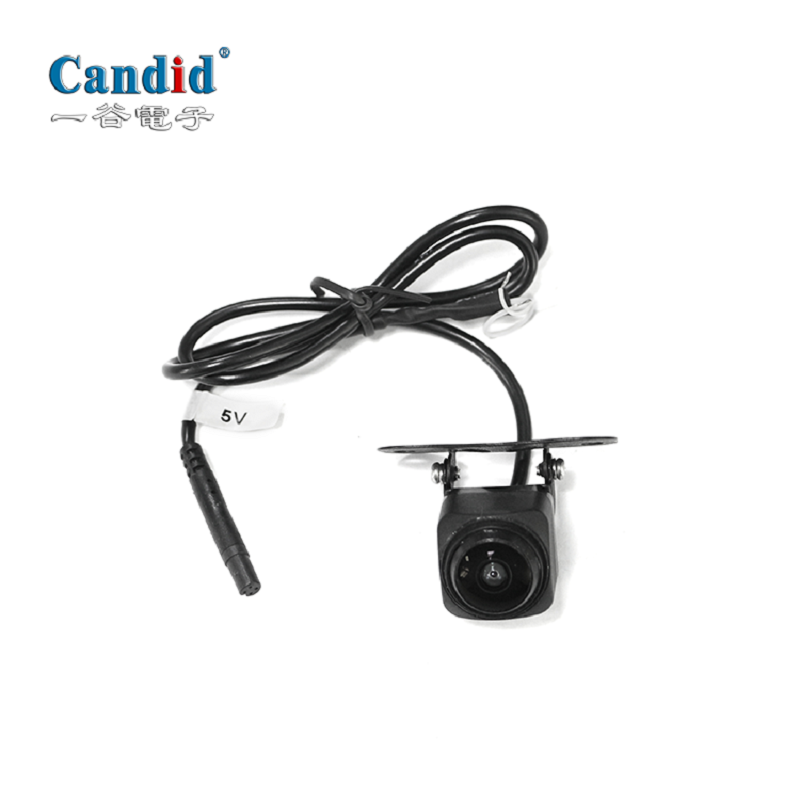

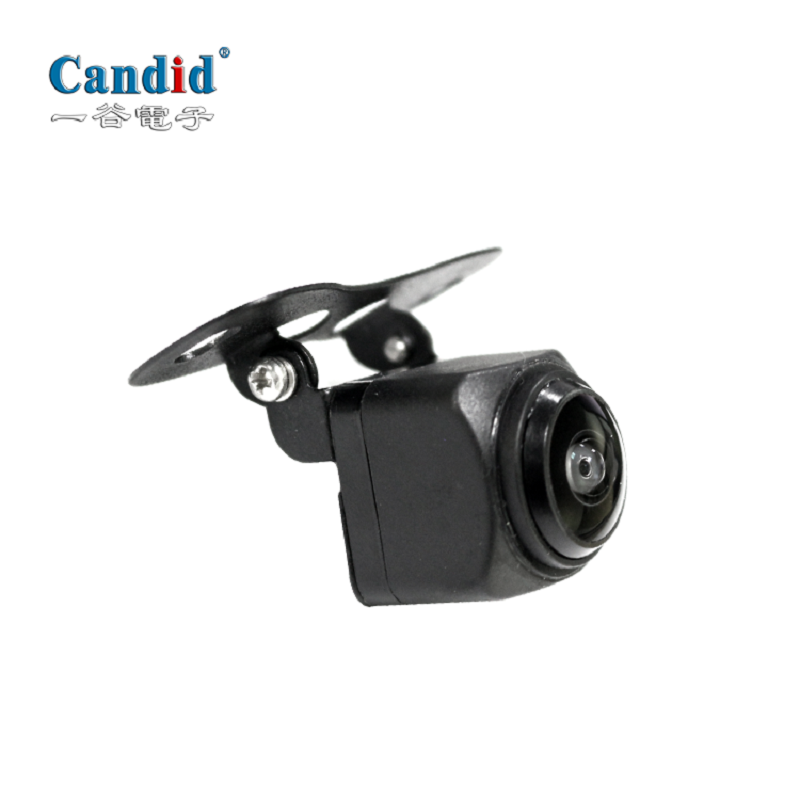

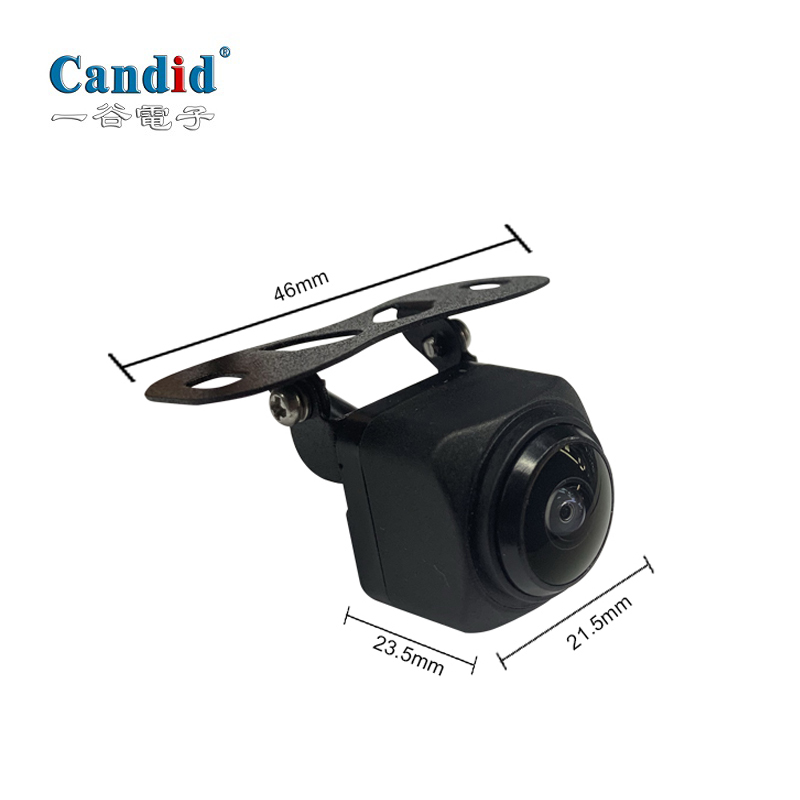

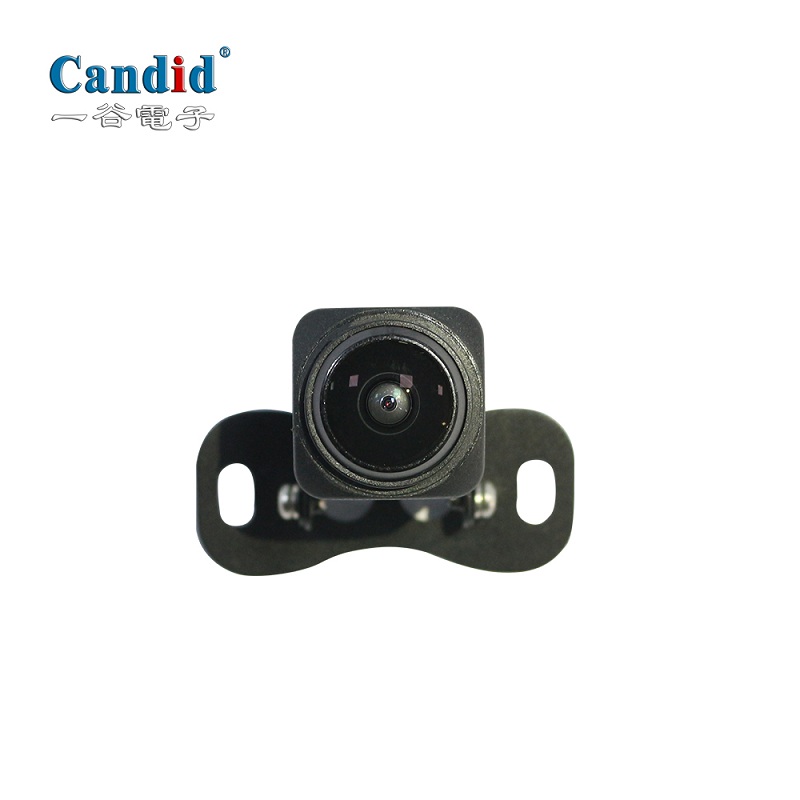

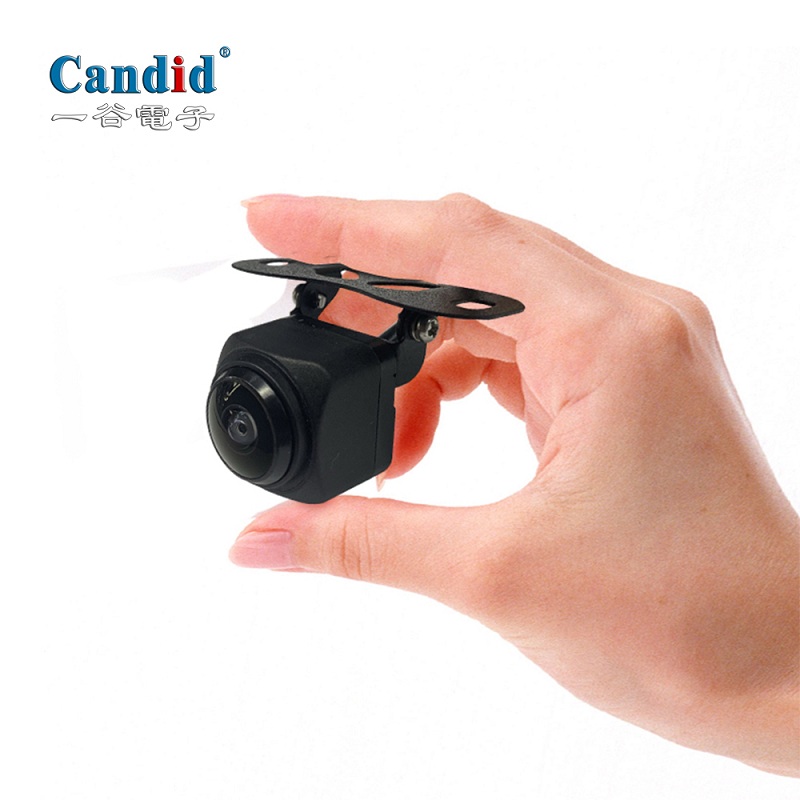

Car camera T-149

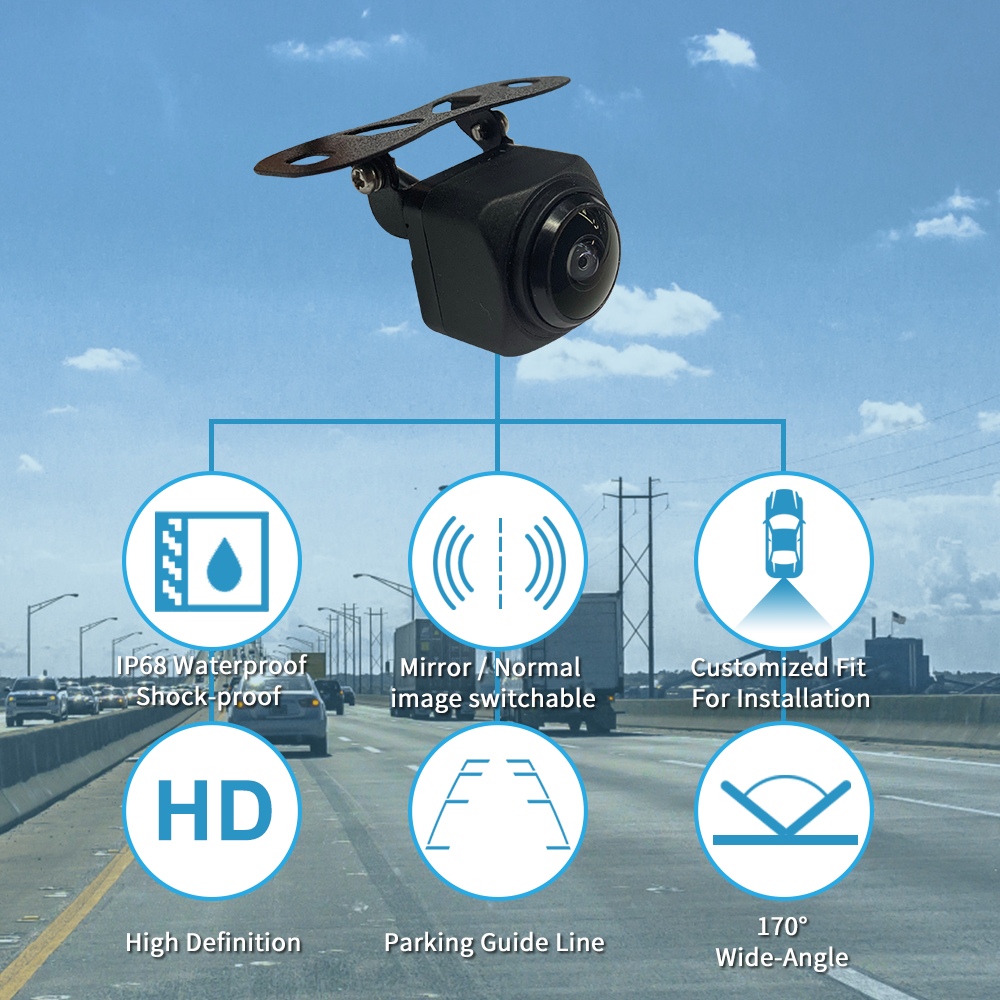

Features:
This rear view camera features a universal 192 degree fisheye ultra-wide view angle, with OE high quality standard, and waterproof level of IP69K, this compact camera can fit for all cars.
This rear view camera features a universal 192 degree fisheye ultra-wide view angle, with OE high quality standard, and waterproof level of IP69K, this compact camera can fit for all cars.
Features
OE high quality standard camera
Waterproof: IP68
DC power: 12V
Working Temperature: -20ºC ~ +70ºC
Viewing Angle: 192°
Camera type: Fisheye camera
with bracket for easy installation on car or truck
Mirror/non-mirror image optional
NTSC/PAL available
Waterproof: IP68
DC power: 12V
Working Temperature: -20ºC ~ +70ºC
Viewing Angle: 192°
Camera type: Fisheye camera
with bracket for easy installation on car or truck
Mirror/non-mirror image optional
NTSC/PAL available
![](http://v4-upload.goalsites.com/625/1642141182_149.png)
Specifications
Car cameras T-149
Image sensor | ASX 340 |
TV Mode | PAL/NTSC |
Image Sensor | (1/4" 4:3 IT CMOS) |
Operation voltage range | DC12V(3.3-16V) |
working current | 34mA±10mA |
Power Consumption | 0.408 W @ DC12 V |
Video Output | 1±0.2 Vpp 75Ω |
Pixels | 728*560 |
USEFUL PIXELS | 720*480 |
Minimum lllumination | 1.0 Lux |
Wide Dynamic | 74.8dB |
Signal to Noise ratio | 46dB |
resolution ratio | 340,000 Pixsls |
Gamma value | 0.45 |
Lens angle | Max 170 |
Shutter Speed | 1/60~1/100,000(second) |
IRIS Method | Auto |
waterproof level | IP67 |
white balance | Auto |
AGC | Auto |
Backlight compensation | Auto |
Operation Humidity | 85 RH% |
Operation Temperature | -20℃~ +70℃ |
Storage Temperature | -40℃~+85℃ |
![](http://v4-upload.goalsites.com/625/1642141251_T-149 (8).jpg)
Applications
![](http://v4-upload.goalsites.com/625/1642141324_防水.jpg)
![](http://v4-upload.goalsites.com/625/1642141359_角度.png)
![](http://v4-upload.goalsites.com/625/1642141380_辅助线 (3).png)
![](http://v4-upload.goalsites.com/625/1642141438_镜片 (2).png)
![](http://v4-upload.goalsites.com/625/1642141493_红外2.png)
Accessories
![](http://v4-upload.goalsites.com/625/1642141512_安装 (1).png)
![](http://v4-upload.goalsites.com/625/1642141524_安装位置.jpg)
