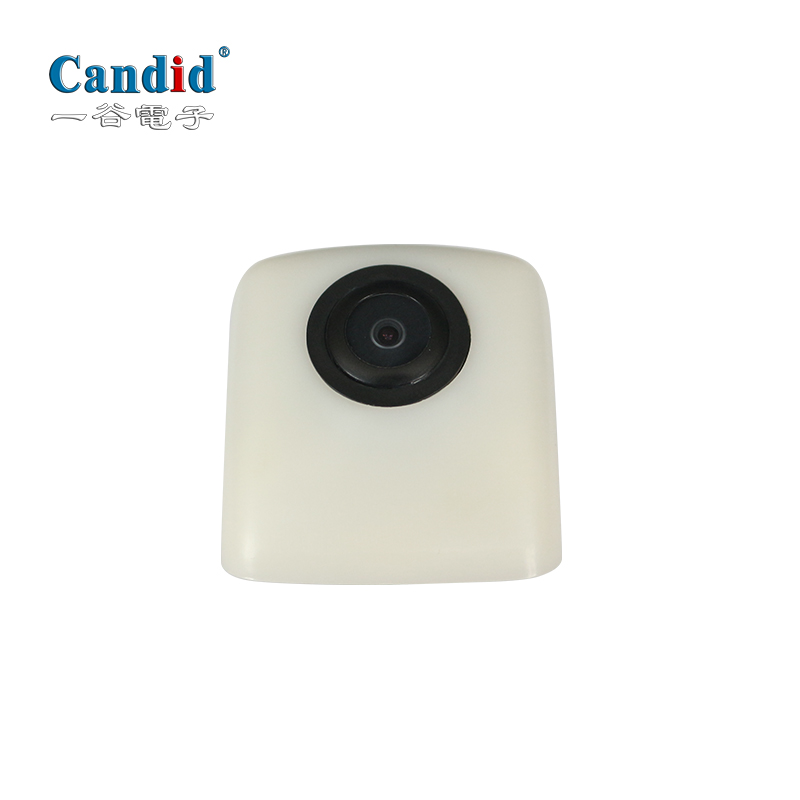

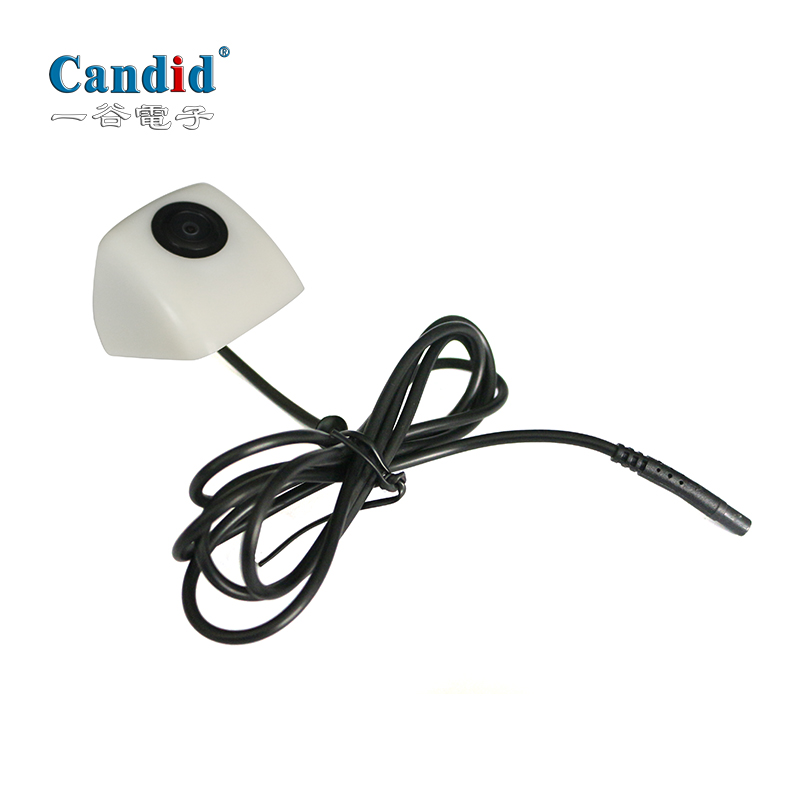

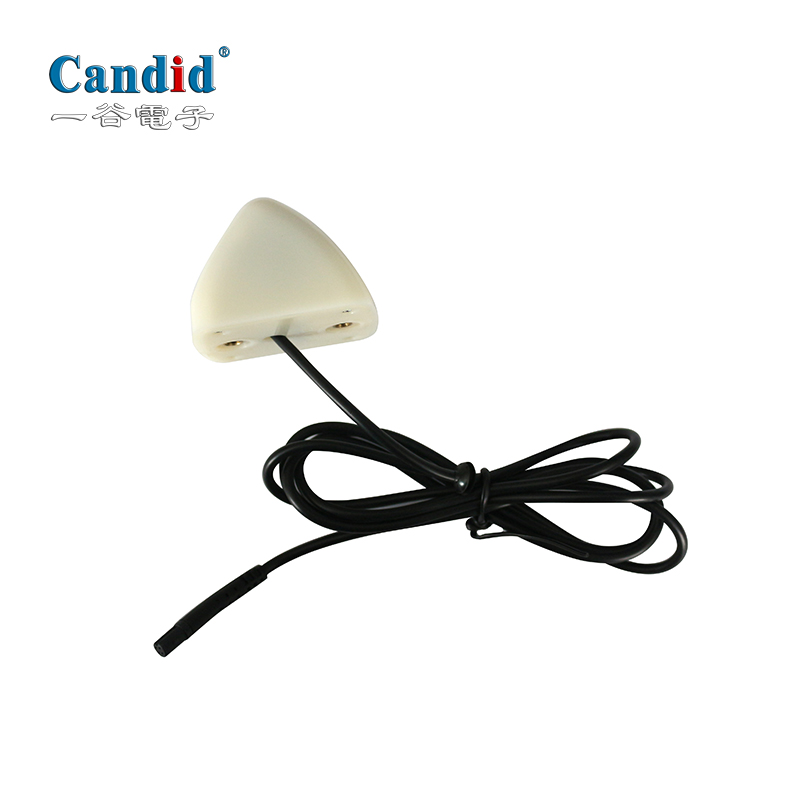

Car camera T-020
Features
This rear view camera features a customized CCD camera for car model Suzuki MUX, with OE high quality standard, and waterproof level of IP69K, this compact camera perfectly match the Suzuki MUX.
Features
Sharp CCD camera: clear and colorful image effect
Hidden camera: Suzuki MUX pickup customized design reverse camera
waterproof level:IP68K
DC power: 12V
Working Temperature: -20ºC ~ +70ºC
Parking line optional
Warranty: 18 months
Mirror/non-mirror image optional
NTSC/PAL available
Hidden camera: Suzuki MUX pickup customized design reverse camera
waterproof level:IP68K
DC power: 12V
Working Temperature: -20ºC ~ +70ºC
Parking line optional
Warranty: 18 months
Mirror/non-mirror image optional
NTSC/PAL available
Specifications
Car cameras T-020
| Image sensor | SHARP CCD |
| TV Mode | PAL/NTSC |
| Image Sensor | 1/3 inch 和1/4inch |
| Operation voltage range | DC12V(10-16V) |
| working current | 65mA±10mA |
| Power Consumption | 0.78W@ DC12 V |
| Video Output | 1±0.2 Vpp 75Ω |
| Pixels | PAL 795*595/NTSC 811*507 |
| USEFUL PIXELS | PAL 752*582/NTSC 768*494 |
| Minimum lllumination | 0.3Lux |
| Wide Dynamic | 80dB |
| Signal to Noise ratio | 51dB |
| resolution ratio | 430,000 Pixsls/ 370,000Pixsls |
| Gamma value | 0.45 |
| Lens angle | Max 170 |
| Shutter Speed | 1/60~1/100,000（second） |
| IRIS Method | Auto |
| waterproof level | IP67 |
| white balance | Auto |
| AGC | Auto |
| Backlight compensation | Auto |
| Operation Humidity | 85 RH% |
| Operation Temperature | -20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |
