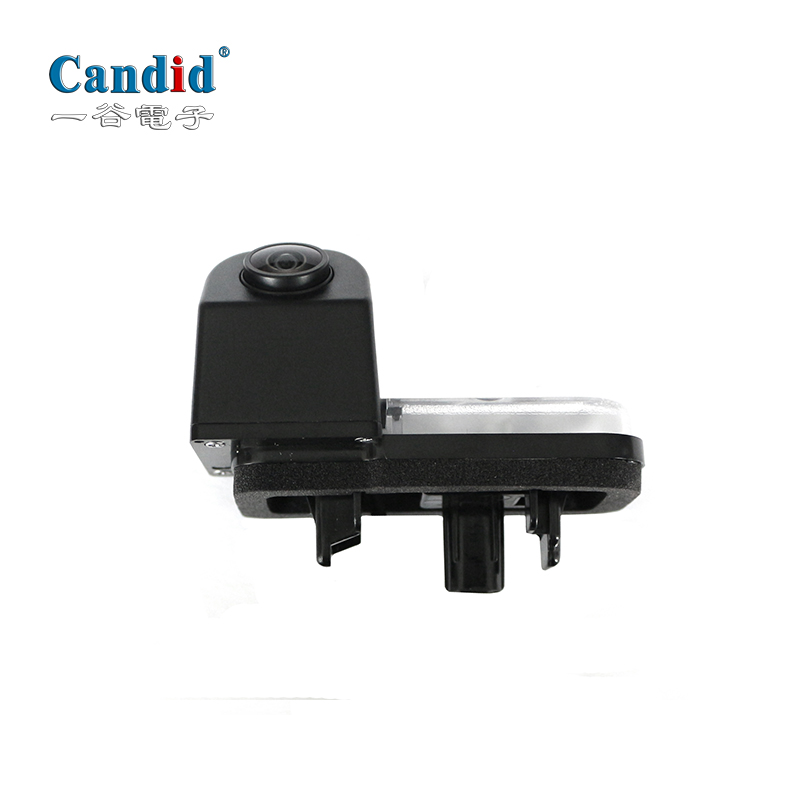

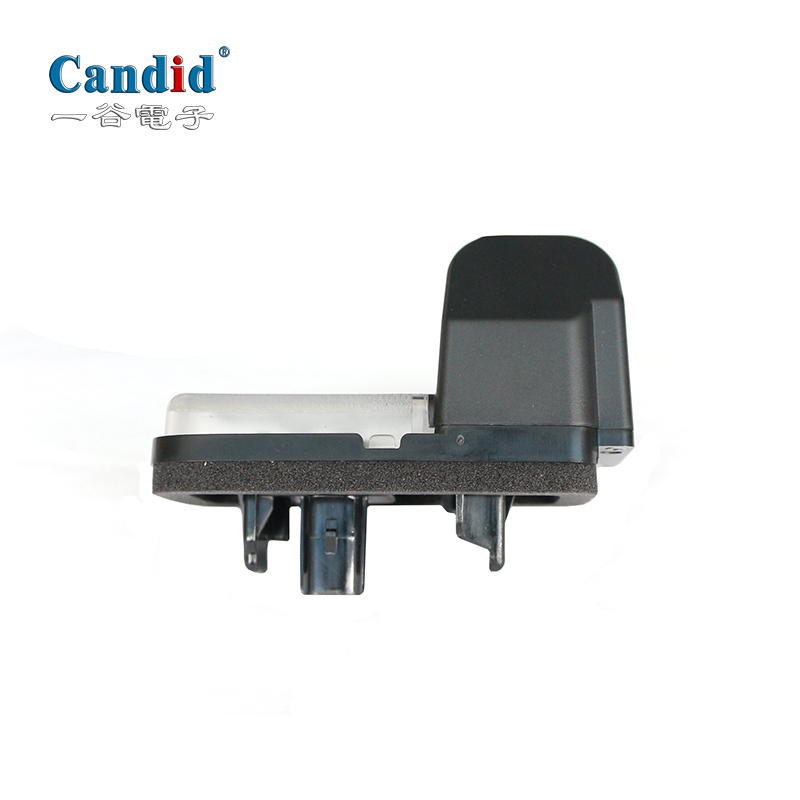

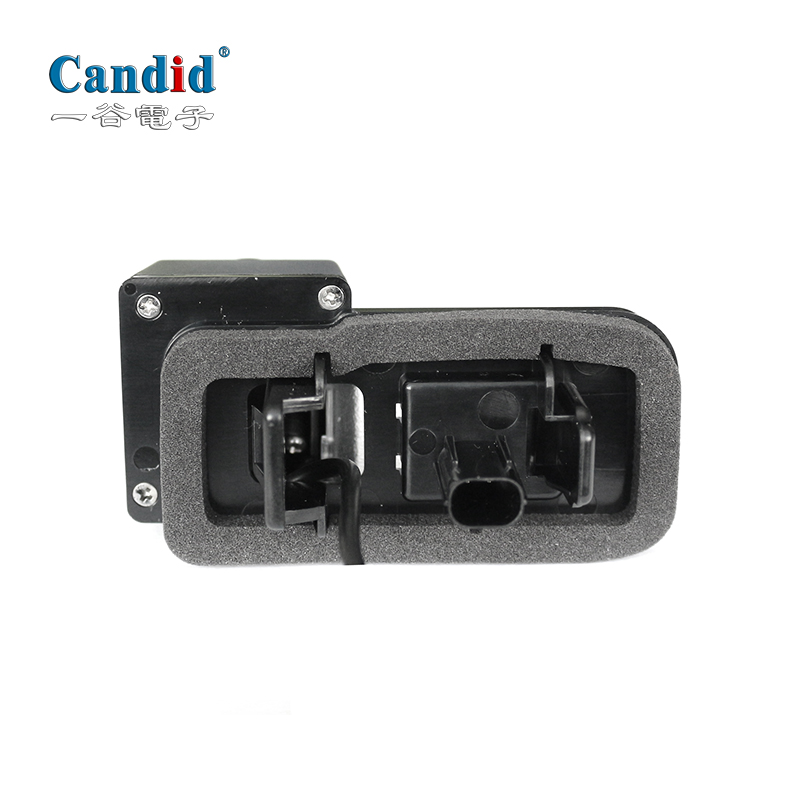

Car camera LC200

Features:
This rear view camera features a customized high quality reverse camera for car model Land Cruiser LC200, with OE quality standard, and waterproof level of IP69K,  this compact camera perfectly match Land Cruiser LC200.

Features

Hidden camera: Land Cruiser LC200 customized design reverse camera
Waterproof level: IP68K
DC power: 12V
Working Temperature: -20ºC ~ +70ºC
ASX 340 chipset, OE quality standard chipset
Easy installation, no need to drill any hole, no impact on vehicle's apprearance after installation
Warranty: 18 months
Mirror/non-mirror image optional
NTSC/PAL available


Specifications

ov car cameras
Image sensor                                                                        ASX 340
TV  Mode   PAL/NTSC
Image Sensor (1/4" 4:3 IT CMOS)
Operation voltage range DC12V(3.3-16V)
working current 34mA±10mA
Power Consumption 0.408 W @ DC12 V
Video Output 1±0.2 Vpp 75Ω
Pixels  728*560
USEFUL PIXELS 720*480
Minimum lllumination 1.0 Lux
Wide Dynamic 74.8dB
Signal to Noise ratio 46dB
resolution ratio 340,000 Pixsls
Gamma value 0.45
Lens angle Max 170
Shutter Speed 1/60~1/100,000(second)
IRIS Method Auto
waterproof level IP67
white balance Auto
AGC Auto
Backlight compensation Auto
Operation Humidity 85 RH%
Operation Temperature -20℃~ +70℃
Storage Temperature -40℃~+85℃
