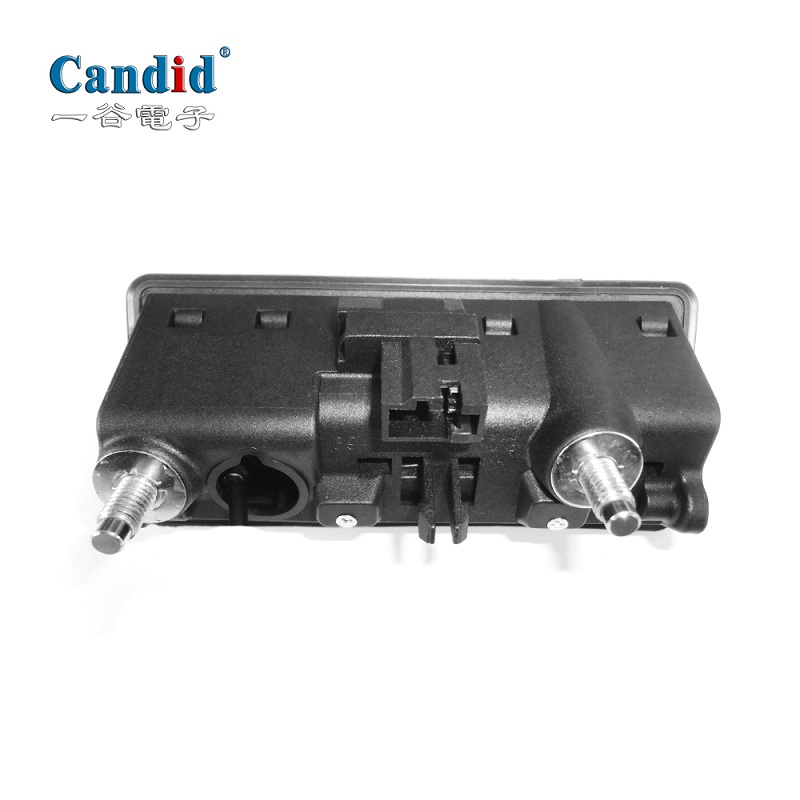

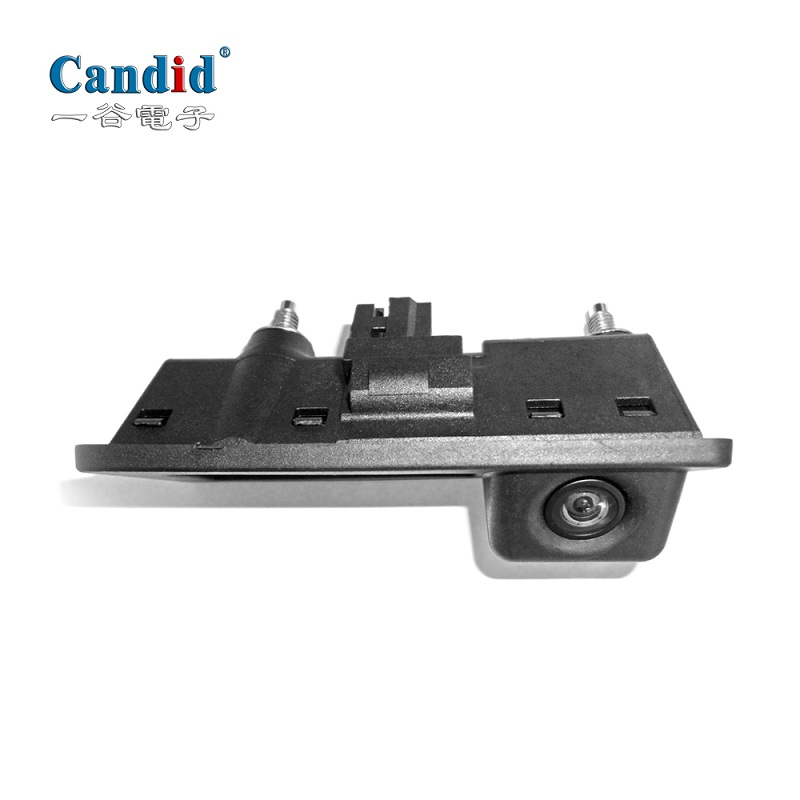

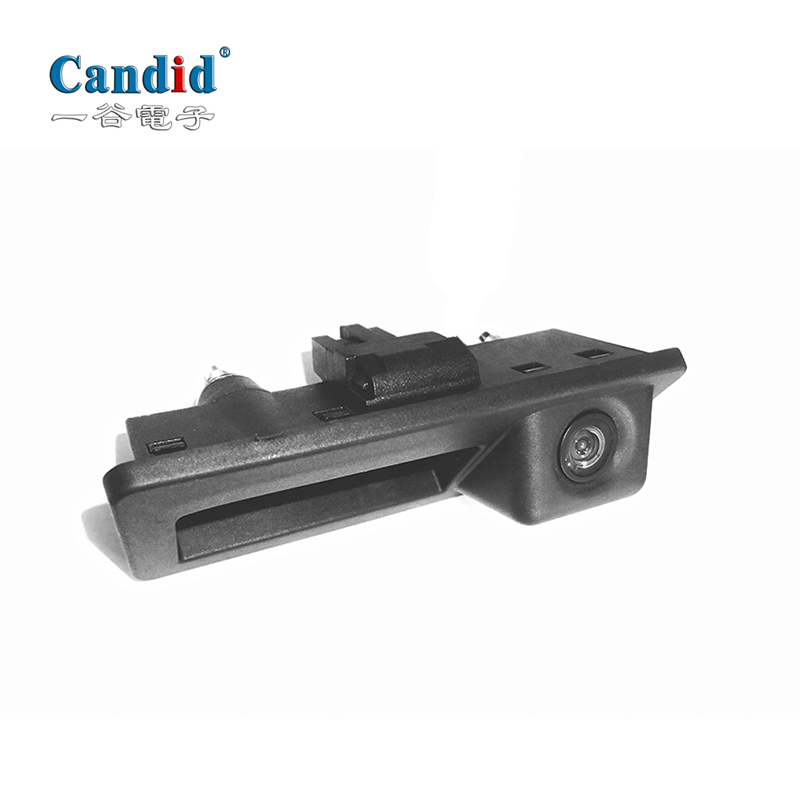

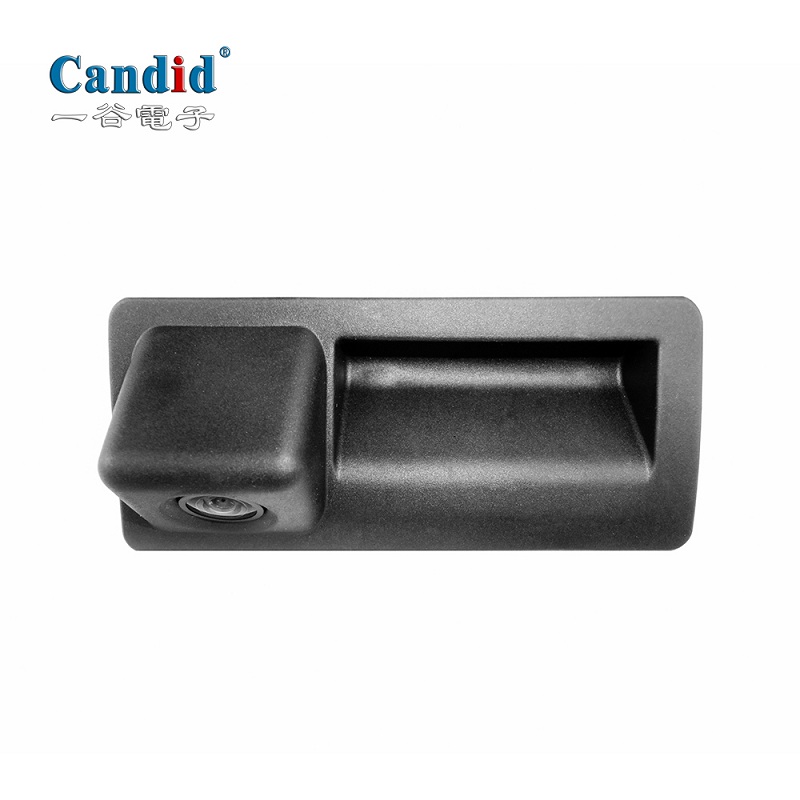

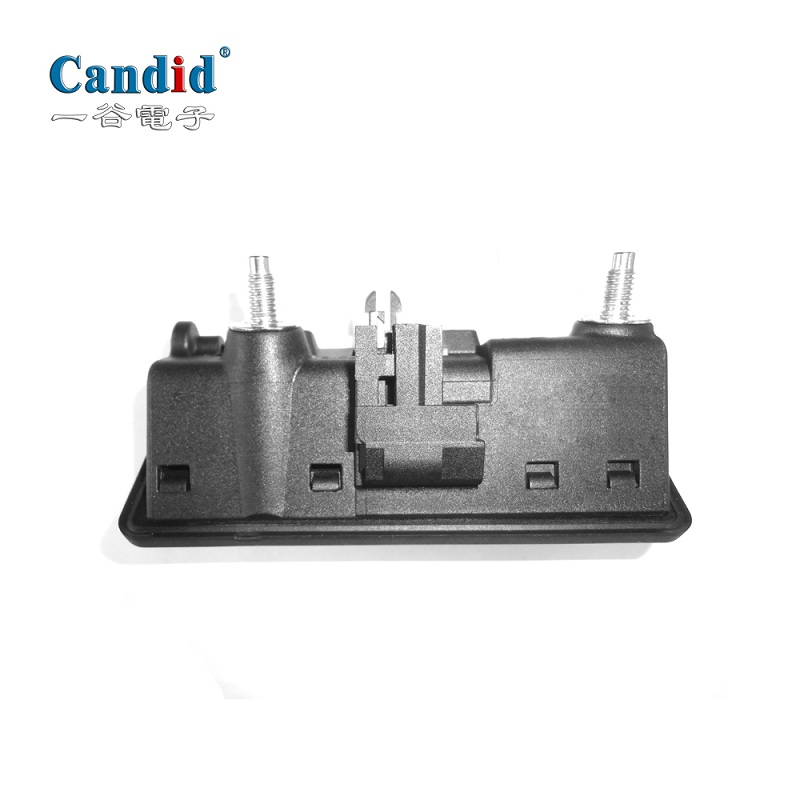

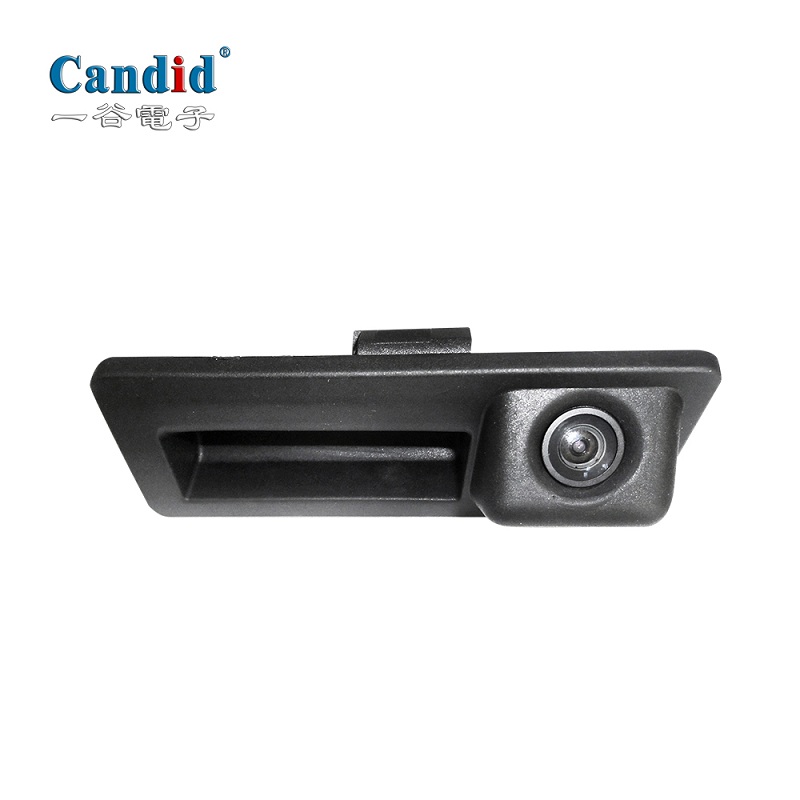

Car camera CA-701B sony car cameras parking line is optional
Features:
sony car cameras parking line is optional
This rear view camera features a customized high quality reverse camera for car model Spaceback、14-15 Superb 、14-16 OCTAVIA, with OE quality standard, and waterproof level of IP68K, this compact camera perfectly match Spaceback、14-15 Superb 、14-16 OCTAVIA.
sony car cameras parking line is optional
This rear view camera features a customized high quality reverse camera for car model Spaceback、14-15 Superb 、14-16 OCTAVIA, with OE quality standard, and waterproof level of IP68K, this compact camera perfectly match Spaceback、14-15 Superb 、14-16 OCTAVIA.

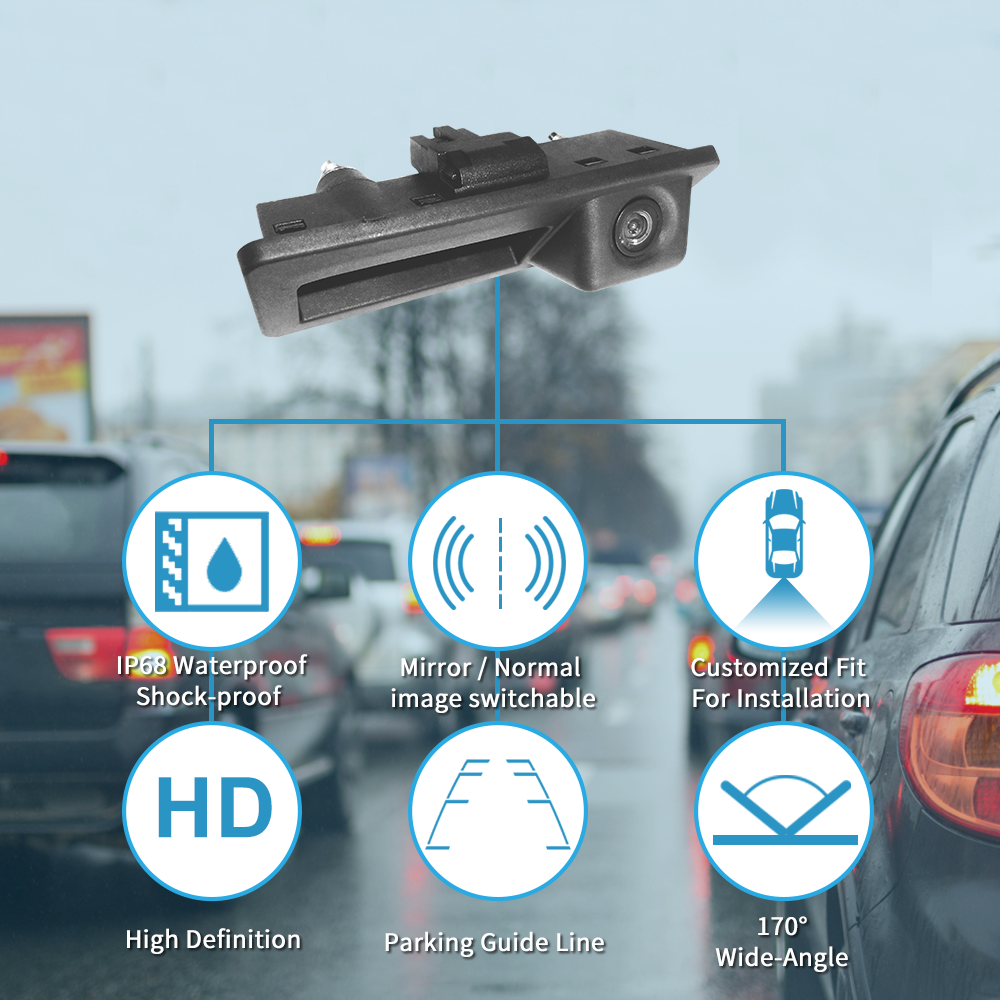

Features
sony car cameras parking line is optional
Hidden camera: customized design reverse camera for Spaceback、14-15 Superb 、14-16 OCTAVIA

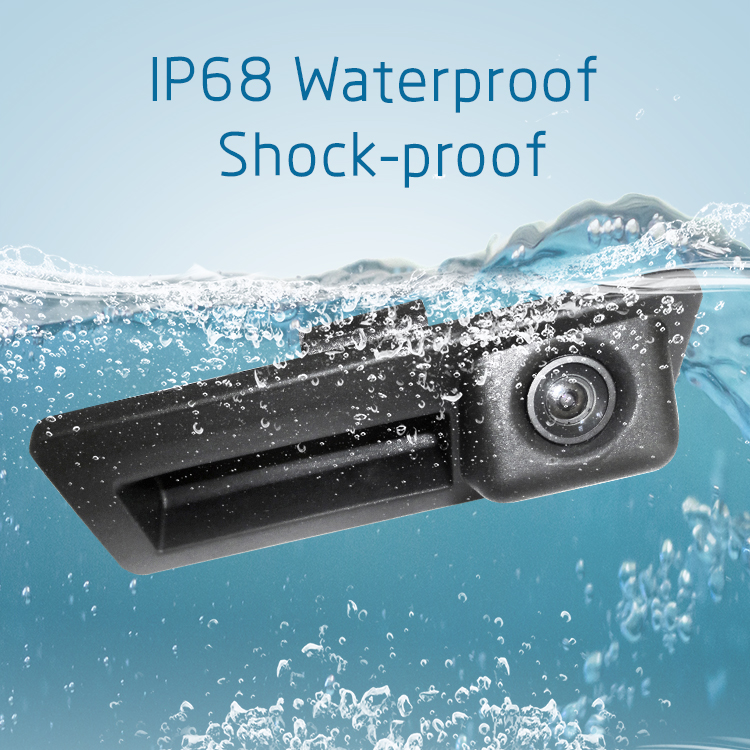

Waterproof level: IP68K
Low illumination

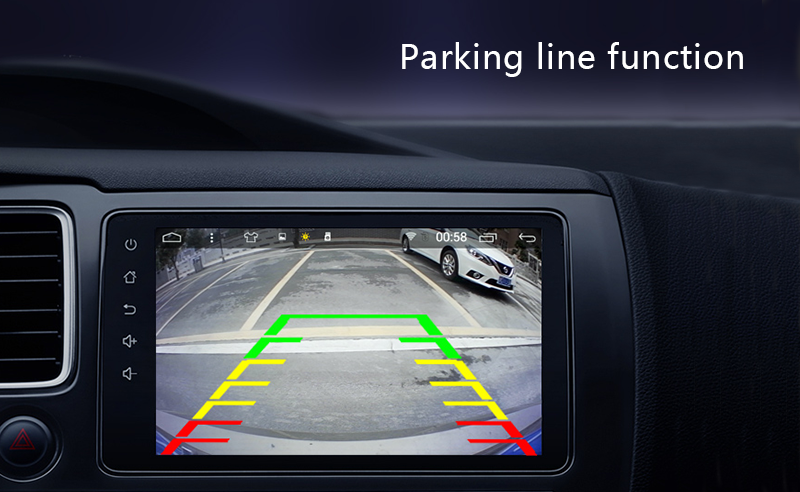

Parking line optional
CCD/CMOS Sensor optional
Easy installation, no need to drill any hole, no impact on vehicle's apprearance after installation
Warranty: 18 months
Mirror/non-mirror image optional
NTSC/PAL available
Specifications
sony car cameras
| Image sensor | SHARP CCD |
| TV Mode | PAL/NTSC |
| Image Sensor | 1/3 inch |
| Operation voltage range | DC12V(6-16V) |
| working current | 38.5mA±10mA |
| Power Consumption | 0.462W@ DC12 V |
| Video Output | 1±0.2 Vpp 75Ω |
| Pixels | 756*504 |
| USEFUL PIXELS | 720*480 |
| Minimum lllumination | 0.4Lux |
| Wide Dynamic | 62.9dB |
| Signal to Noise ratio | 47.1dB |
| resolution ratio | 340,000 Pixsls |
| Gamma value | 0.45 |

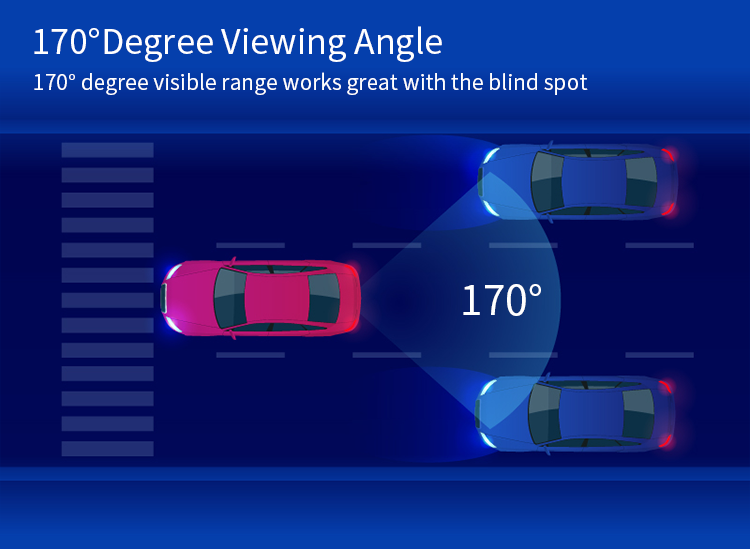

| Lens angle | Max 170 |
| Shutter Speed | 1/60~1/100,000（second） |
| IRIS Method | Auto |
| waterproof level | IP67 |
| white balance | Auto |
| AGC | Auto |
| Backlight compensation | Auto |
| Operation Humidity | 85 RH% |
| Operation Temperature | -20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |
Applications
Accessories
