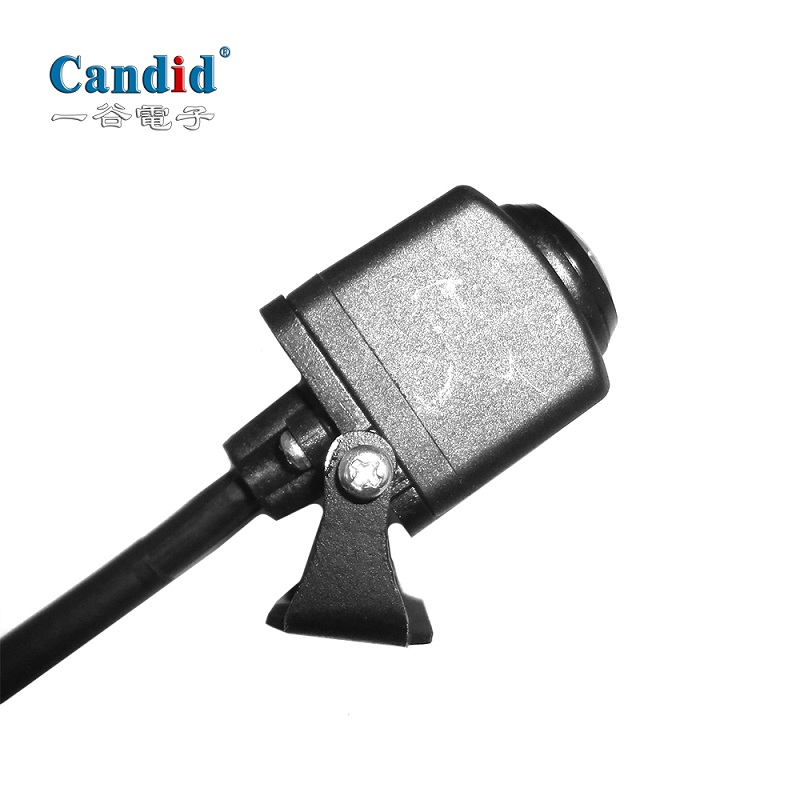

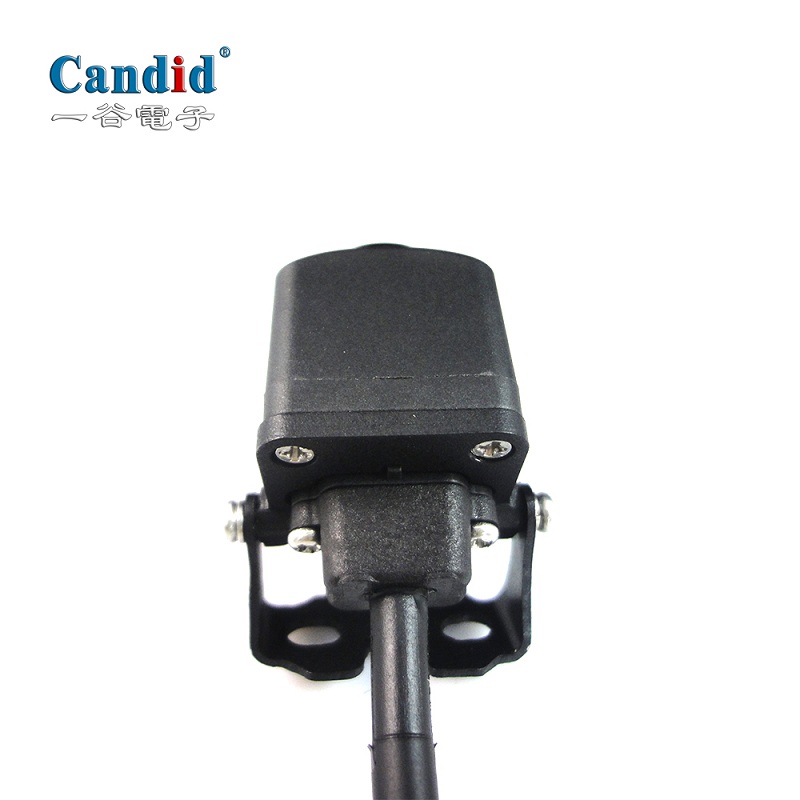

Car camera CA-309
Car camera CA-309 (ultra wide angle IP68 waterfroof )
.jpg)
.png)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg?imageView2/1/w/116/w/74)
.png?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
Features
Features：
1.192 degree fisheye ultra-wide view angle,
2.OE high quality standard
3.IP69K waterproof

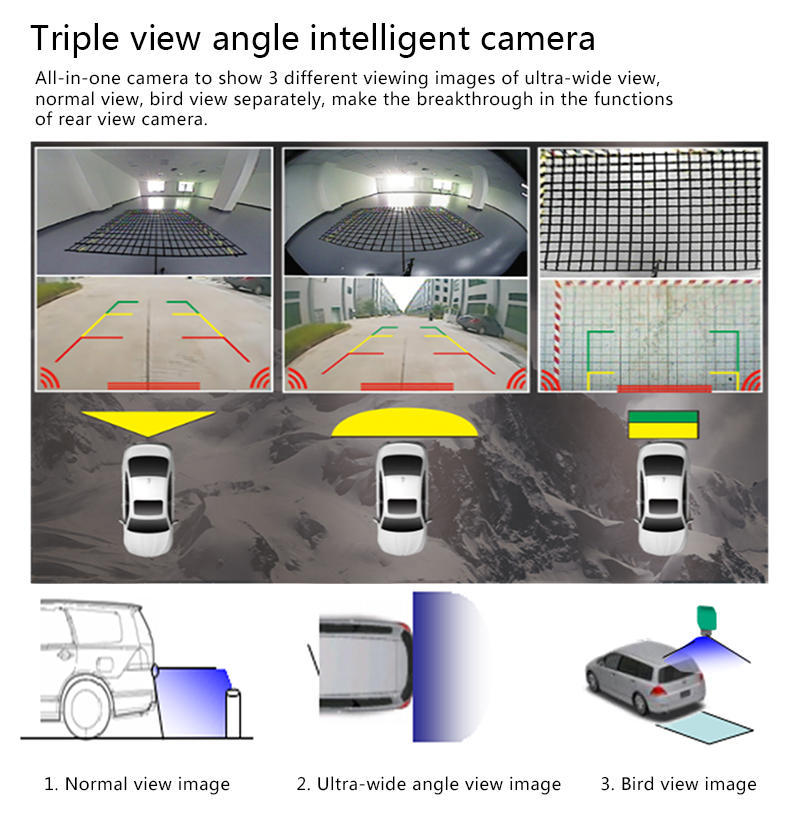

4.Parking line rear view camera
1.192 degree fisheye ultra-wide view angle,
2.OE high quality standard
3.IP69K waterproof
4.Parking line rear view camera
Specifications
passenger vehicle car cameras
| Image sensor | ASX 340 |
| TV Mode | PAL/NTSC |
| Image Sensor | （1/4" 4:3 IT CMOS） |
| Operation voltage range | DC12V(3.3-16V) |
| working current | 34mA±10mA |
| Power Consumption | 0.408 W @ DC12 V |
| Video Output | 1±0.2 Vpp 75Ω |
| Pixels | 728*560 |
| USEFUL PIXELS | 720*480 |
| Minimum lllumination | 1.0 Lux |
| Wide Dynamic | 74.8dB |
| Signal to Noise ratio | 46dB |
| resolution ratio | 340,000 Pixsls |
| Gamma value | 0.45 |
| Lens angle | Max 170 |
| Shutter Speed | 1/60~1/100,000（second） |
| IRIS Method | Auto |
| waterproof level | IP67 |
| white balance | Auto |
| AGC | Auto |
| Backlight compensation | Auto |
| Operation Humidity | 85 RH% |
| Operation Temperature | -20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |
.jpg)

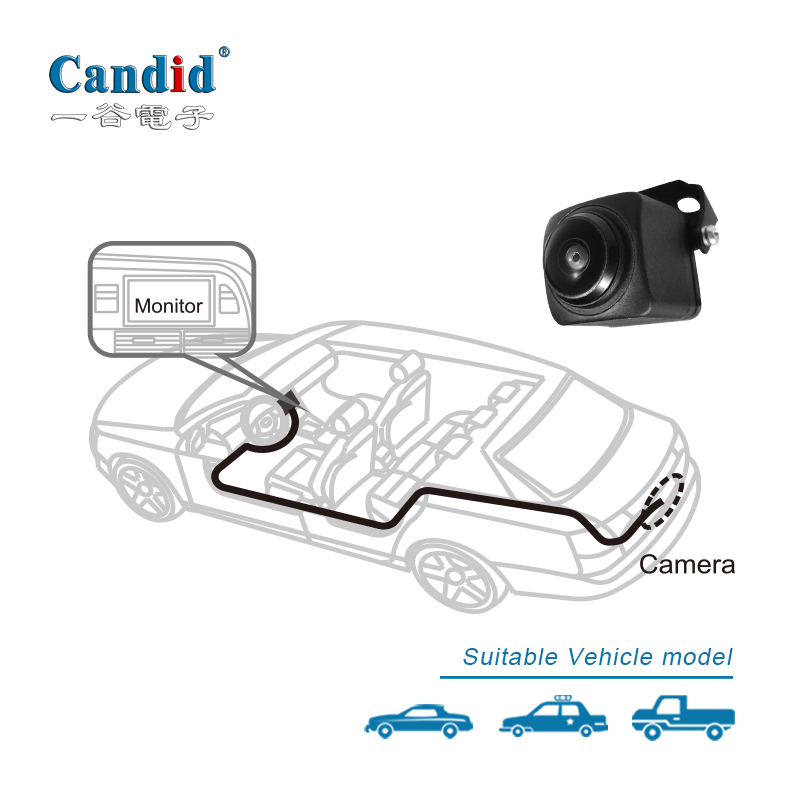

Applications
Accessories
.jpg)
