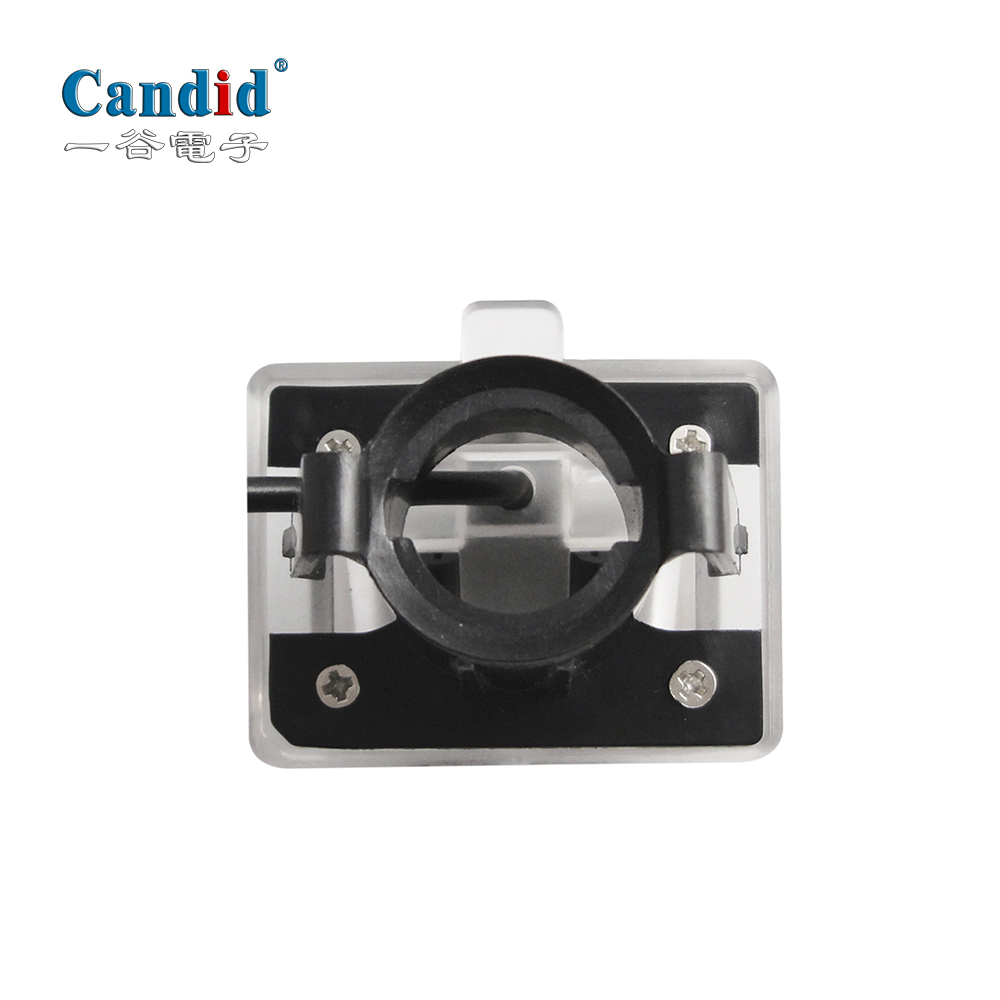

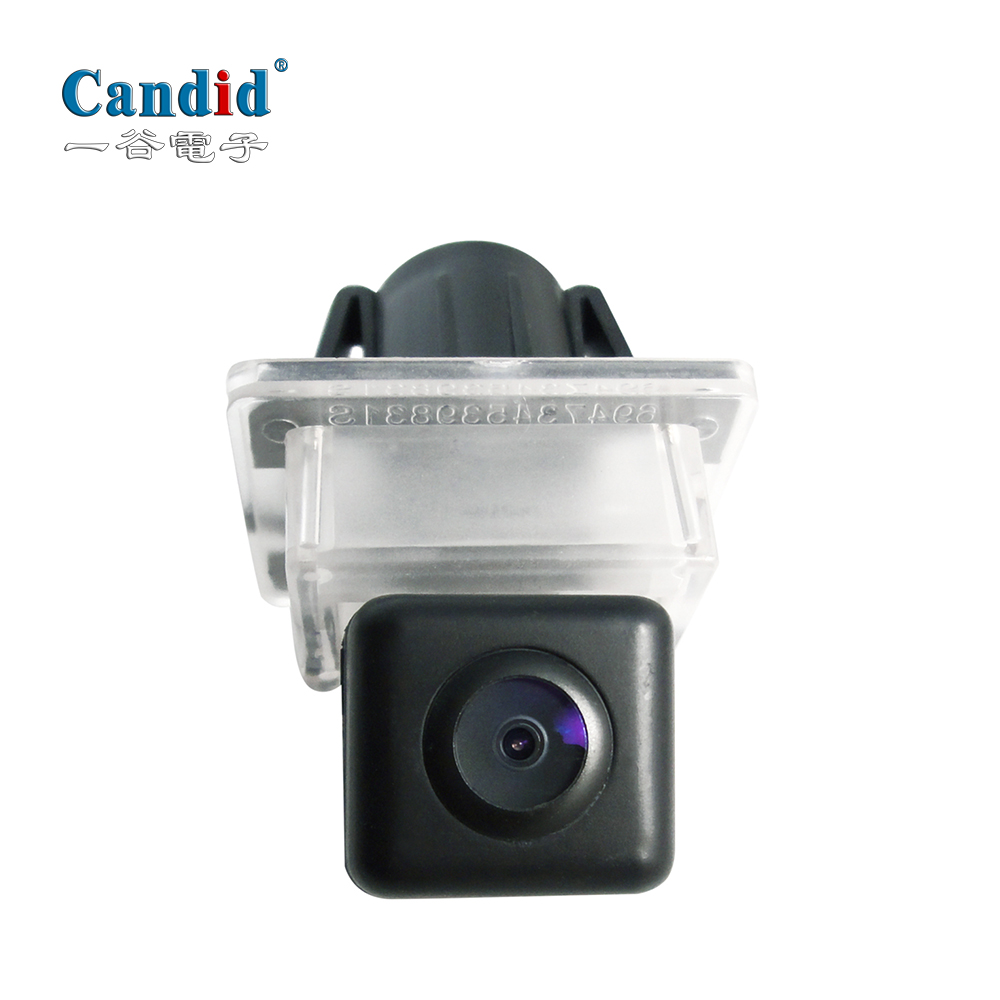

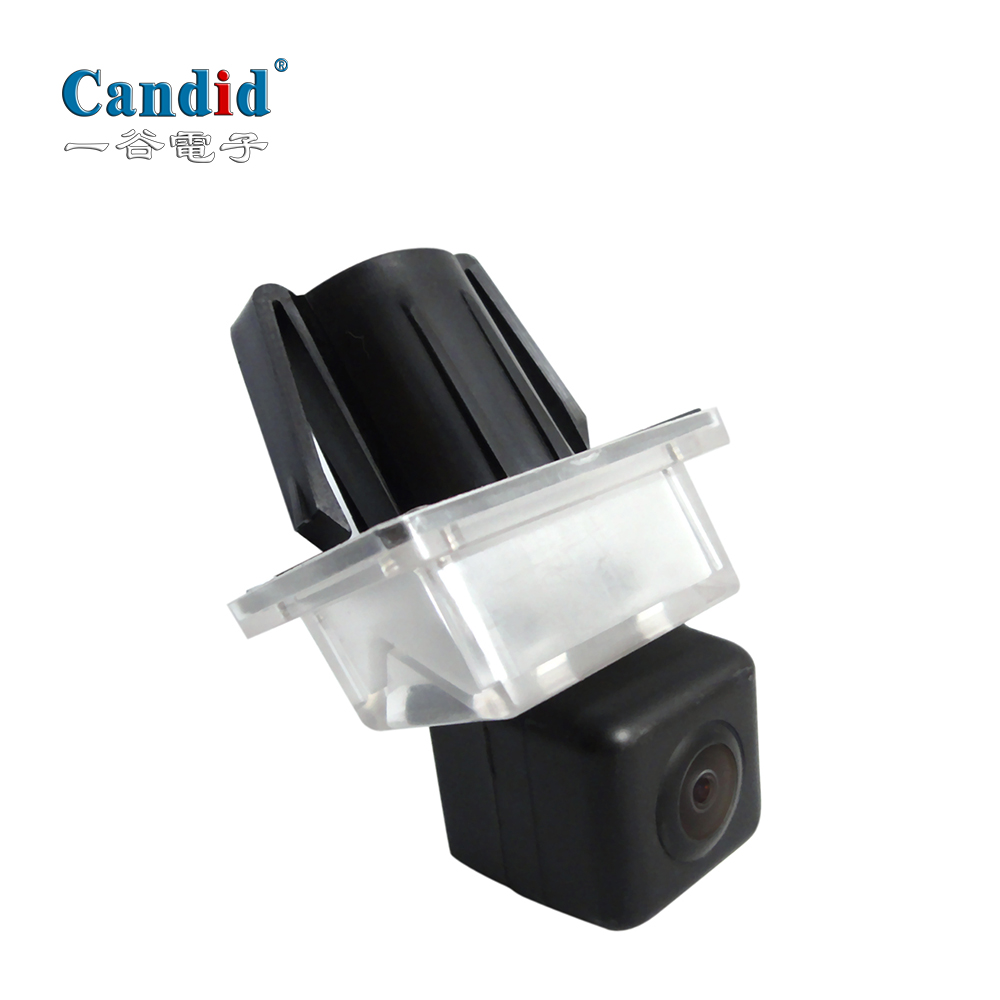

Candid hidden backup camera for BMW E C series
Car Handle Rear View Reverse Camera backup for BMW E C series
.jpg)
.jpg)
.jpg)
.jpg)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
Features

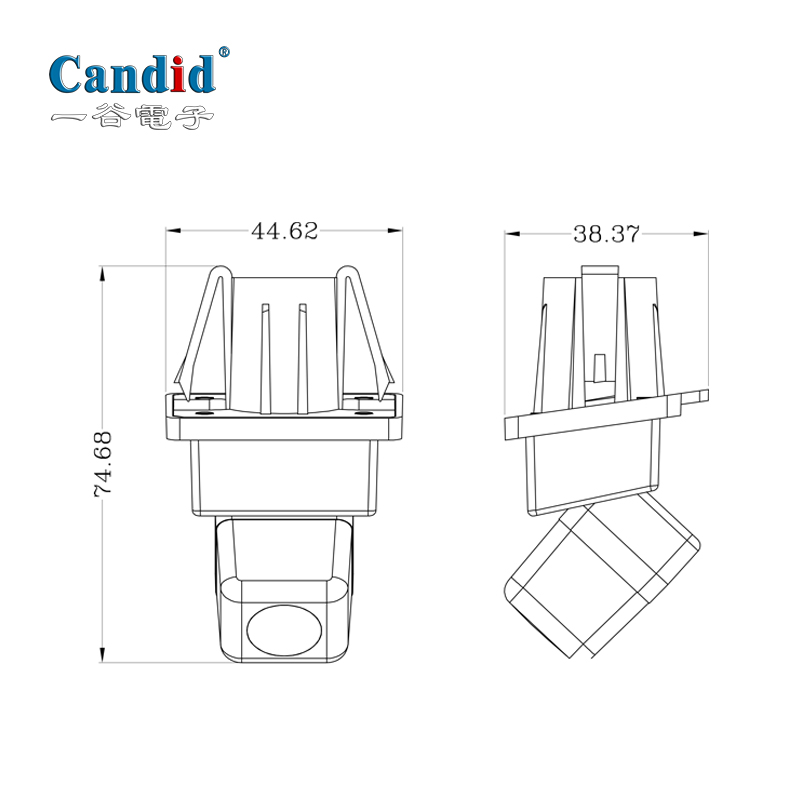

1.The housing is special design for BMW E C series, perfect match .
2.Image sensor AHD/ CCD/CVBS optional.
3.170 degree Ultra wide angle lens,simple and easy to install .
4.Effective pixels: 752*582.
5.TV system: NTSC/PAL optional..
2.Image sensor AHD/ CCD/CVBS optional.
3.170 degree Ultra wide angle lens,simple and easy to install .
4.Effective pixels: 752*582.
5.TV system: NTSC/PAL optional..
Specifications
Replacement camera forBMW E C series, CCD camera provide the high definition camera image.
| Image sensor | Sharp CCD |
| TV Mode | PAL/NTSC |
| Image Sensor | 1/3 inch or 1/4inch |
| Operation voltage range | DC12V(10-16V) |
| working current | 65mA±10mA |
| Power Consumption | 0.78W@ DC12 V |
| USEFUL PIXELS | PAL 752*582/NTSC 768*494 |
| Minimum lllomination | 0.3Lux |
| Wide Dynamic | 80dB |
| Signal to Noise ratio | 51dB |
| resolution ratio | 430,000 Pixsls/ 370,000Pixsls |
| Gamma value | 0.45 |
| camera angle | Max 150 |
| waterproofing grade | IP68 |
| white balance | Auto |
| Backlight compensation | Auto |
| Operation Humidity | 85 RH% |
| Operation Temperature | -20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |
.png)
Applications
.jpg)
.jpg)
.jpg)
.jpg)
.png)
.png)
.png)
.png)
Accessories
