8-Channel Blind Spot Monitoring System for Vehicles
8-channel MDVR System revolutionizes vehicle safety with 360° Blind Spot Monitoring—inside and out! Equipped with HD cameras, a display screen and a hard disk recorder. Sufficient for full-process monitoring during loading, transportation, and unloading.
Features
1080P two million HD video effects.
Support HD AHD1080P, 720P, CVBS and other video format mixed input.
Support hard disk (up to 2TB) and SD (up to 512GB) card recording.
Advanced bare disk + pre-partitioned storage technology.
8-channel alarm input (door opening, lighting, steering, braking, reversing and other types can be configured).
Software upgrades can be made via SD card.
Support online playback of video files and computer playback.
Each camera screen is supported, and the left and right mirror functions can be set independently.
Specifications
| Working system | Embedded Linux |
| Working voltage |
8V-36V |
| Video input | CVBS |
| Channels | 8 |
| SD | SD video card slot (without SD card) |
| Hard disk | Support 2.5 inch HDD, up to 4TB HDD (without HDD) |
|
USB |
USB flash drive interface |
| Control | remote control |
| Pixsls | 1080P |
| Power |
＜5W |
| Working temperature | -30℃ to +70℃ |
Applications

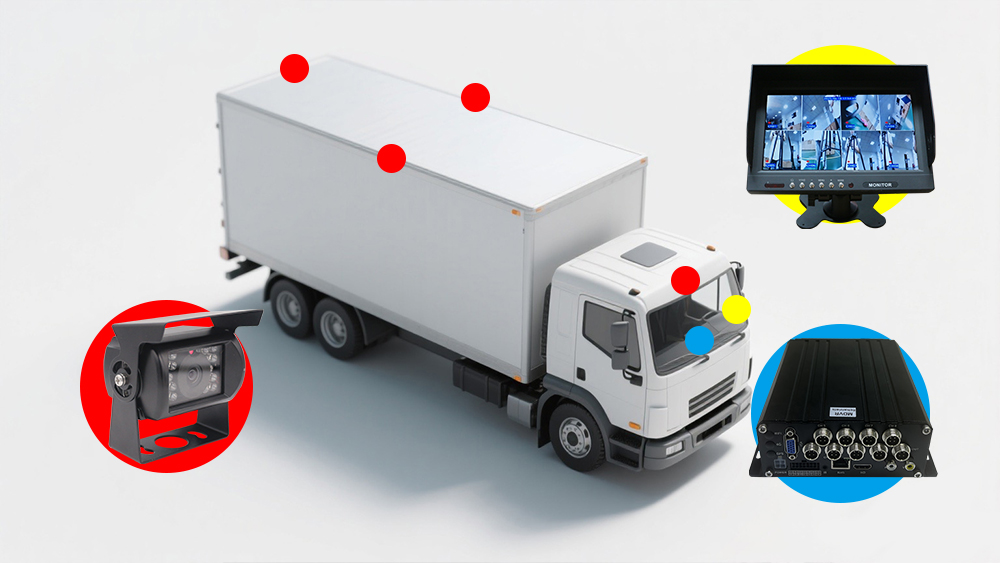

4 high-definition cameras–Side-mounted on the exterior

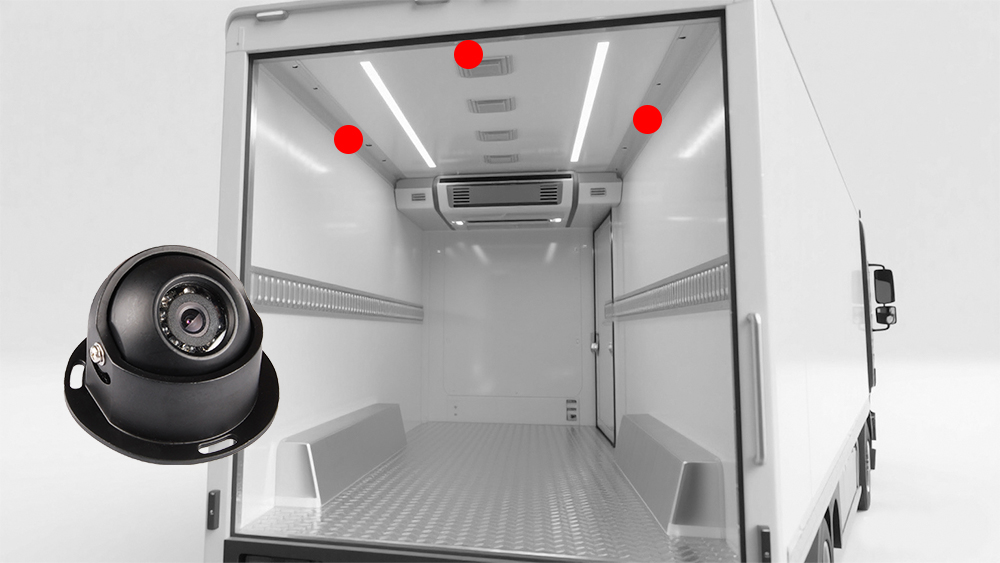

4 infrared night-vision cameras–Rear-mounted inside the cabin
