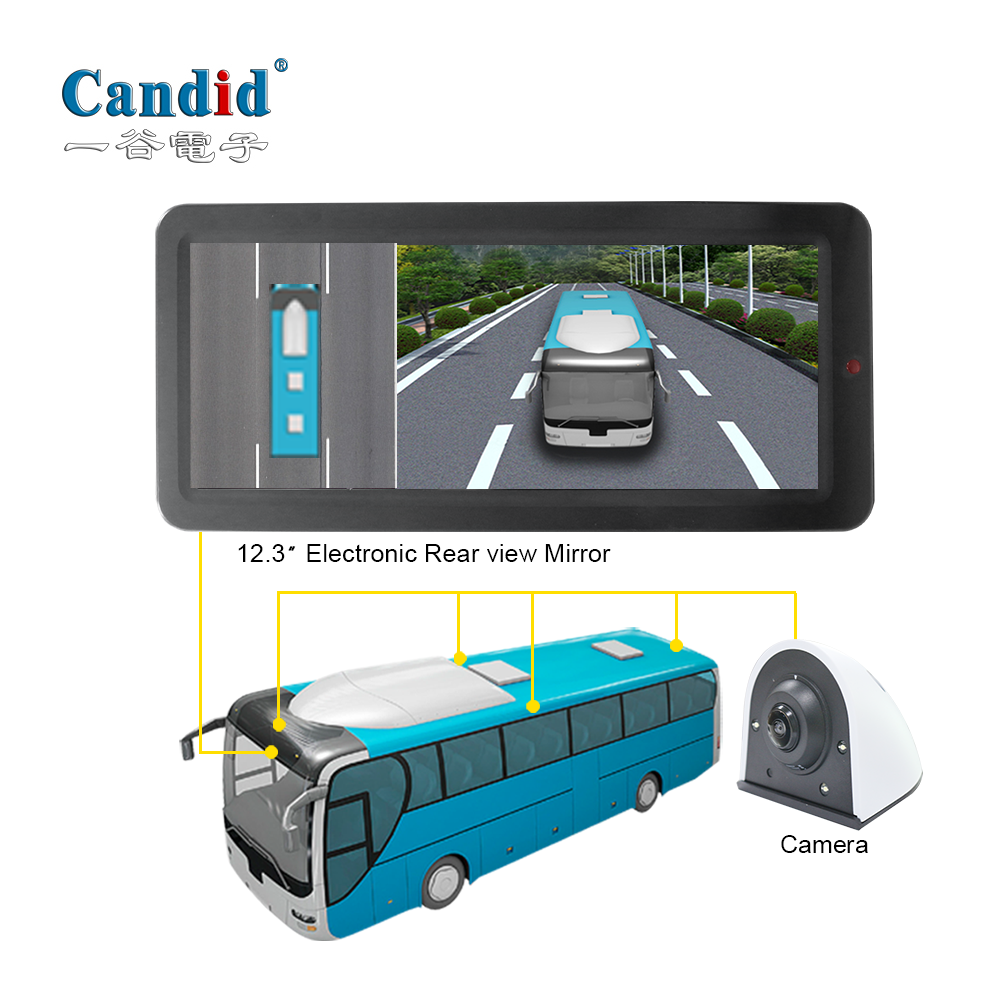

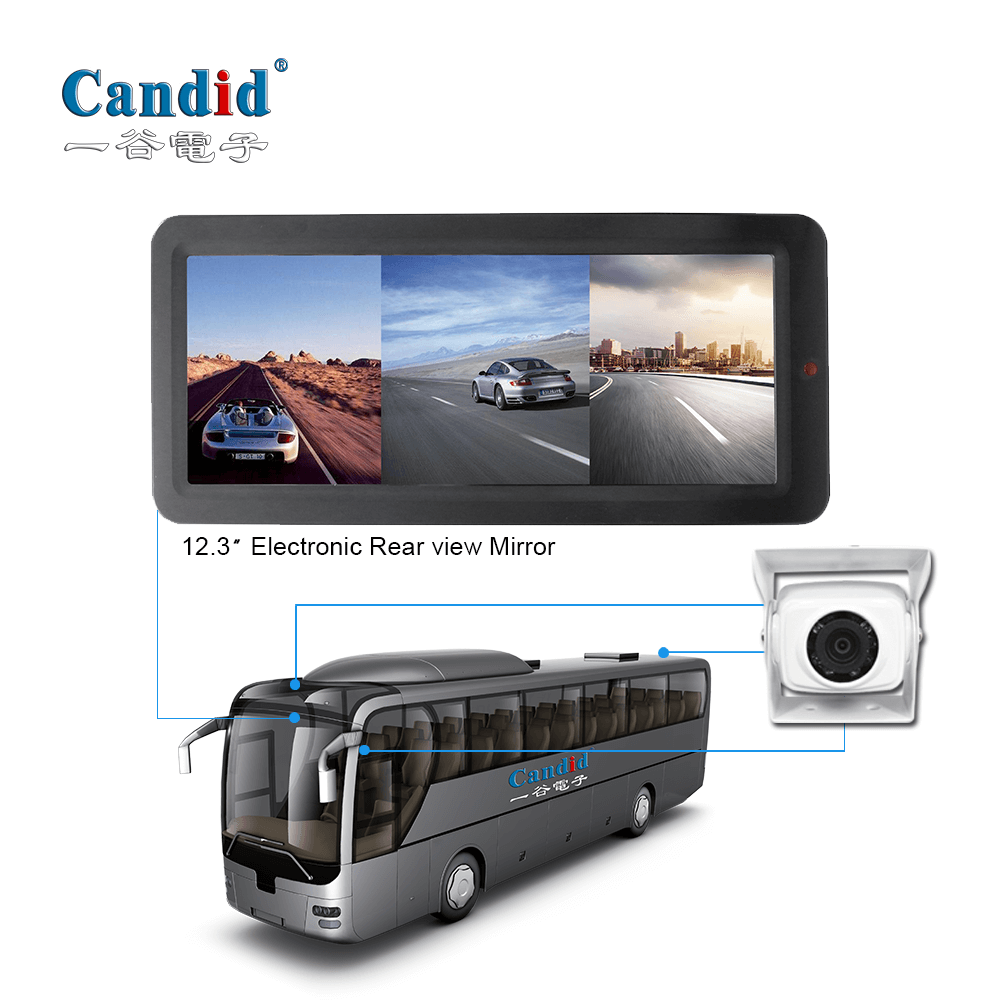

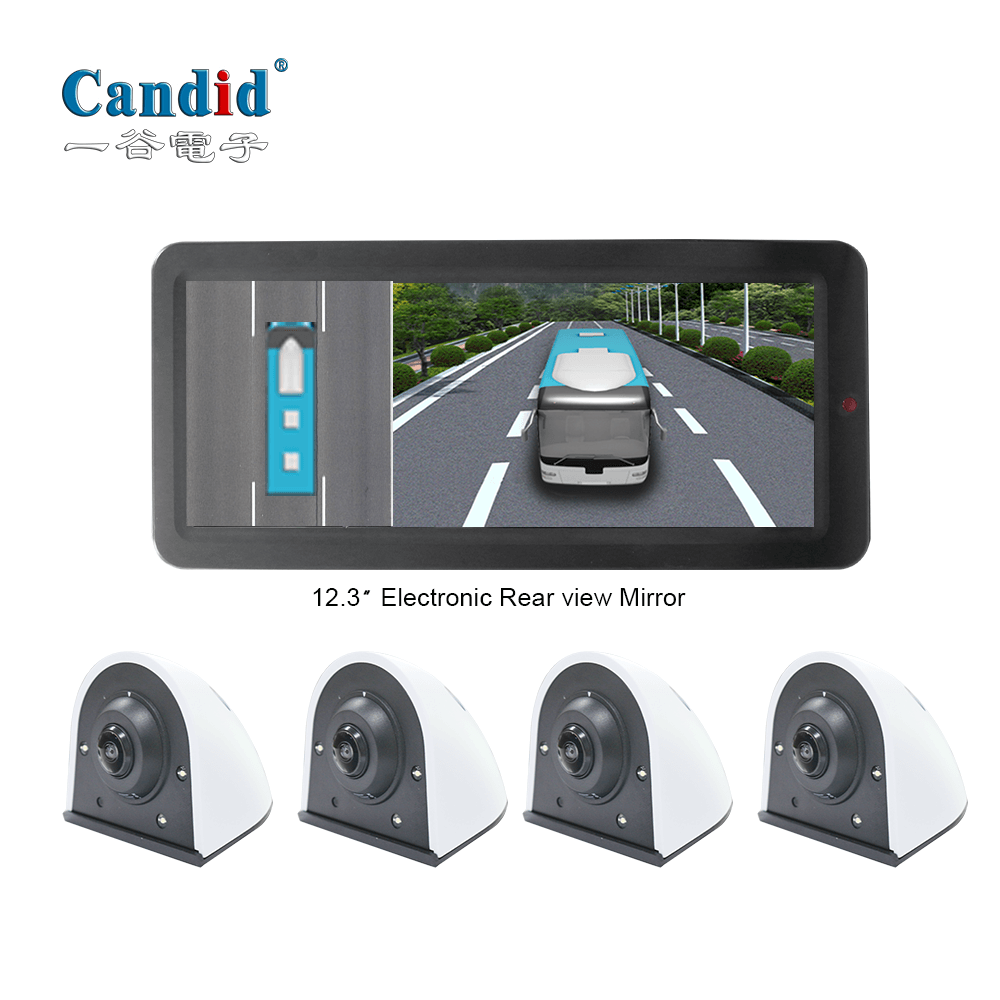

12.3" electronic rear view mirror blind spot detection monitor system

Best choice to support drivers view & detect blind spots with warning, the system can compatible with various safety driving products. We welcome your inquiry!

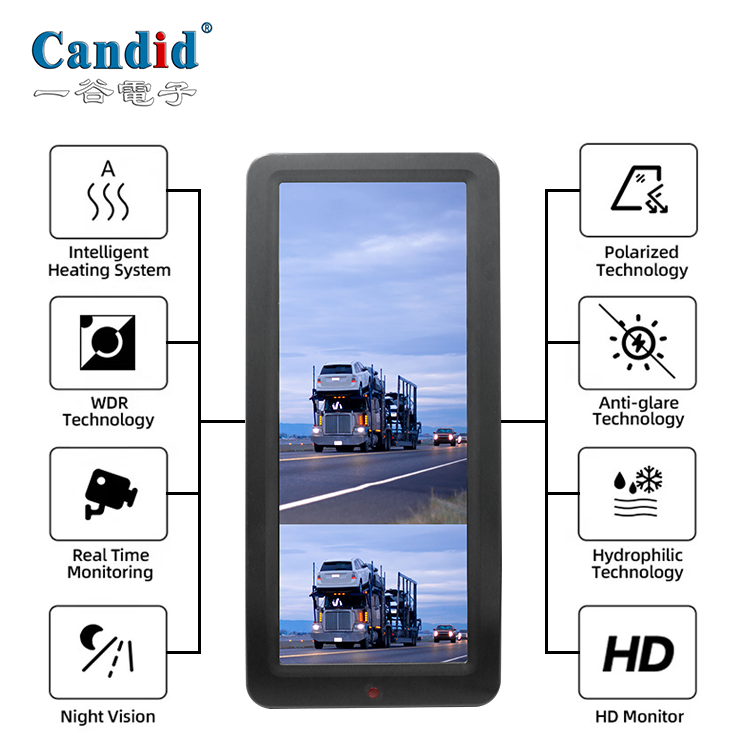

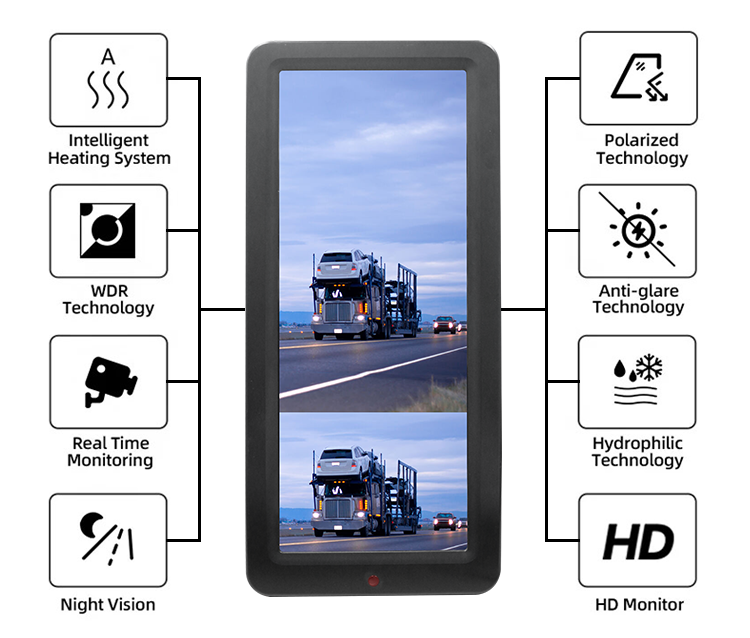

Features

1. 4CH x 1080P vedio input/output
2. Compatible with hybrid input of CVBS and AHD signals

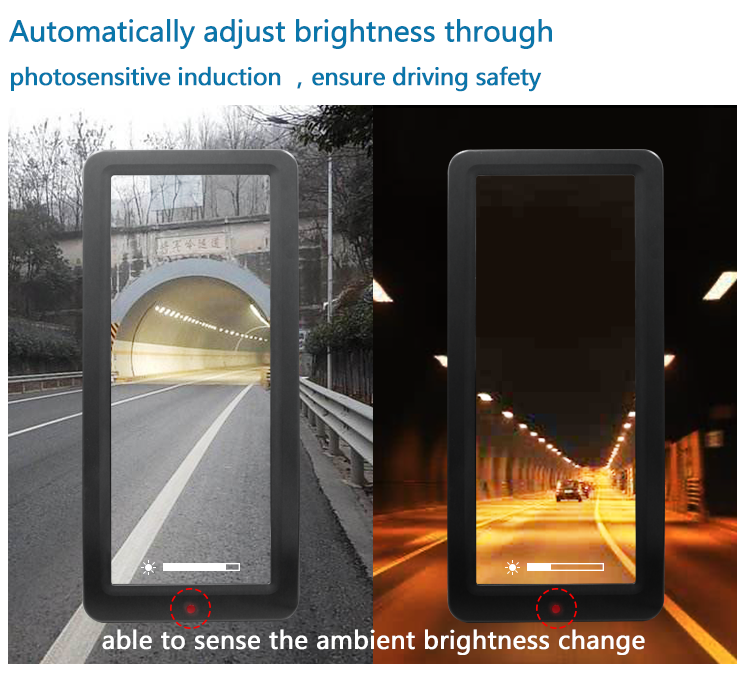

3. Automatic backlight adjustment.
5. Driving video recording starts once the syestem is powered on, driver will be reminded by the screen display if the camera is disconnected or no SD card inserted.
6. Resolution ratio: 1920RGB(H)X720(V).
7. Brightness: 700cd/m2.
8. EMC-R46 quality standard.
9. Super wide voltage : DC 12V-32V
10. Customized develop with specific requirement

Specifications

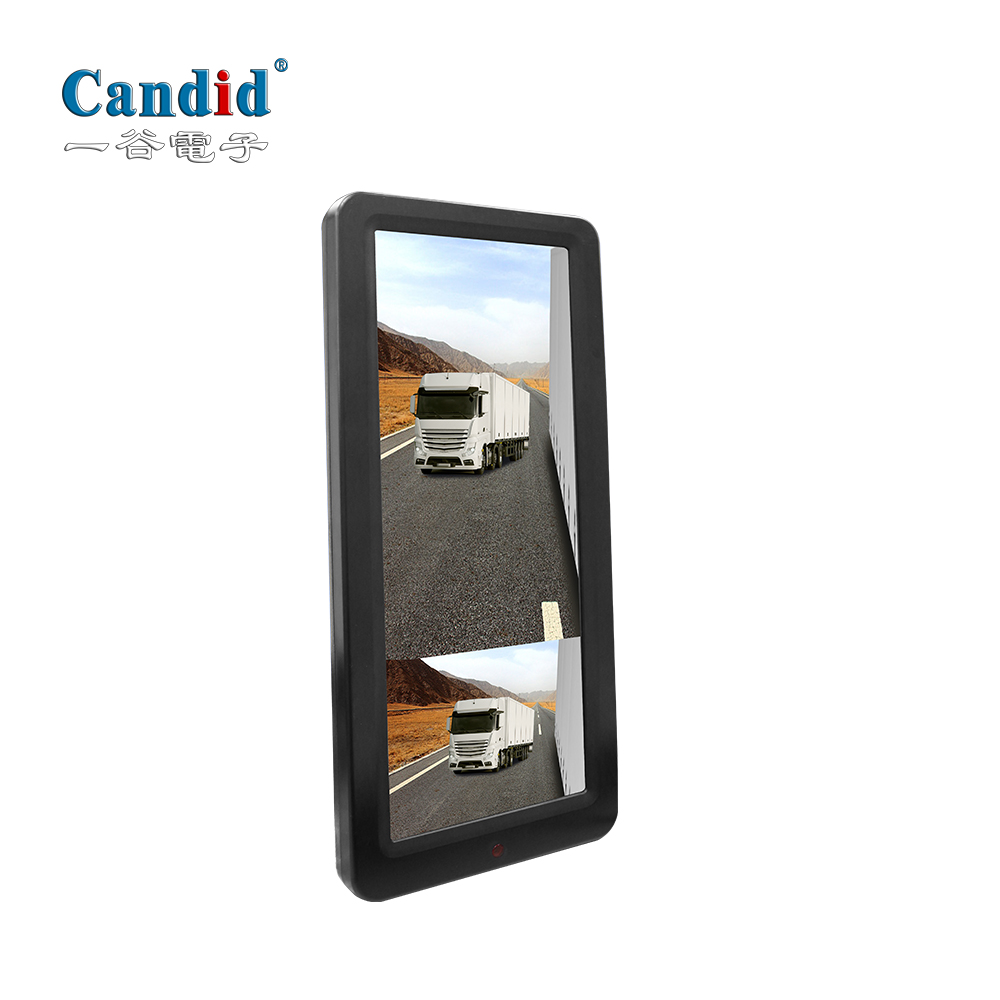

12.3 inch E-Mirror Monitor Specifications:
Screen type TFT

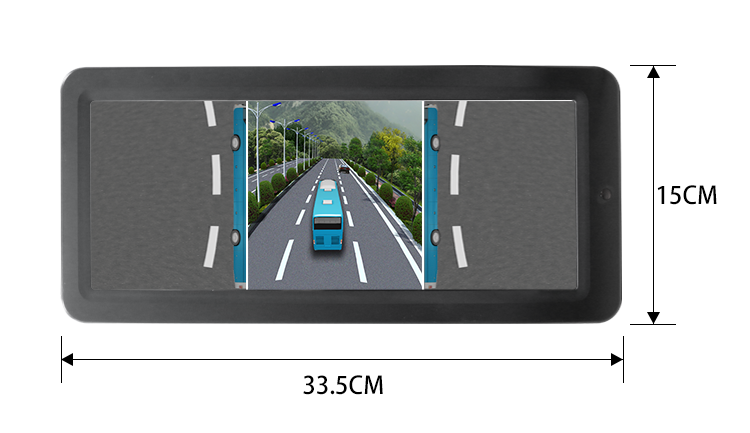

Screen size 12.3"(8:3)
Screen Resolution ratio 1920 RGB (H)×720(V)

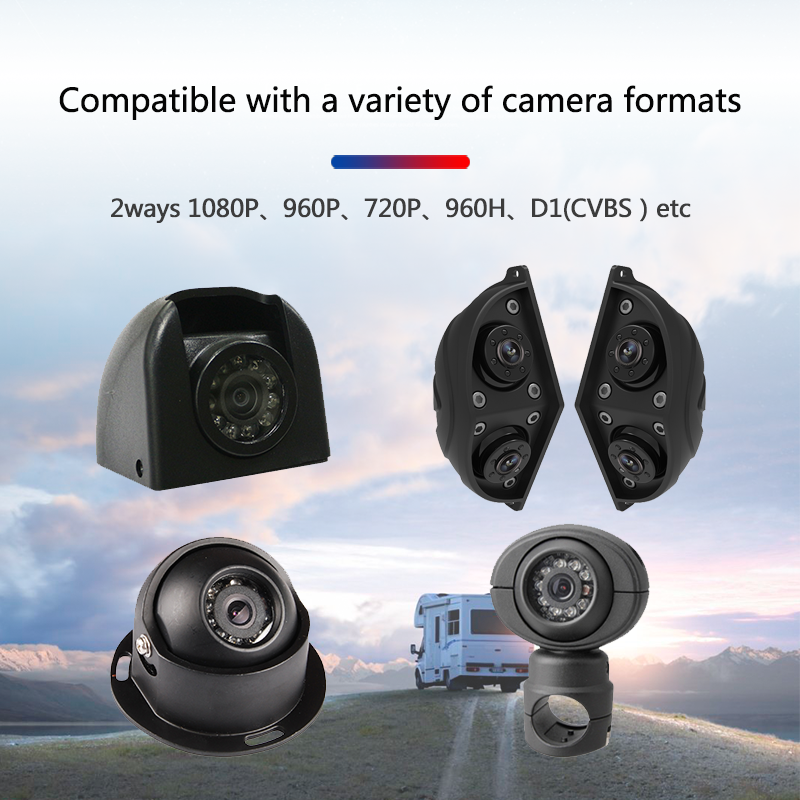

Video input 2-way HD, 2-way SD, 1-way HD + 1-way SD, compatible with both PAL and NTSC input

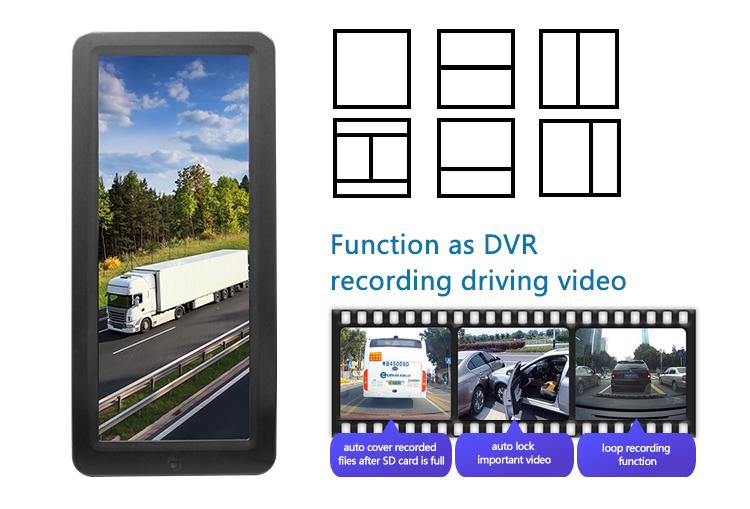

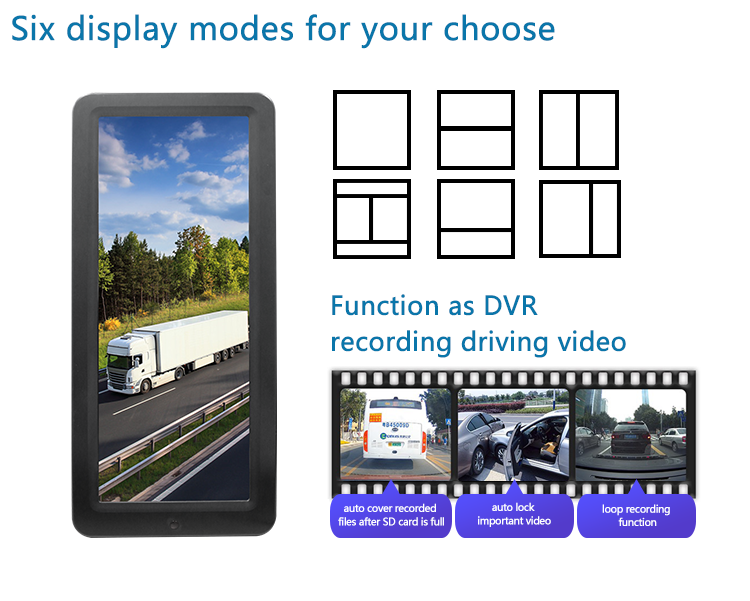

Preview function 12 kinds of multi display mode splitting Preview
Video resolution 1920*1080
Video quality Super clear, high definition, standard, ordinary level, total 4 video output modes are available
recording mode Power on automatic recording
audio input Supports 1 channel audio input,CH1 Aviation connector(optional)
Memory card TF card, maximum support 512G, cycling recording
Upgrade mode support upgrade system by TF card
input voltage DC:+12V ~+30V
working temperature  -30℃ to +70℃
working relative humidity 20% to +80%(RH)

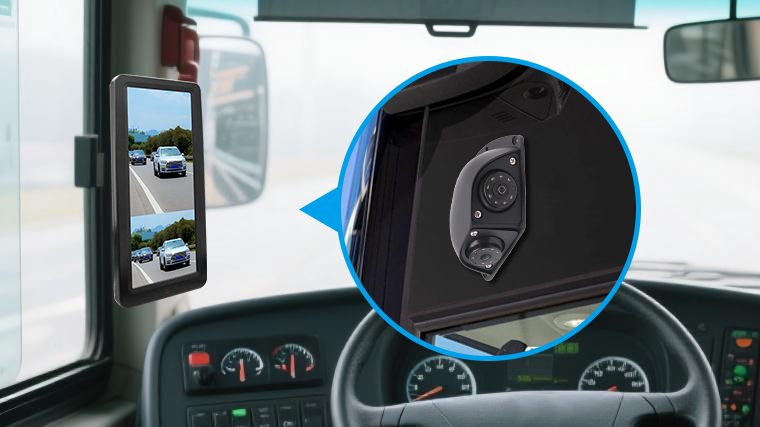

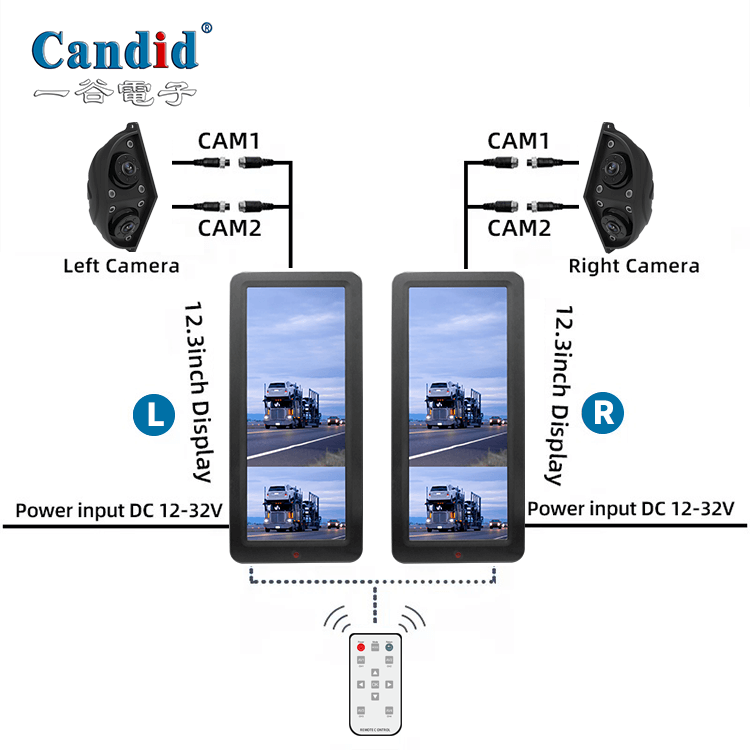

Dual lens side view camera Specifications:
image Sensor                                                                            SONY IMX307 (AHD)
TV  Mode  PAL/NTSC
Image Sensor 1/2.8 inch
Operation voltage range DC12V(7.5-16V)
working current 94mA±10mA
Power Consumption        1.128W DC12 V
Video Output 1.3±0.2Vpp 75Ω
USEFUL PIXELS 1920*1080
Minimum lllomination             0.01Lux
Signal to Noise ratio 46dB
resolution ratio 1080p
Operation Temperature           -20℃~ +70℃
Storage Temperature
Lens angle
-40℃~+85℃
Horizontal 74°/56°





Applications
