Microwave radar-BSD (77G)
Features:

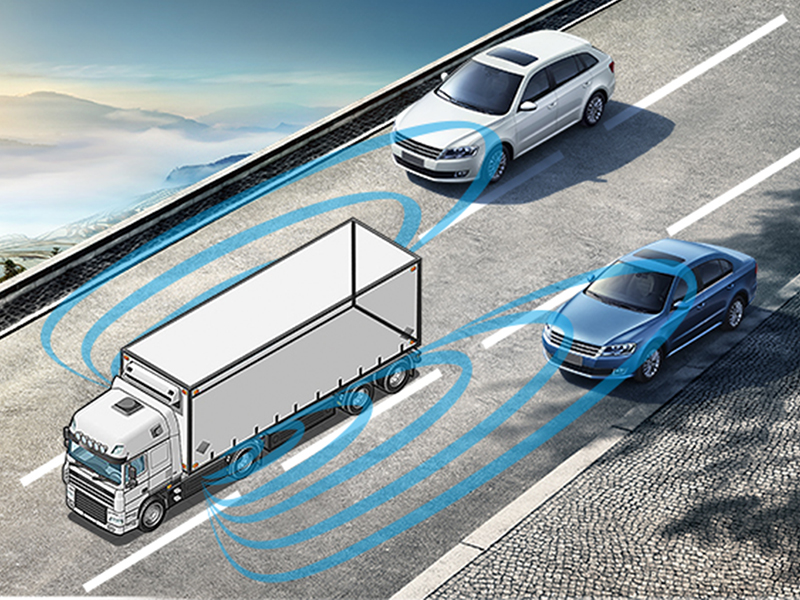

This BSD (blind spot detection) system is used for detecting the objects in the blind area of the rear and side field of the vehicle when you are driving. When a vehicle (or other moving object) enters into the detection range, the BSD system will alert the driver with LED light blinking or/and Buzzer sound beeping to let the driver knows the safe timing for lane change and reversing, thus significantly lower the potential risks of collision accidents and save lives. It can also be applied for the purpose of vandalproof and antiriot for safeguard when you stay in a car.
This BSD (blind spot detection) system is used for detecting the objects in the blind area of the rear and side field of the vehicle when you are driving. When a vehicle (or other moving object) enters into the detection range, the BSD system will alert the driver with LED light blinking or/and Buzzer sound beeping to let the driver knows the safe timing for lane change and reversing, thus significantly lower the potential risks of collision accidents and save lives. It can also be applied for the purpose of vandalproof and antiriot for safeguard when you stay in a car.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
Features
77G Hz, super high sensitive microwave radar sensor
Work under all kinds of weather and brightness condition
Suitable for both high speed and low speed driving status

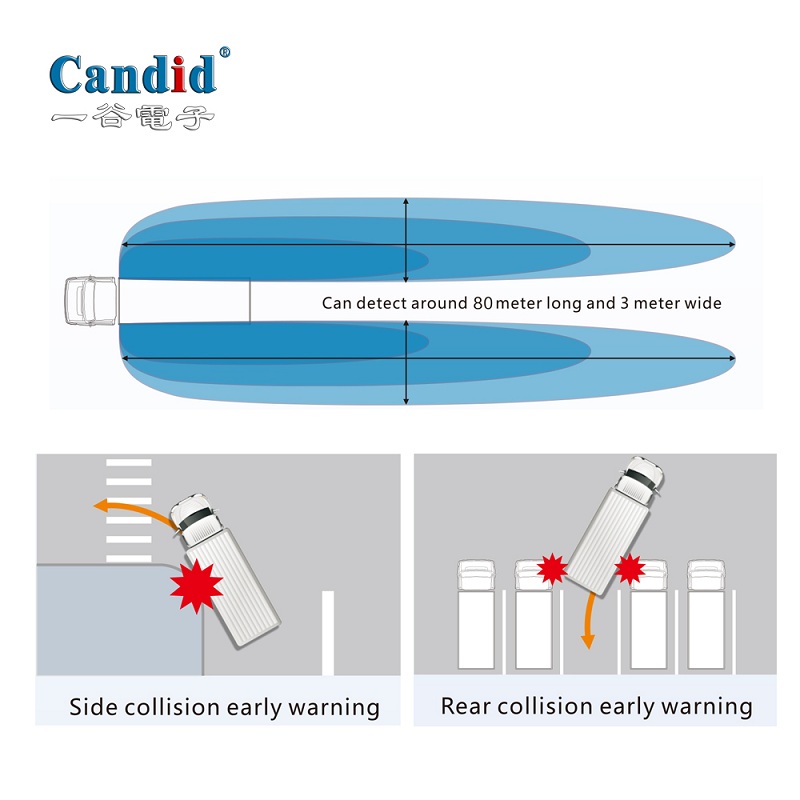

Super Wide Detection range: 3x80 meters covering side and rear blind area

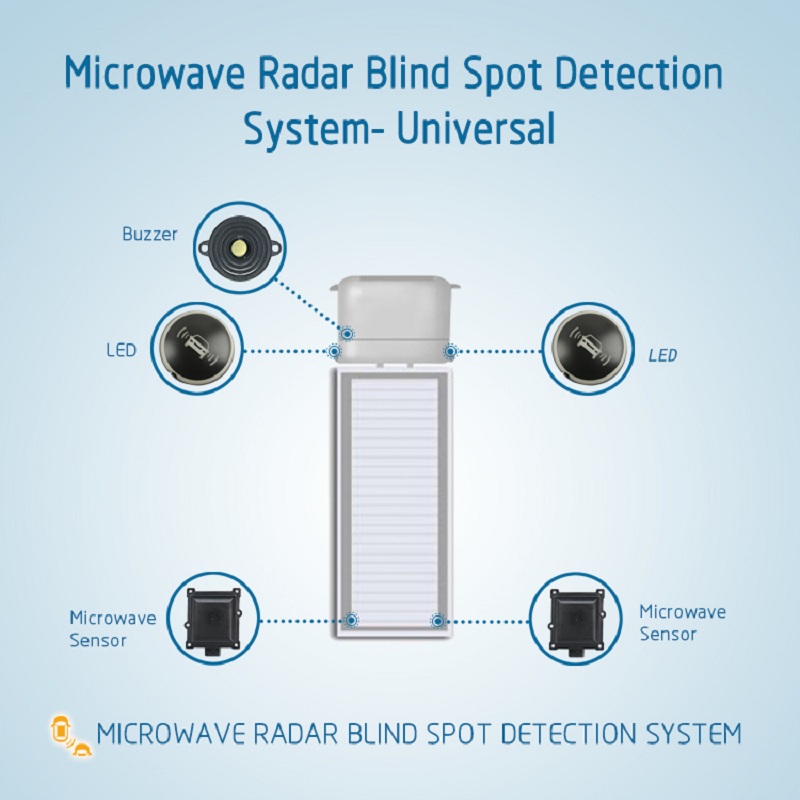

With LED light warning and buzzer sound warning, dual alert assurance
Hidden and non-drilling installation, no impact on vehicle’s appearance
With built-in RCTA detection for parking and reversing vehicle
Vehicle door open warning (DOW) function optional
OE quality standard; extra long-term 3 years warranty
pass EMC & FCC certification testing
77g microwave radar bsd
Work under all kinds of weather and brightness condition
Suitable for both high speed and low speed driving status
Super Wide Detection range: 3x80 meters covering side and rear blind area
With LED light warning and buzzer sound warning, dual alert assurance
Hidden and non-drilling installation, no impact on vehicle’s appearance
With built-in RCTA detection for parking and reversing vehicle
Vehicle door open warning (DOW) function optional
OE quality standard; extra long-term 3 years warranty
pass EMC & FCC certification testing
77g microwave radar bsd
Specifications
| Operating frequency | 76-81GHz |
| Side detection range | 3 meters |
| Rear detection range | 80 meters |
| Horizontal angle | 120º |
| Update target rate | 50Hz |
| Detection range accuracy | 0.36m |
| Detection angle error range | 1º |
| Relative velocity detection error range | ±0.25 m/s |
| Alarm relative speed | When the relative speed of target vehicle vs vehicle is less than 140km/h, the system is working. |
| Detected target minimum speed | Relative speed of target is more than 2.5 km/h. |
| Response time | 50ms |
| Antenna tunnel | 2Tx 4R |
| Antenna transmission output | 12dBm |
| IP Rating | IP67 |
| Operation voltage | 9V–16V (typical 12V) |
| Power consumption | ≤500mA @12VDC |
| Operation temperature | -40℃–+85℃ |
| Storage temperature | -40℃–+95℃ |
Applications
