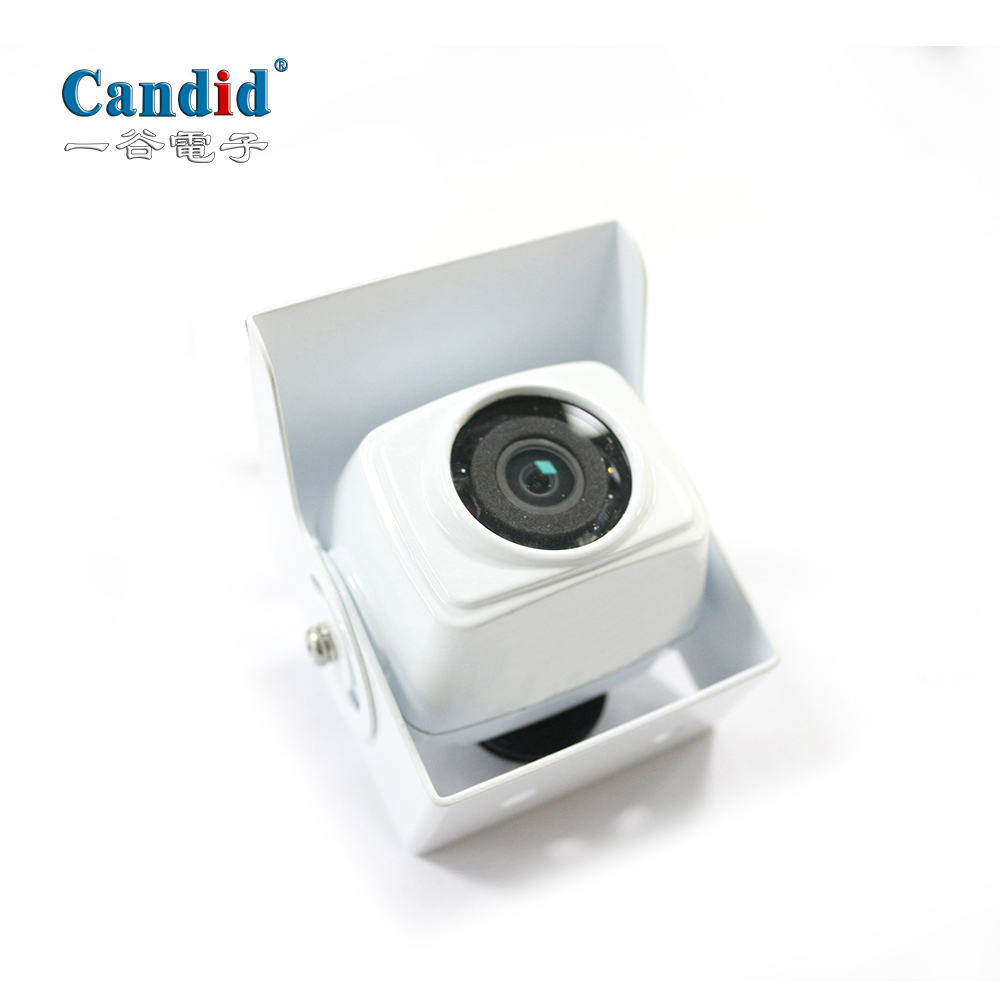

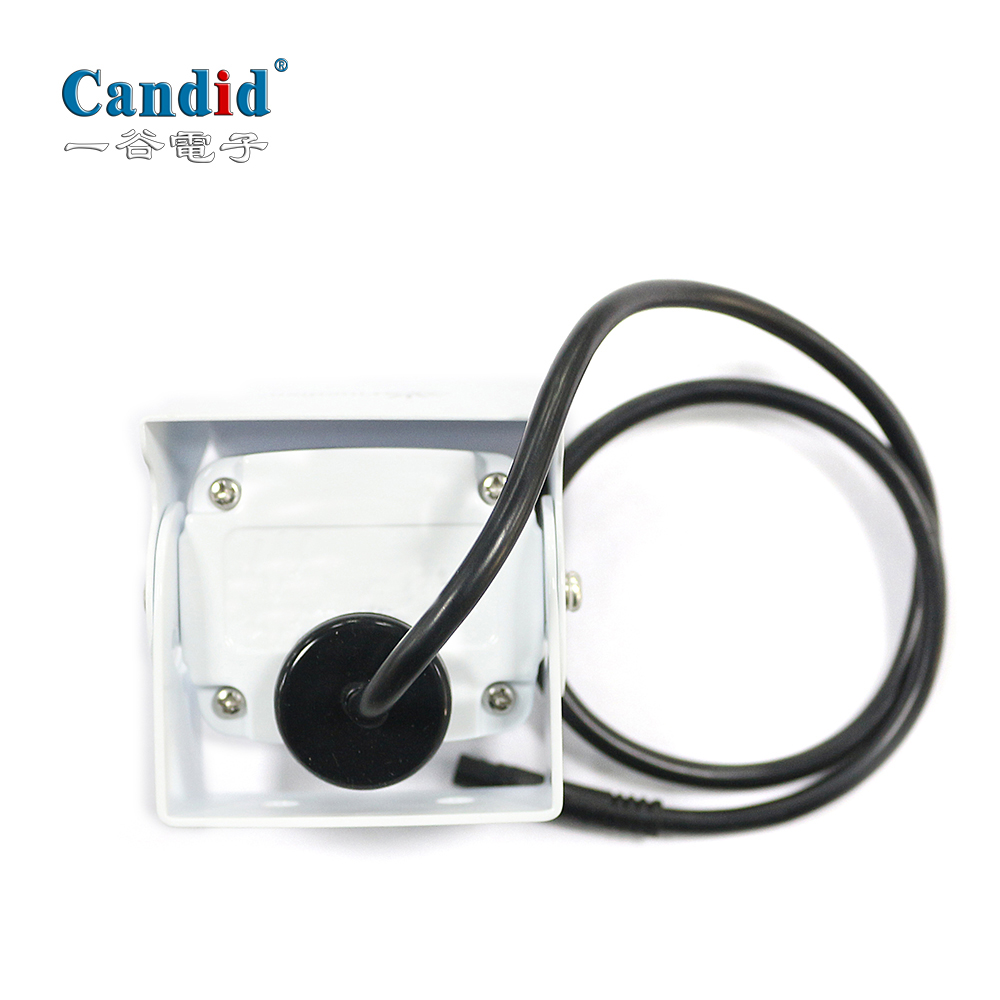

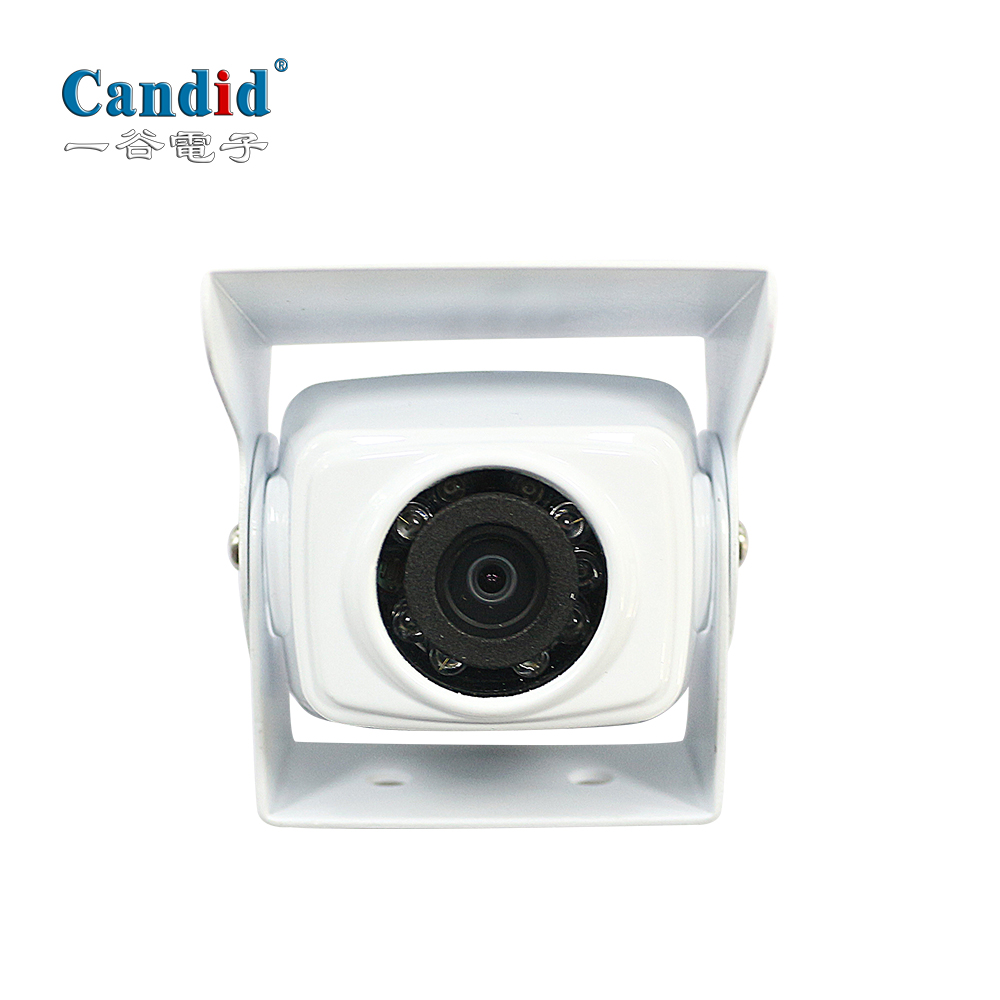

reversing cameras CA-9993

12V infrared waterproof reverse camera parking camera for commercial trucks



Features

1. With digital wide dynamic, strong light suppression.
2. Aluminum Shell,IP68 waterproof structure design.
3.Usable Illumination : 0.1Lux ( Built in 18 IR LED's for Picture Support in the Dark)
4.Compact design,Exquisite appearance.
5.Resolution: 720P/1080P (different sensor chip for your choose AHD CCD CVBS)
6. Housing color optional: Black / White

Specifications

sensor SONYCMOS 225AHD
Image Sensor 1/2.9 inch
Power Consumption        0.684W@ DC12 V
Video Output 1±0.2 Vpp 75Ω
USEFUL PIXELS 1280*720
minimum illumination            0.1Lux
Wide Dynamic 91dB
Resolution ratio 720P
Gamma value 0.45
Lens angle 120 degree
Waterproofing grade IP68
white balance auto
backlight compensation auto
Operation Humidity       85 RH%
Operation Temperature           -20~ +70
Storage Temperature              -40~+85

Applications











product inquiry
commercial vehicle backup cameras
