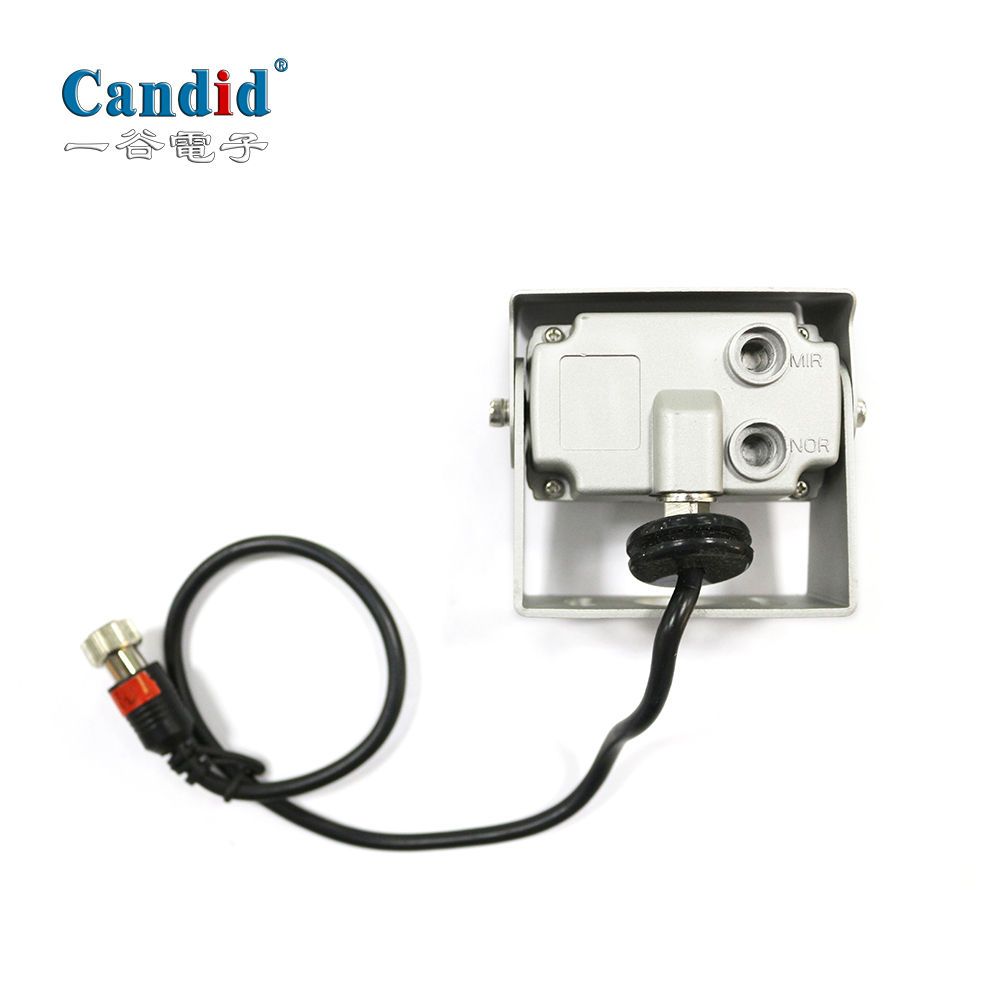

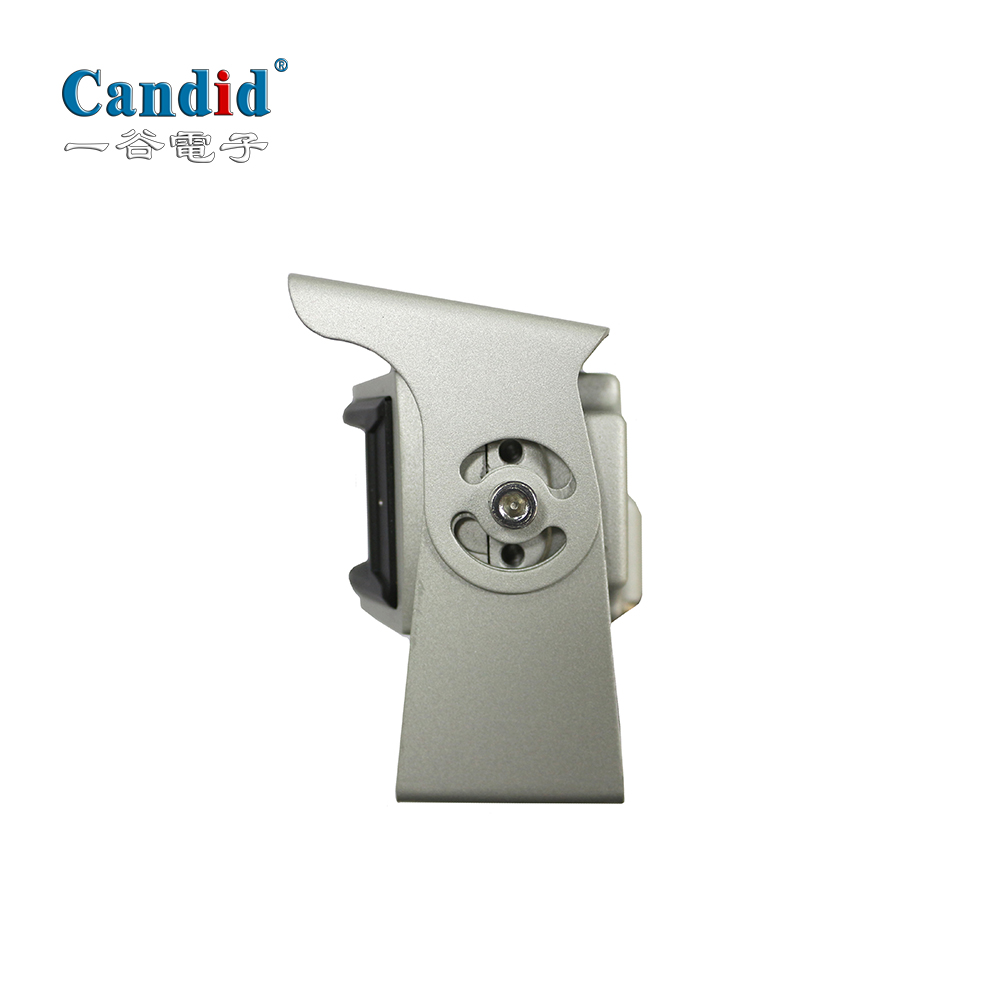

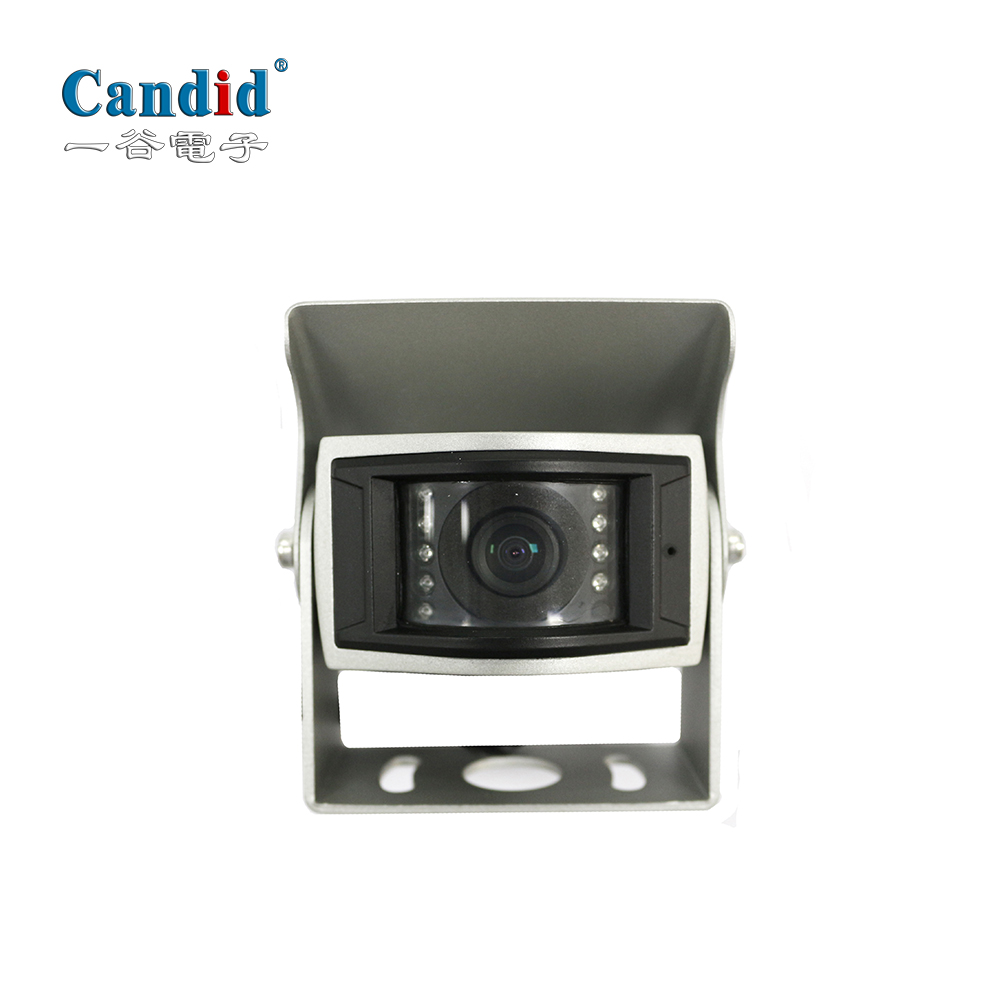

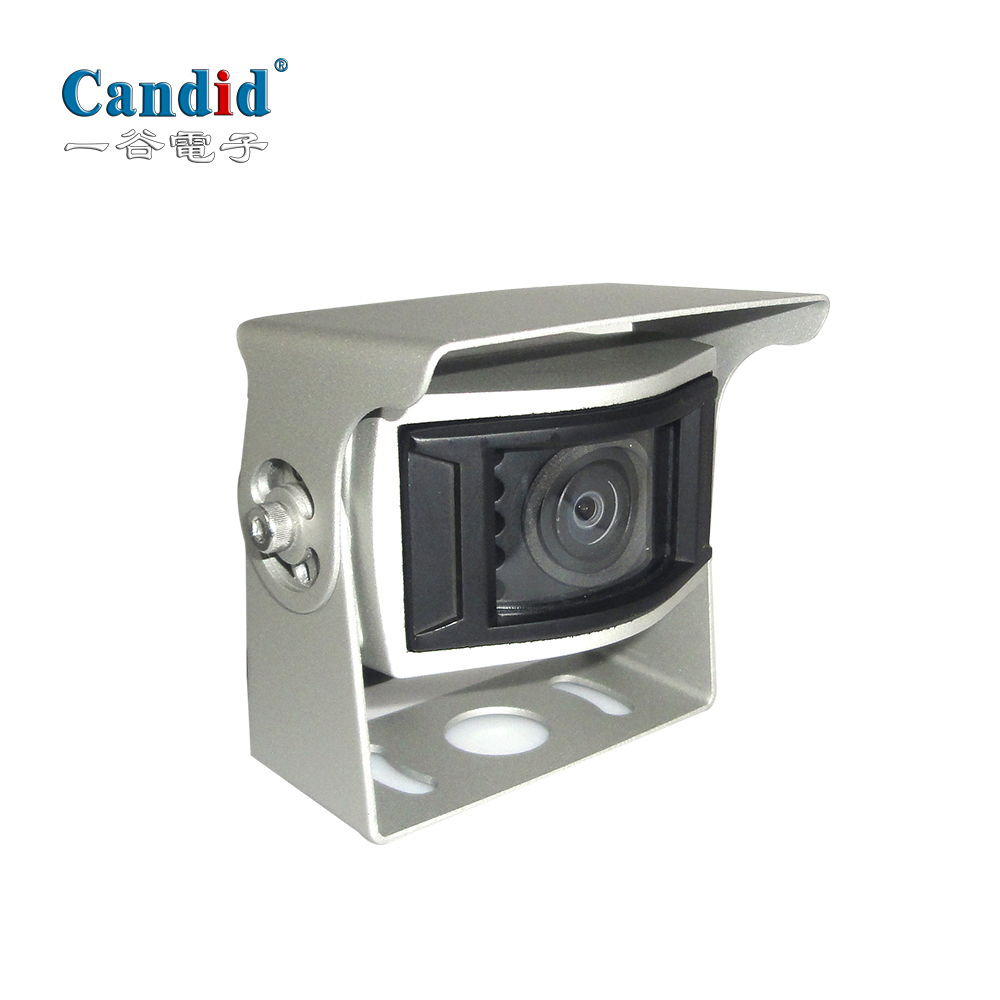

Camera CA-9990

Assistance backup reversing camera CA-9990 suitable for Bus,school bus, truck and other heavy duty vehicles and more commercial vehicles.

Features

  • 9 IR LED, Infrared night vision.
  • Different sensor for you to choose( AHD/CCD/CVBS)
  • 1080P high resolution AHD image
  • 6G High-definition glass lens.
  • Aluminium alloy housing.
  • Adjustable view angle



Specifications

sensor SONY IMX307 (AHD)
Image Sensor 1/2.8 inch
Power Consumption        DC12V(7.5-16V)
Video Output 1.3±0.2Vpp 75Ω
USEFUL PIXELS 1280*1080
minimum illumination            0.01Lux
Wide Dynamic 95dB
Resolution ratio 1080P
Gamma value 0.45
Lens angle 120 degree
Waterproofing grade IP68
white balance auto
backlight compensation auto
Operation Humidity       85 RH%
Operation Temperature           -20~ +70
Storage Temperature              -40~+85
