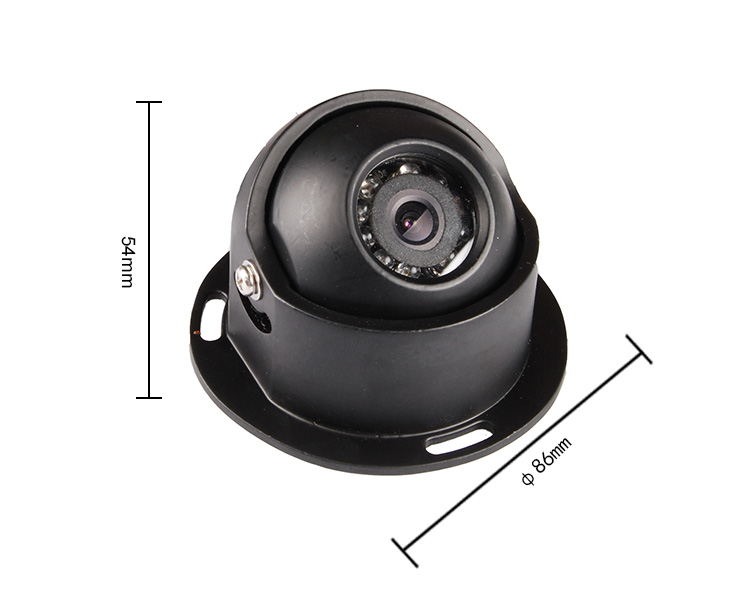

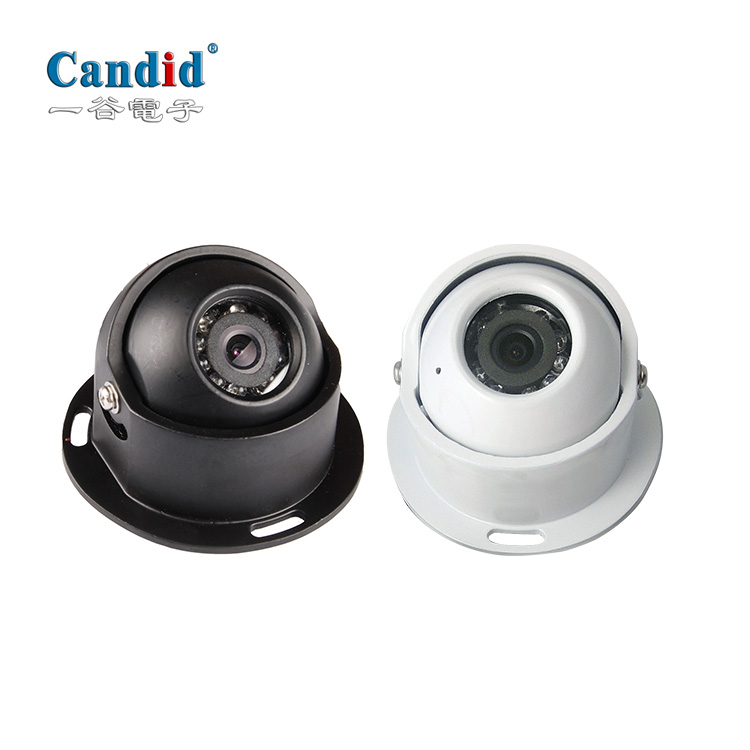

Commercial Cameras CA-9307

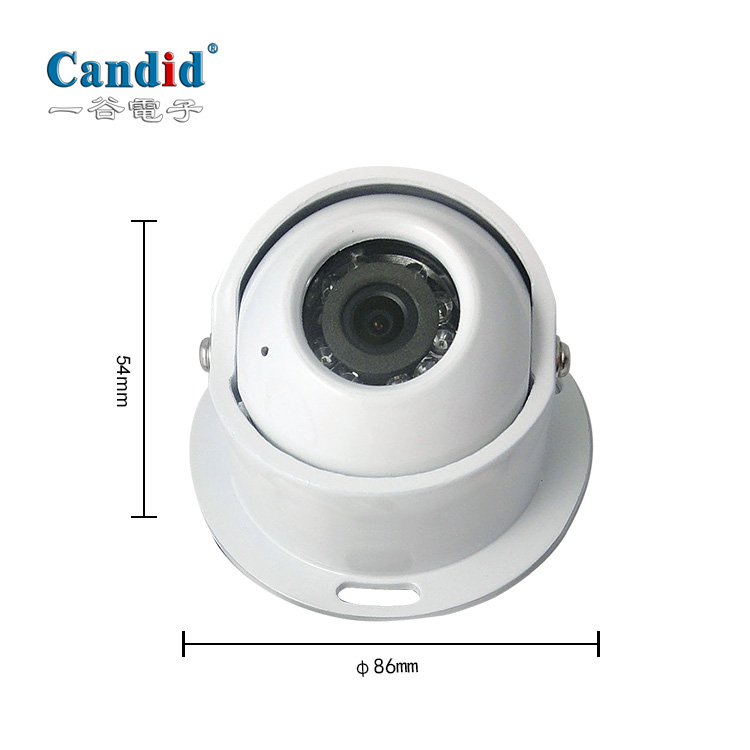

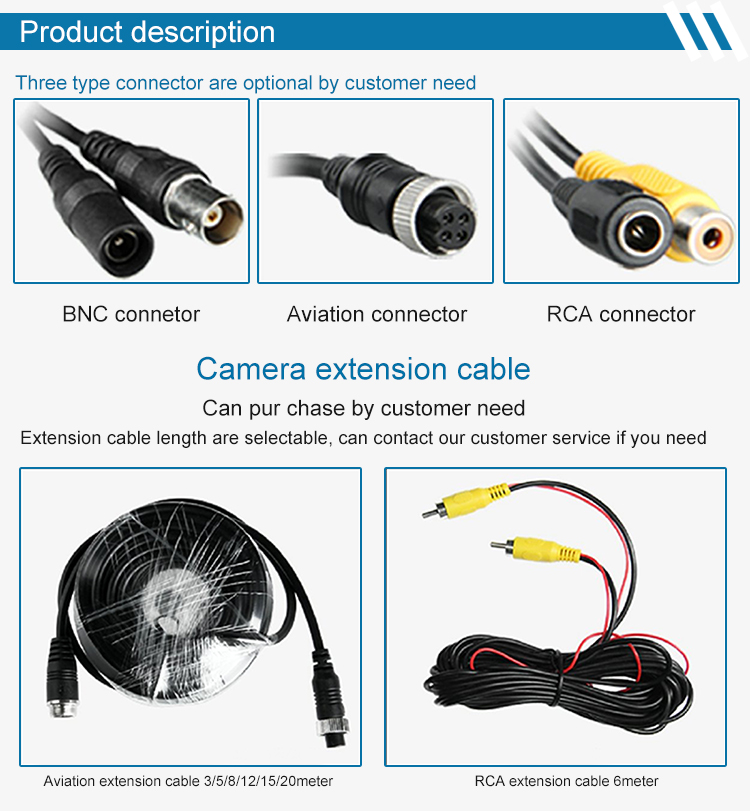

Candid company AHD side view dome camera all glass lens with 4pin connector for truck bus.
Features
1. 9 IR LED, HD night vision.
2. 6 layer full glass HD lens to ensure clear image.
3. Aluminium alloy housing, with sun hat shell.

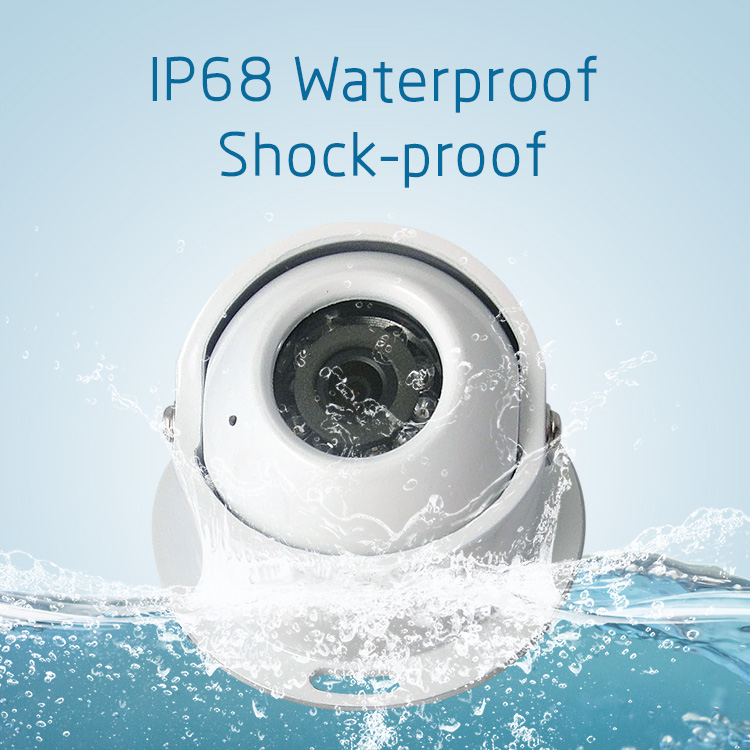

4. IP68 waterproof design.
5. different sensor chip to choose (CCD/AHD 720P/1080P), support customization.
2. 6 layer full glass HD lens to ensure clear image.
3. Aluminium alloy housing, with sun hat shell.
4. IP68 waterproof design.
5. different sensor chip to choose (CCD/AHD 720P/1080P), support customization.
Specifications
sensor | SONY IMX307 (AHD) |
Image Sensor | 1/2.8 inch |
Power Consumption | DC12V(7.5-16V) |
Video Output | 1.3±0.2Vpp 75Ω |
USEFUL PIXELS | 1280*1080 |
minimum illumination | 0.01Lux |
Wide Dynamic | 95dB |
Resolution ratio | 1080P |
Gamma value | 0.45 |

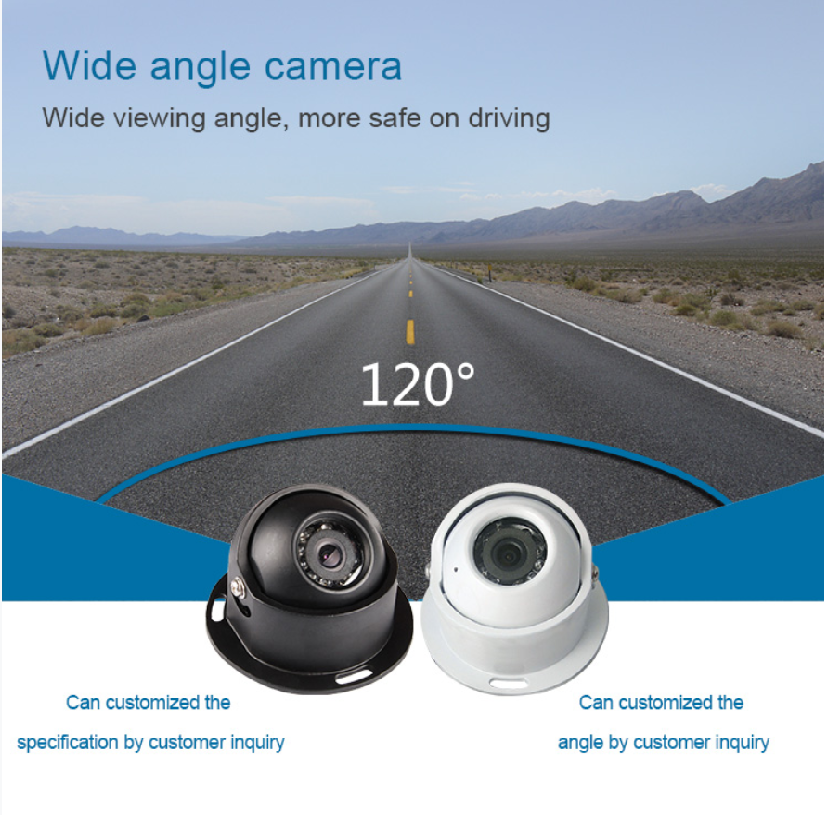

Lens angle | 120 degree |
Waterproofing grade | IP68 |
white balance | auto |
backlight compensation | auto |
Operation Humidity | 85 RH% |
Operation Temperature | -20℃~ +70℃ |
Storage Temperature | -40℃~+85℃ |

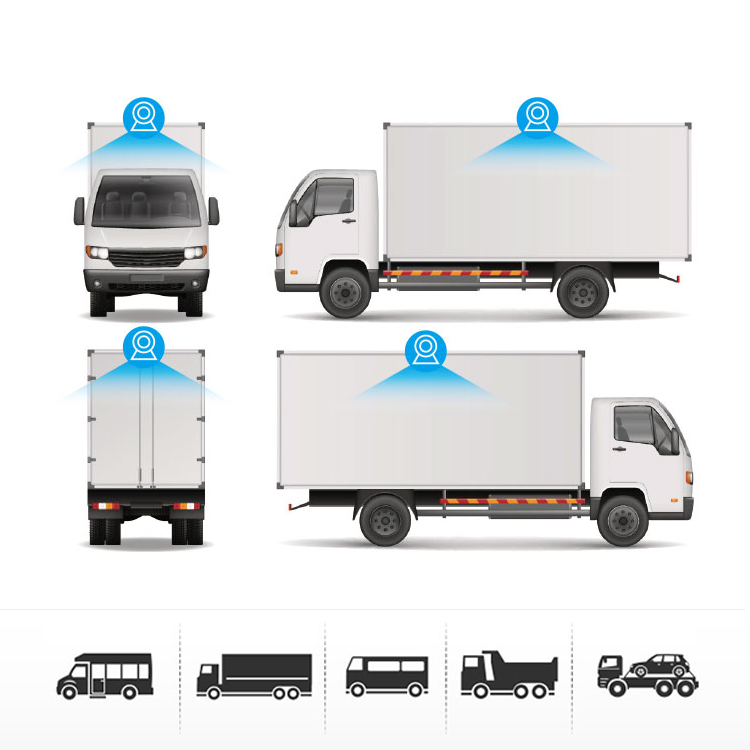

Applications
![](http://v4-upload.goalsites.com/625/1612803453_Commercial Truck Side View Camera System CA-307 (4).jpg)
![](http://v4-upload.goalsites.com/625/1612803750_Commercial Truck Side View Camera System CA-307 (8777).png)
![](http://v4-upload.goalsites.com/625/1612803532_Commercial Truck Side View Camera System CA-307 (3).jpg)
Application (can be used with different monitor)
![](http://v4-upload.goalsites.com/625/1612803611_Commercial Truck Side View Camera System CA-307 (9).png)
![](http://v4-upload.goalsites.com/625/1612803811_Commercial Truck Side View Camera System CA-307 (3).png)
![](http://v4-upload.goalsites.com/625/1612803840_Commercial Truck Side View Camera System CA-307 (11).jpg)
![](http://v4-upload.goalsites.com/625/1612803864_Commercial Truck Side View Camera System CA-307 (8).png)
![](http://v4-upload.goalsites.com/625/1612803883_Commercial Truck Side View Camera System CA-307 (6).png)
![](http://v4-upload.goalsites.com/625/1612803904_Commercial Truck Side View Camera System CA-307 (5).png)
