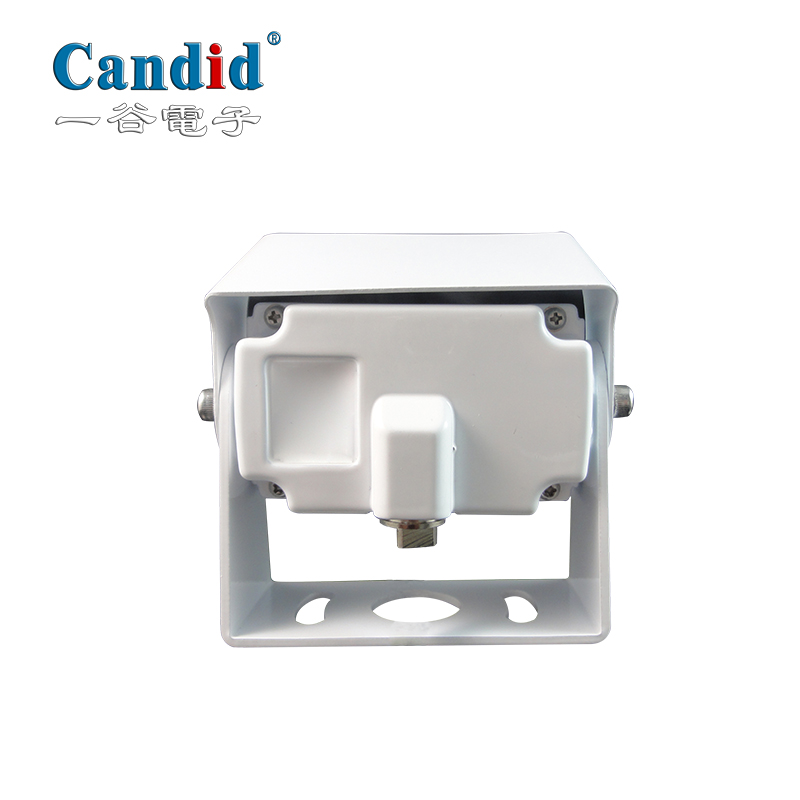

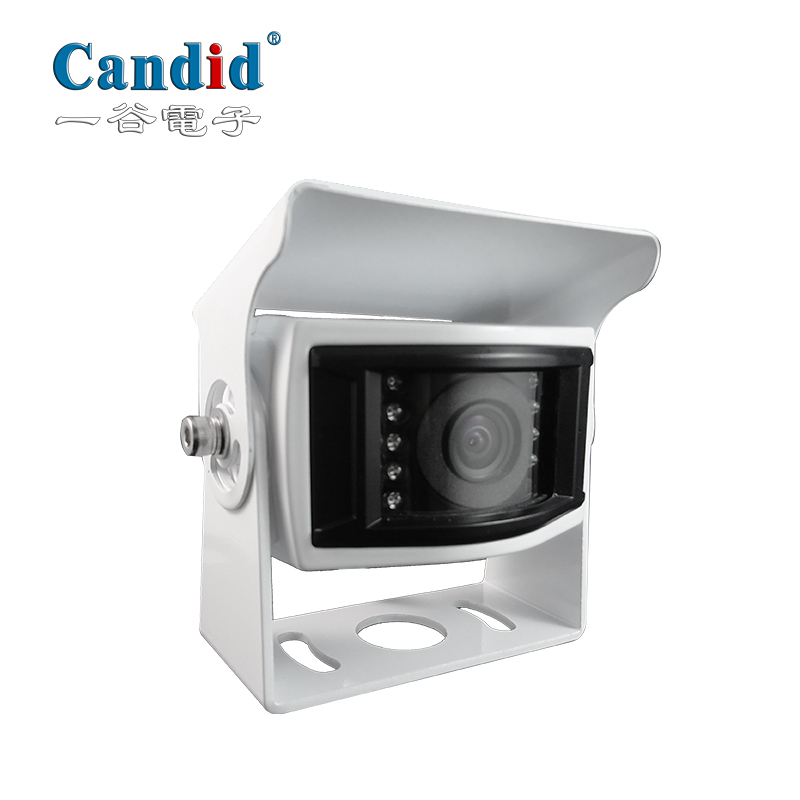

Camera CA-9991
Assistance backup reversing camera CA-9991 suitable for Bus,school bus, truck and other heavy duty vehicles and more commercial vehicles.
.png)
.png)
.png)
.png?imageView2/1/w/116/w/74)
.png?imageView2/1/w/116/w/74)
.png?imageView2/1/w/116/w/74)
Features
- 9 IR LED, Infrared night vision.
- Different sensor for you to choose( AHD/CCD/CVBS)
- 1080P high resolution AHD image
- 6G High-definition glass lens.
- Aluminium alloy housing.
-
Adjustable view angle
Specifications
| sensor | AHD/CCD/CVBS |
| Image Sensor | 1/2.8 inch |
| Power Consumption | DC12V(7.5-16V) |
| Video Output | 1.3±0.2Vpp 75Ω |
| USEFUL PIXELS | 1280*1080 |
| Minimun illumination | 0.01Lux |
| Wide Dynamic | 95dB |
| Resolution ratio | 1080P |
| Gamma value | 0.45 |
| Lens angle | 120 degree |
| Waterproofing grade | IP68 |
| white balance | auto |
| backlight compensation | auto |
| Operation Humidity | 85 RH% |
| Operation Temperature | -20℃~ +70℃ |
| Storage Temperature | -40℃~+85℃ |
Applications
.jpg)
Accessories
.jpg)
