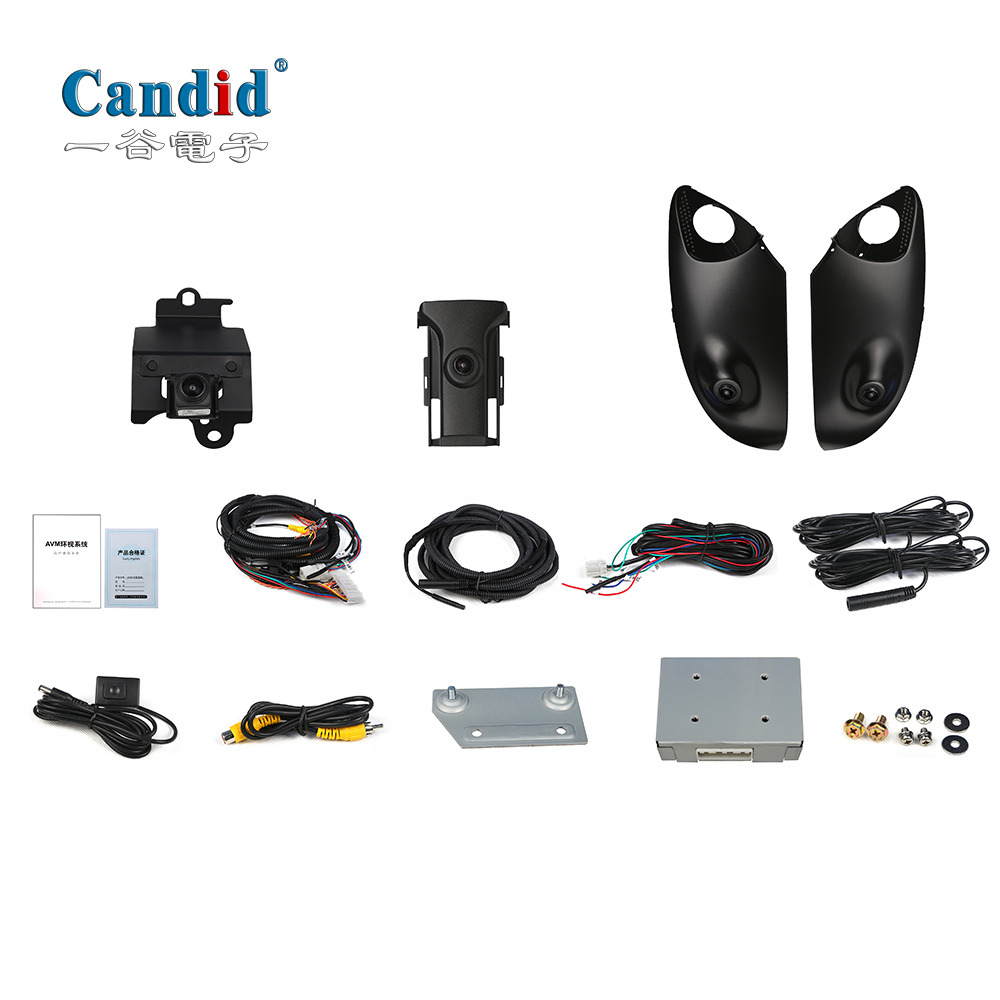

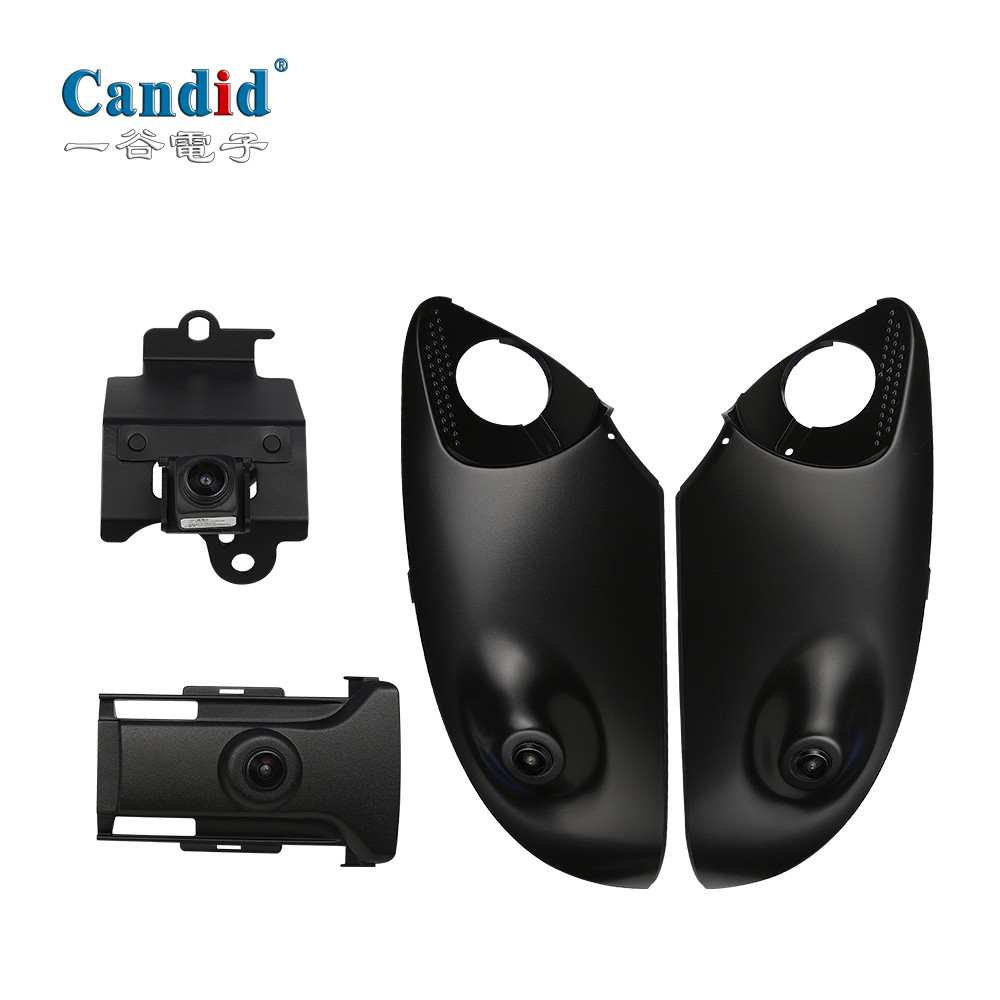

360 around view monitoring system for Toyota Prado

This AVM system features a customized around view monitoring system for Toyota Prado, make your driving and parking safer and more easily.

Features

AHD 720P/1080P high resolution images output
Customization designed and perfectly fits for Toyota Prado, no impact on vehicle's appearance after installation
Waterproof level: IP68
Auto calibration
With four wide view angle cameras, show panoramic view around the vehicle without any blind spot
Super starry night vision function
OE quality standard, extra long-term warranty of 3 years

Specifications

Sensor SONY IMX225 (AHD)
TV  Mode  PAL/NTSC
Image Sensor 1/2.8 inch
Operation voltage range DC12V(7.5-16V)
Working Current  94mA±10mA
Power Consumption        1.128W DC12 V
Video Output 1.3±0.2Vpp 75Ω
USEFUL PIXELS 1920*1080
Minimum Illumination             0.01Lux
Wide Dynamic 95dB
Signal to Noise ratio            46dB
Resolution ratio 720P/1080P
Gamma value 0.45
Lens angle 190 degrees
Operation Humidity       85 RH%
Operation Temperature           -40℃~ +85℃
Storage Temperature              -40℃~+85℃
Special function  Super starry night vision

Applications
