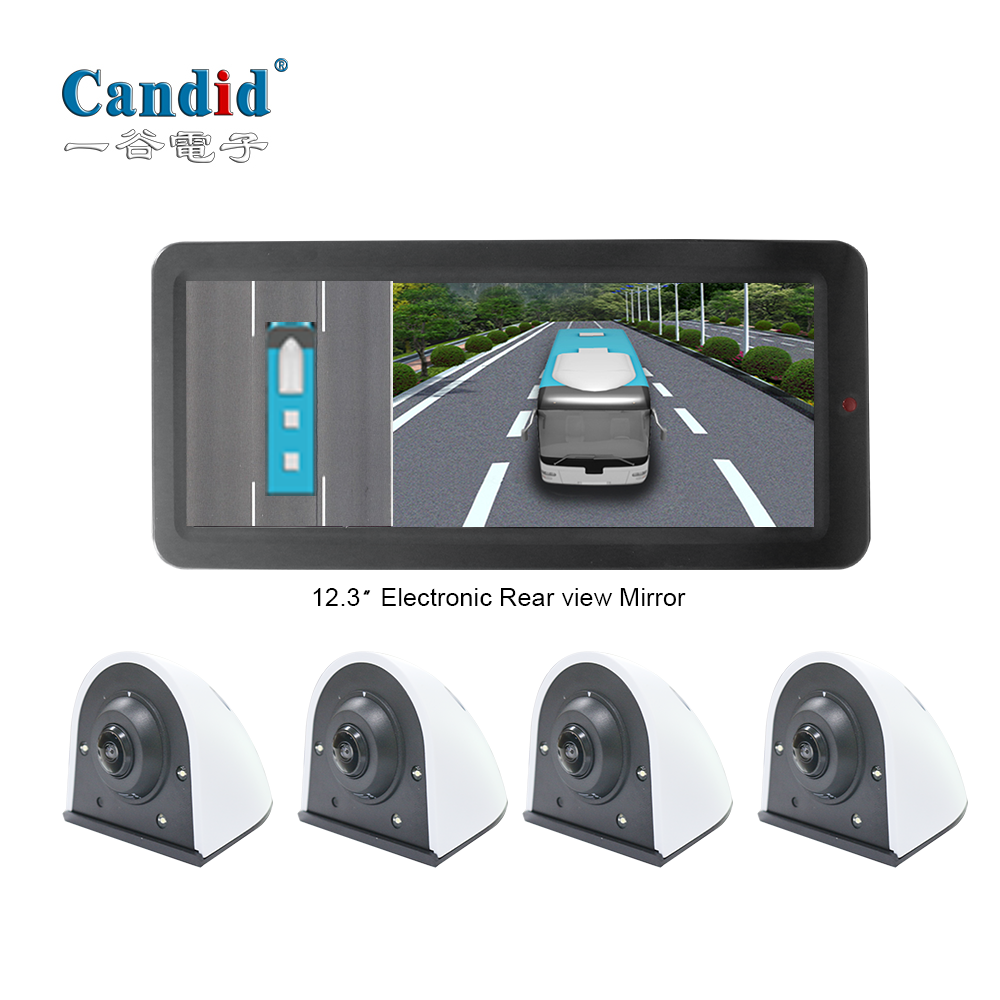

360 around view systems manufacturers for bus and truck
This AVM system is the universal 360 around view systems manufacturers for bus and truck, which can make your driving and parking safer and more easily.
Features
AHD 720P/1080P high resolution images output |

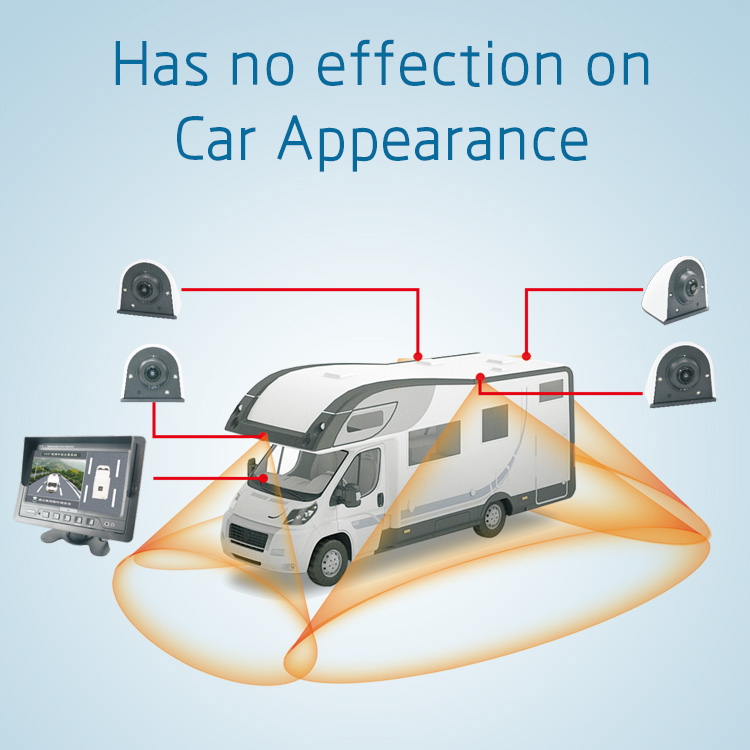

Customization designed and perfectly matched the bus and truck, no impact on vehicle's appearance after installation |

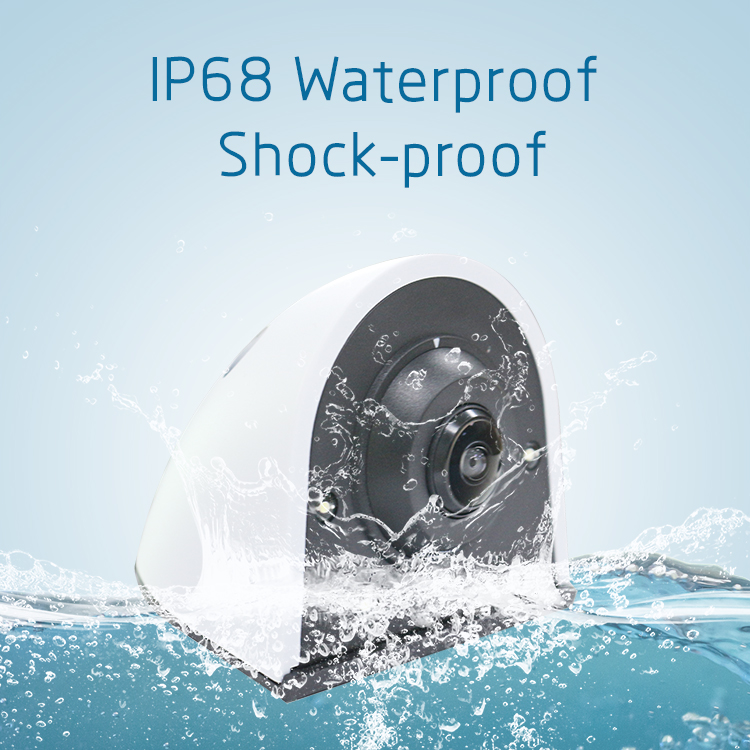

Waterproof level: IP68 |
Auto calibration |

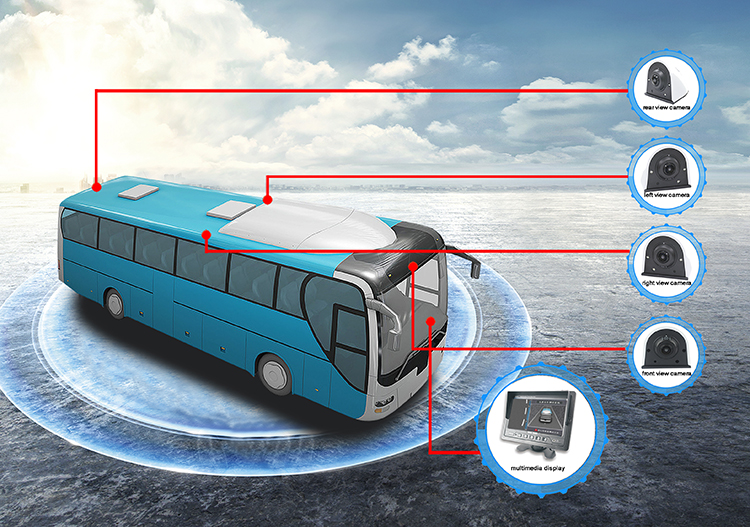

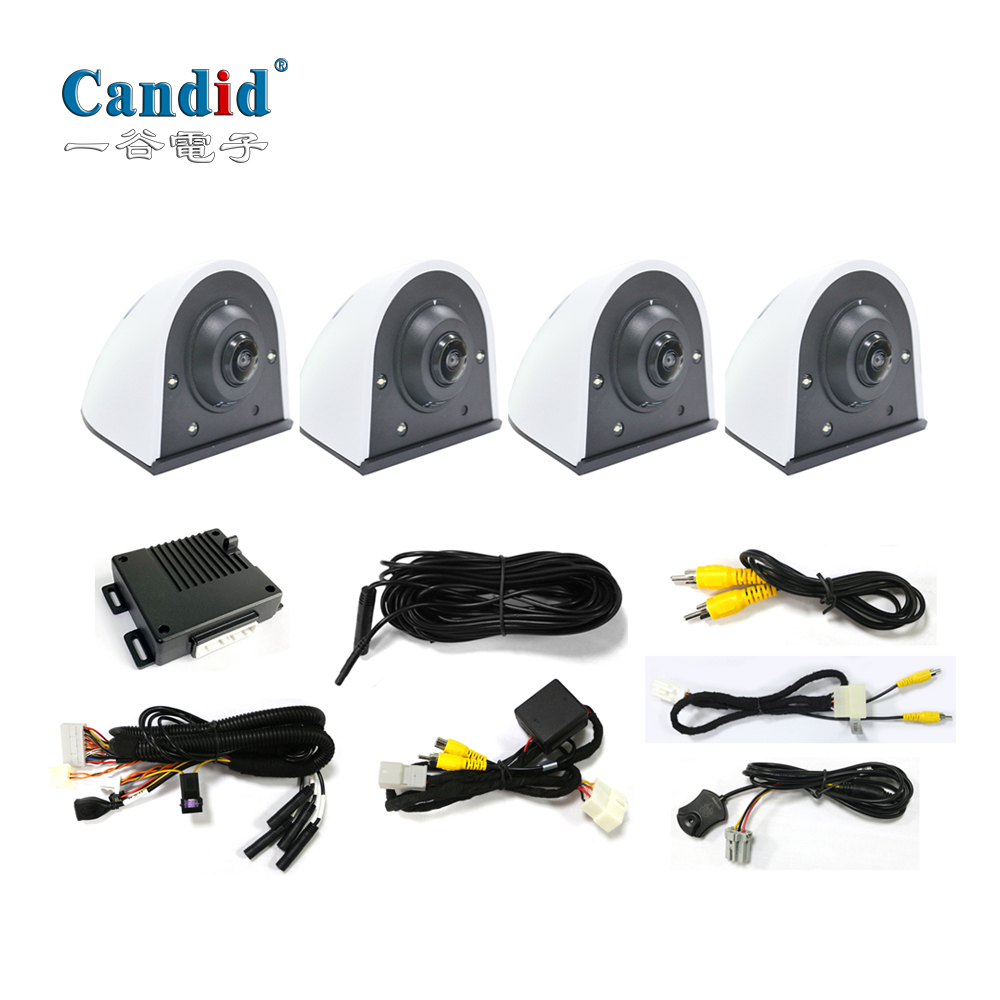

With four wide view angle cameras, show panoramic view around the vehicle without any blind spot |
Super starry night vision function |
If you have the requirement of the camera, we can provide the customized service |
Specifications
Sensor | SONY IMX225 (AHD) |
TV Mode | PAL/NTSC |
Image Sensor | 1/2.8 inch |
Operation voltage range | DC12V(7.5-16V) |
Working Current | 94mA±10mA |
Power Consumption | 1.128W DC12 V |
Video Output | 1.3±0.2Vpp 75Ω |
USEFUL PIXELS | 1920*1080 |
Minimum Illumination | 0.01Lux |
Wide Dynamic | 95dB |
Signal to Noise ratio | 46dB |
Resolution ratio | 720P/1080P |
Gamma value | 0.45 |
Lens angle | 190 degrees |
Operation Humidity | 85 RH% |
Operation Temperature | -40℃~ +85℃ |
Storage Temperature | -40℃~+85℃ |
Special function | Super starry night vision |
Applications
