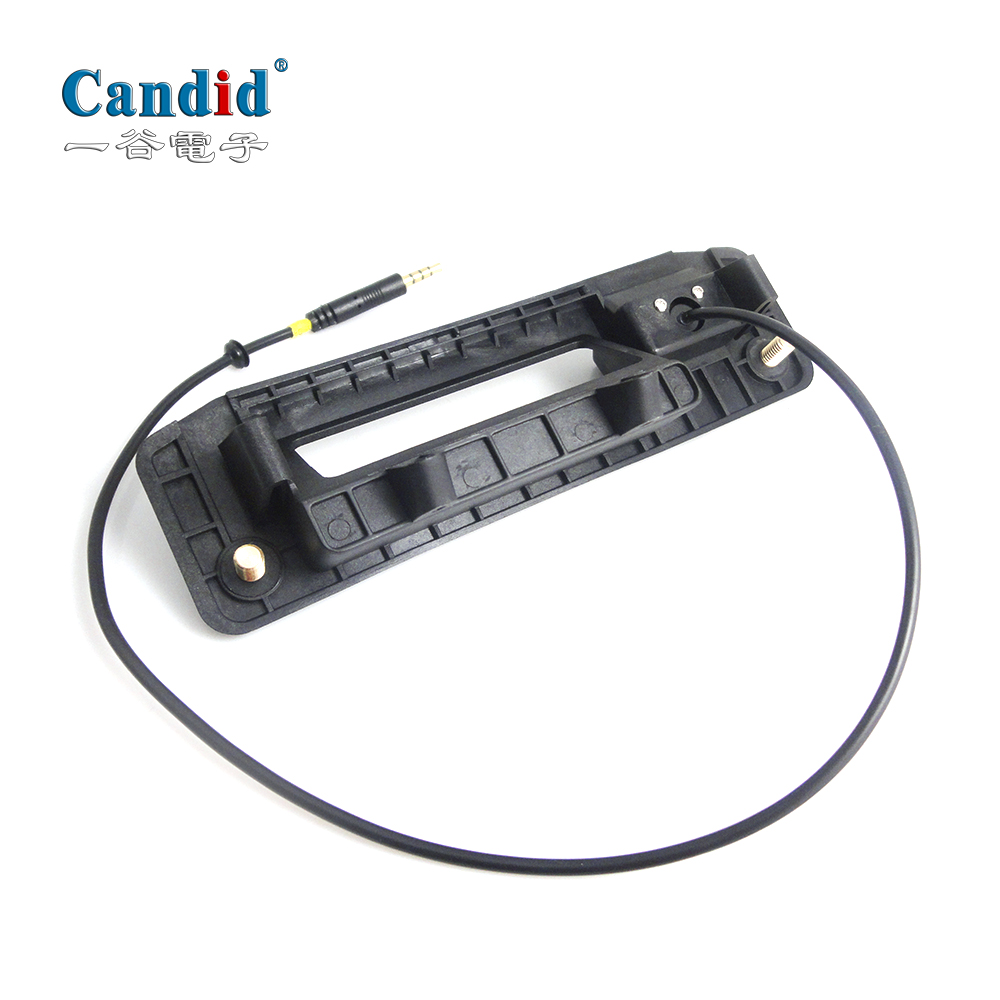

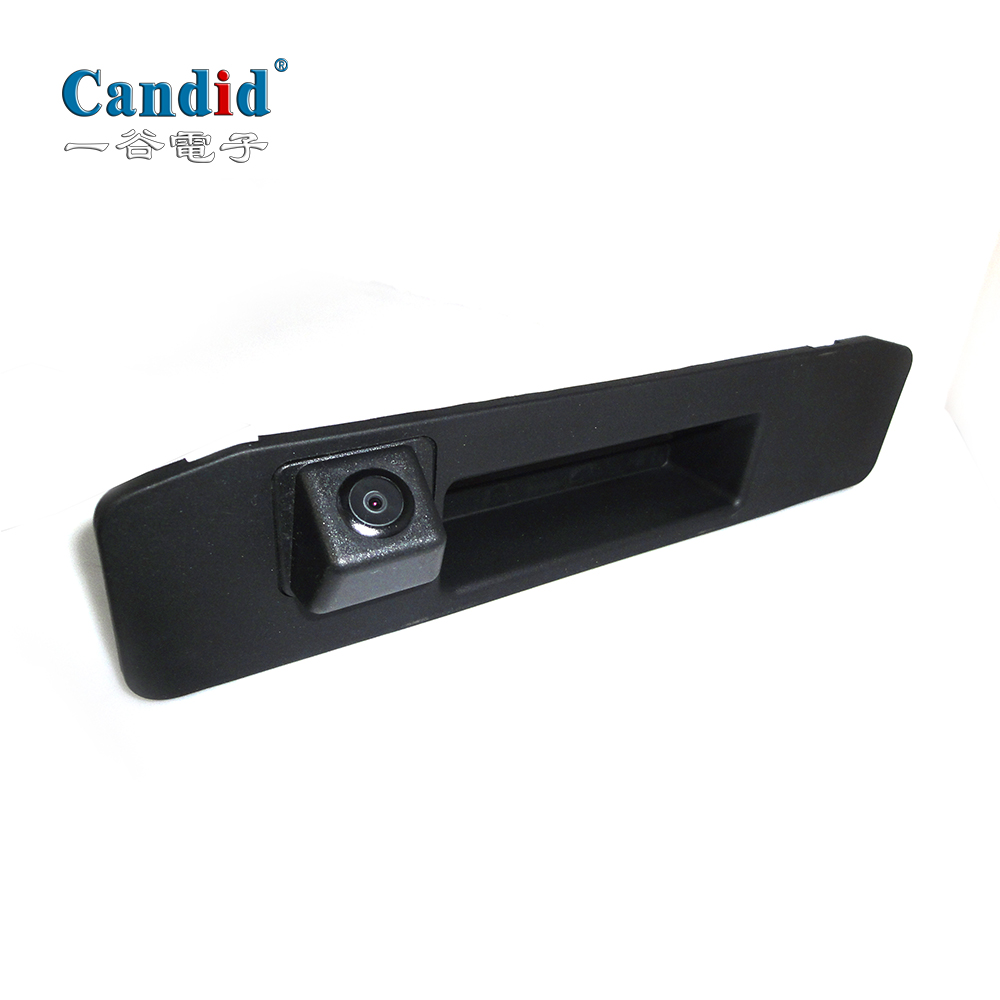

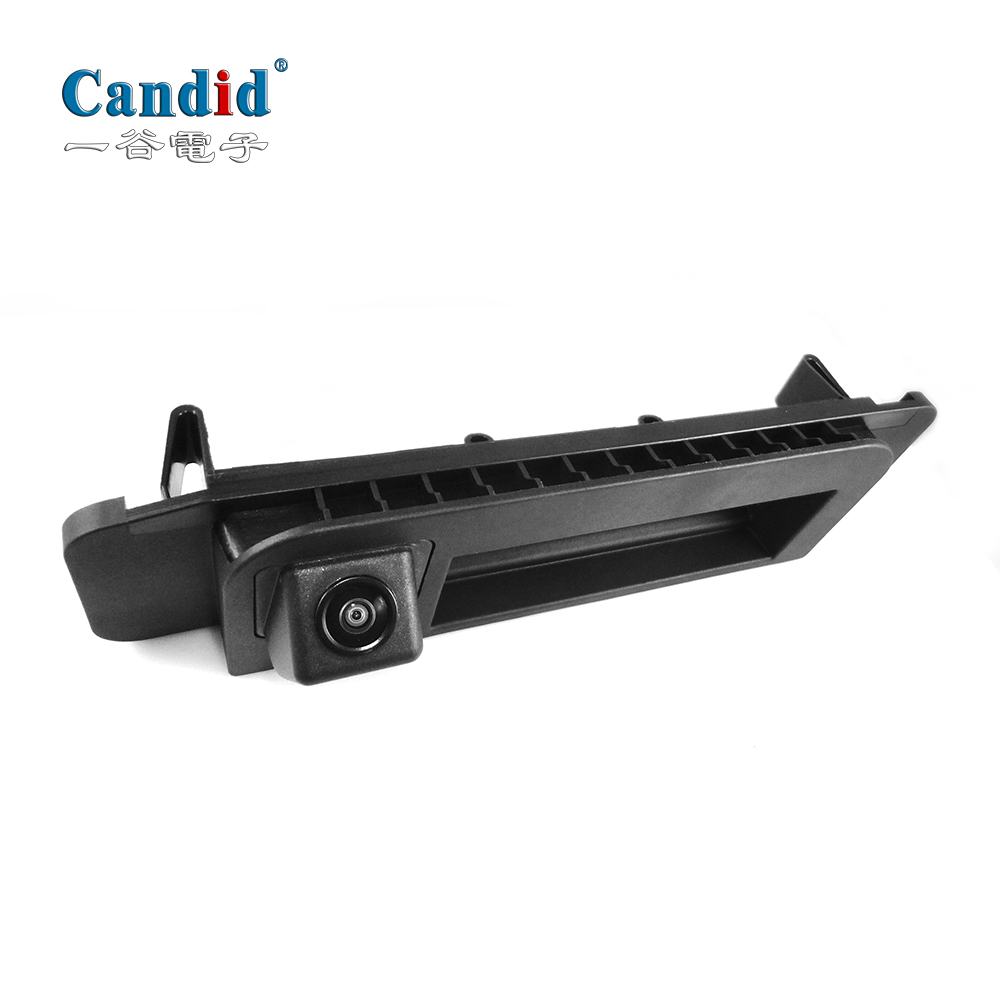

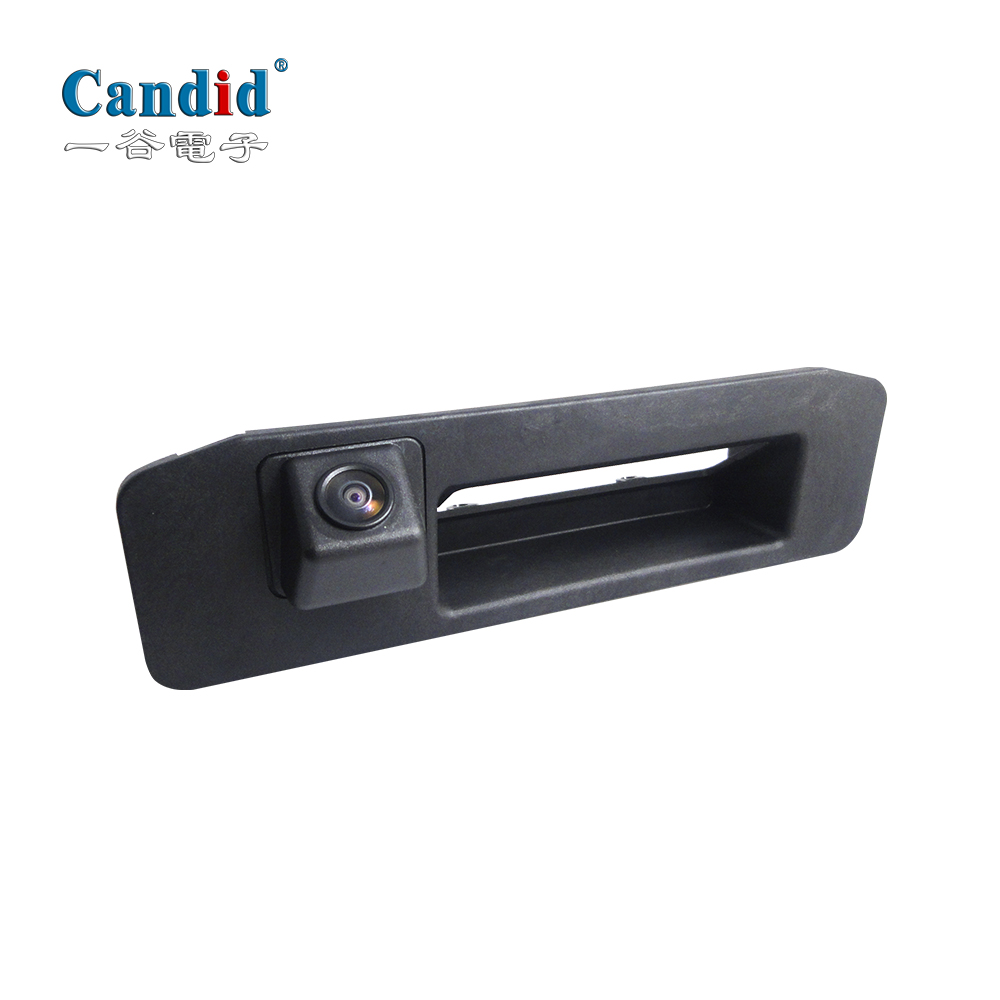

Candid/OEM Vehicle Customized Trunk Handle Camera for Mercedes-Benz CA-709

Features:
This rear view customized tailgate camera is for Mercedes-Benz 13 GLK, it's with OE quality standard & 1080P high definition image output & IP69K waterproof level & night vision function, it can fits for RV perfectly.

Features

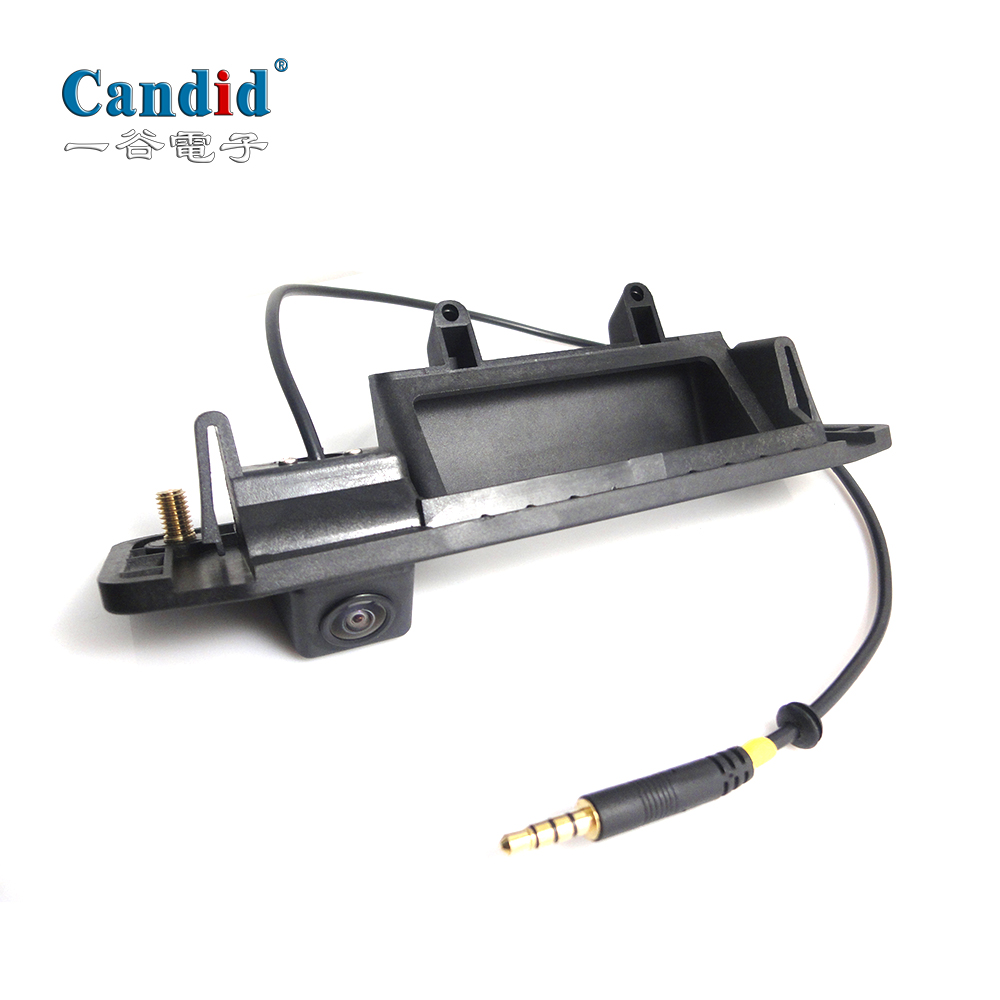

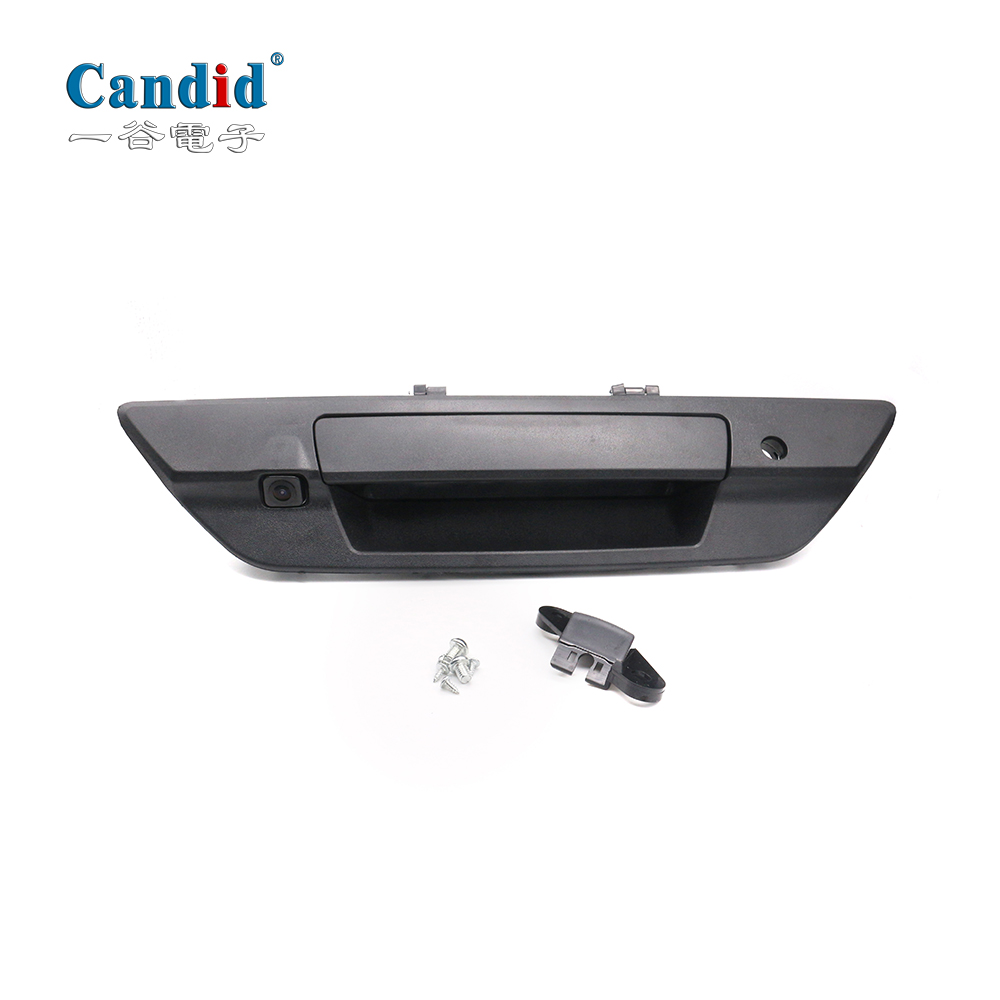

Tailgate trunk handle camera for specified car model
6 layors of glass lens materials
1/4" SONY CCD sensor

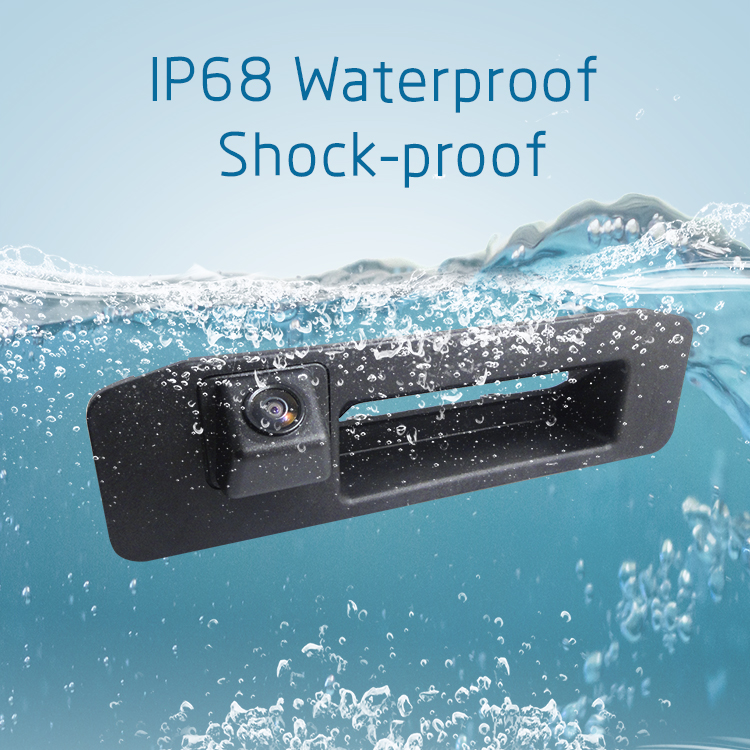

waterproof level: IP69K
ultra low light performance
wide viewing angle: 120 degrees

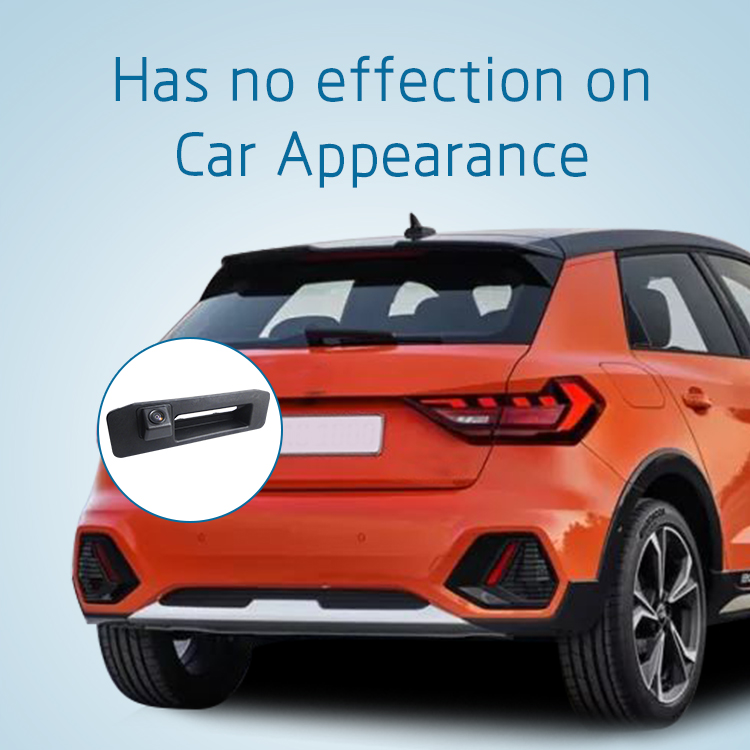

customized design for Mercedes-Benz 13 GLK, easy installation and no impact on vehicle's appearance
Mirror/Non-mirror image optional
PAL/NTSC optional
commercial vehicle reverse cameras

Specifications


Image sensor SONY CCD
TV  Mode   PAL/NTSC
Image Sensor 1/4" SONY CCD
Operation voltage range DC12V(10-16V)
working current 63mA±10mA
Power Consumption                                               0.72W@ DC12 V
Video Output 1.0±0.2Vpp 75Ω
Pixels
USEFUL PIXELS 768*494
Minimum lllumination 0.3 Lux
Wide Dynamic 80dB
Signal to Noise ratio 52dB
resolution ratio 3700000 pixels
Gamma value 0.45
Lens angle 120 degrees
Shutter Speed 1/60~1/100,000(second)
IRIS Method Auto
waterproof level IP69
white balance Auto
AGC Auto
Backlight compensation Auto
Operation Humidity 85 RH%
Operation Temperature -20℃~ +70℃
Storage Temperature -40℃~+85℃

Applications
